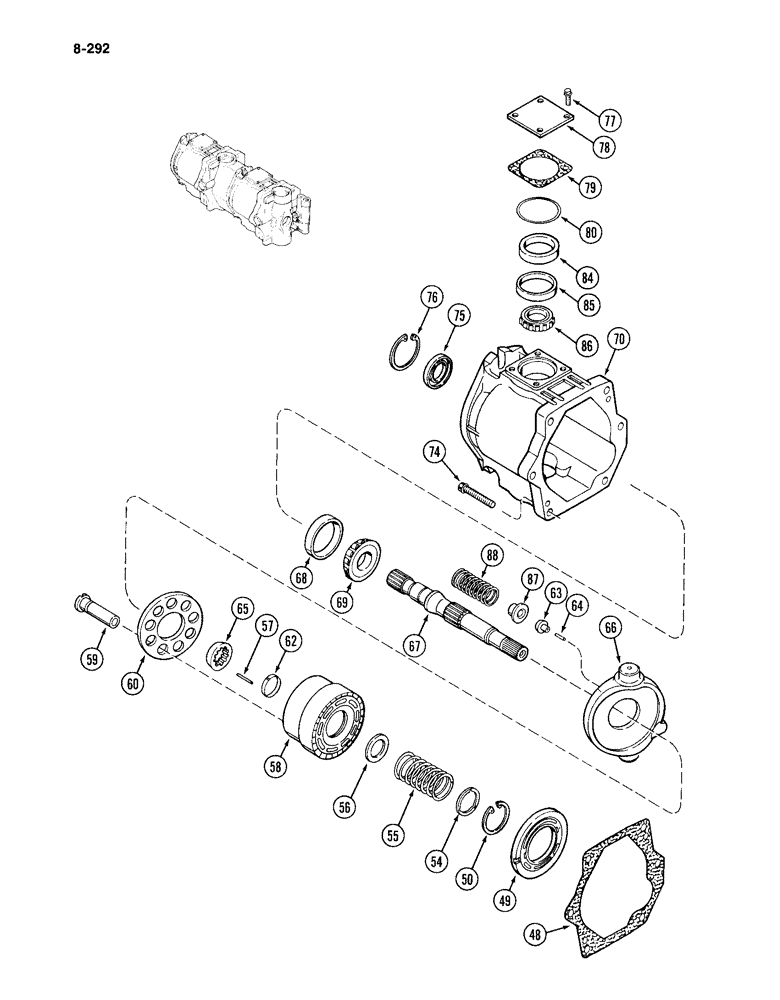

Запчасти Case IH 4994 (8-292) - DUAL PISTON PUMP, REAR SECTION (CONTINUED) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A164014
PUMP
ASSEMBLY - hydraulic dual piston (Continued from Figure 8-290), Includes: Ref. 48 - 88 and 1 - 47 on Figure 8-290
1шт.
48
A47280
GASKET,0.53mm Thk
-, Serial Range: block-housing
1шт.
49
A47635
PLATE
- wafer
1шт.
50
NLS
NO LONGER SERVICED
Ring, Snap, , piston 1.625", Int, #162
1шт.
54
A47300
SPRING WASHER
WASHER - spring, outer
1шт.
55
A47298
SPRING
- cylinder block
1шт.
56
A47299
WASHER
- spring, inner
1шт.
57
A47296
PIN
- cylinder block
3шт.
58
A47295
BLOCK
- cylinder
1шт.
59
A47334
PACKAGE
PISTON KIT - pump (Included 9 pistons)
1шт.
60
A47292
PLATE
- shoe, piston
1шт.
62
A47297
SNAP RING,7.11mm Thk, Int
- pin
1шт.
63
A47283
SEAT
- piston
1шт.
64
138-88
LOCK PIN,3/16" x 1/2", Slotted
PIN, 3/16" x 1/2", Slotted
1шт.
65
A47293
WASHER
- spherical
1шт.
66
A47284
YOKE
- swing
1шт.
67
N8297
SHAFT
- pump
1шт.
68
D52595
BAR
CUP - bearing
1шт.
69
A31272
ROLLER BEARING,1" ID x 0.8125"
CONE - bearing
1шт.
70
A47278
HOUSING
- piston pump
1шт.
74
166-47
12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8
SCREW - flanged 12 point cap, 3/8 NC x 1-1/2 inch
6шт.
75
A47480
SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk
- oil, shaft
1шт.
76
A49490
CIRCLIP
RING - snap, seal
1шт.
77
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
8шт.
78
A47288
COVER
- yoke bearing
2шт.
A47287
KIT
SHIM KIT - yoke bearing, Includes: Ref. 79
1шт.
79
NSS
NOT SOLD SEPARAT
SHIM - bearing, 0.003 inch (0.76 mm) (3 in kit)
1шт.
79
NSS
NOT SOLD SEPARAT
SHIM - bearing, 0.005 inch (0.127 mm) (2 in kit)
1шт.
79
NSS
NOT SOLD SEPARAT
SHIM - bearing, 0.010 inch (0.254 mm) (2 in kit)
1шт.
80
S5730
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
- yoke cover
2шт.
84
A47286
SPACER
- yoke bearing
2шт.
85
D29267
BEARING CUP,1.98" OD x 0.42"
CUP - bearing
2шт.
86
D53168
TAPERED BEARING
CONE - bearing
2шт.
87
A47282
PLUG
SEAT - piston spring
1шт.
88
A47281
SPRING
- piston
1шт.
Выбрано товаров: 35
