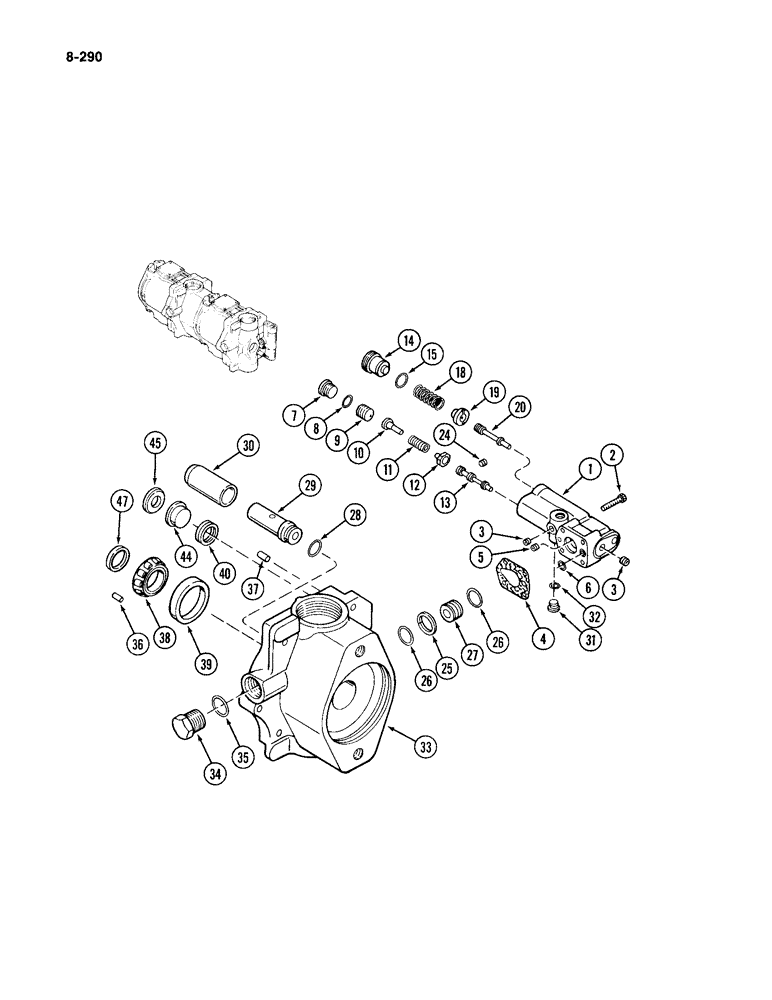

Запчасти Case IH 4994 (8-290) - DUAL PISTON PUMP, REAR SECTION (08) - HYDRAULICS

A164014

PUMP

ASSEMBLY - hydraulic dual piston (Continued from Figure 8-288), Includes: Ref. 1 - 47 and 48 - 88 on Figure 8-292

1шт.

1

A49509

PUMP

COMPENSATOR ASSEMBLY - pump, Includes: Ref. 2 - 32

1шт.

2

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - hex socket head, No. 10 NC x 1-1/4 inch

4шт.

3

221-850

PLUG,Hex Soc, 1/16"-27

- socket hex pipe, 1/16 inch PT

2шт.

4

A49436

GASKET

- mounting

1шт.

5

A47645

PLUG

- set screw, self locking

1шт.

6

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- compensator

1шт.

7

A49437

PLUG

- socket hex, load

1шт.

8

A49435

O-RING

- plug (Replaces A49438)

1шт.

9

A49440

SET SCREW,Lock

- set

1шт.

10

A49442

SEAT

- load spring, outer

1шт.

11

A49439

SPRING

- load sensing

1шт.

12

A49441

SEAT

- load spring, inner

1шт.

13

A47321

SPOOL

- load sensing

1шт.

14

A47320

PLUG

- limiter

1шт.

15

A65918

O-RING,0.551" ID x 0.691" OD

- spool plug

1шт.

18

A47318

SPRING

- pressure

1шт.

19

A47317

PLUG

SEAT - spring

1шт.

20

A47316

SPOOL

- limiter

1шт.

24

A47327

FITTING

ORIFICE - compensator

1шт.

25

A47340

RING

- snap

1шт.

26

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- piston

2шт.

27

A49492

PLUG

PISTON - compensator

1шт.

29

A49491

ROD

- piston

1шт.

30

A47338

MAKING-UP

PISTON - compensator

1шт.

31

278548

PLUG,Hex, 7/16"-20 ORB

Assy, 1/4 tube Hex Soc, 7/16"-20 ORB

1шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

33

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

34

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - hex, 5/8 tube 7/8-14 inch thread

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

36

A47309

PIN

- locating

1шт.

37

A47301

PIN

- locating

1шт.

38

FB14850

ROLLER BEARING

CONE - bearing

1шт.

39

FB14849

BEARING CUP

- bearing

1шт.

40

A47308

SPRING

- valve block

1шт.

44

A47307

VALVE

- check, poppet

1шт.

45

A47306

PLUG

SEAT - check valve

1шт.

A47303

KIT

SPACER KIT - bearing, Includes: Ref. 47

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.139 inch (3.53 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.142 inch (3.61 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.145 inch (3.68 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.148 inch (3.76 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.151 inch (3.84 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.154 inch (3.91 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.157 inch (3.99 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.160 inch (4.06 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.163 inch (4.14 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.166 inch (4.22 mm)

1шт.

47

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.169 inch (4.29 mm)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- piston rod, 41/64 x 1/2 x 5/64 (16 x 13 x 2 mm)

1шт.
