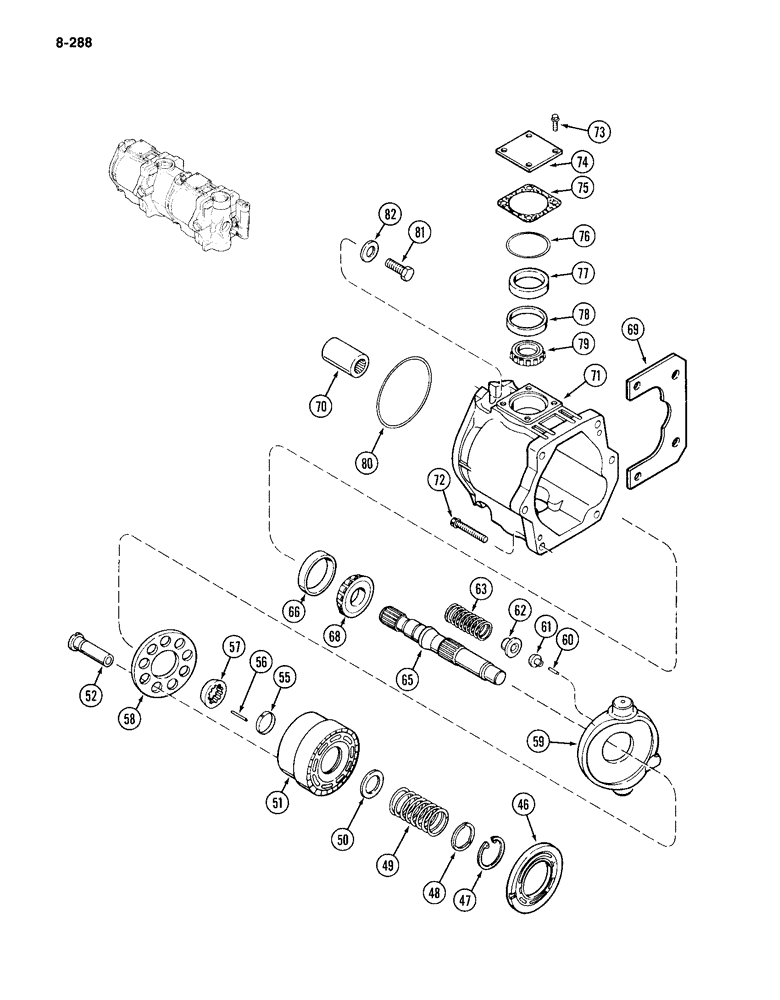

Запчасти Case IH 4994 (8-288) - DUAL PISTON PUMP, FRONT SECTION (CONTINUED) (08) - HYDRAULICS

A164014

PUMP

ASSEMBLY - hydraulic dual piston (Continued from Figure 8-286), Includes: Ref. 46 - 82, pump kit, and 1 - 45 on Figure 8-286

1шт.

46

A47635

PLATE

- wafer

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

47

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston 1.625", Int, #162

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

48

A47300

SPRING WASHER

WASHER - spring, front

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

49

A47298

SPRING

- cylinder block

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

50

A47299

WASHER

- spring, rear

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

51

A47295

BLOCK

- cylinder, pump

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

52

A47334

PACKAGE

PISTON KIT - pump (Includes 9 piston)

1шт.

55

A47297

SNAP RING,7.11mm Thk, Int

RETAINDER - pin

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

56

A47296

PIN

- cylinder block

3шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

57

A47293

WASHER

- spherical

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

58

A47292

PLATE

- shoe, piston

1шт.

Part of Rotating Pump Kit, P/N N8303

1шт.

59

A47284

YOKE

- swing

1шт.

60

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

61

A47283

SEAT

- piston

1шт.

62

A47282

PLUG

SEAT - piston spring

1шт.

63

A47281

SPRING

- piston

1шт.

65

A49424

SHAFT

- pump

1шт.

66

D59595

TAPERED BEARING

CUP - bearing

1шт.

68

A31272

ROLLER BEARING,1" ID x 0.8125"

CONE - bearing

1шт.

69

A49604

BRACKET

- support

1шт.

70

A49511

COUPLING

COUPLER - pump drive

1шт.

71

A47278

HOUSING

- piston pump

1шт.

72

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - flanged 12 point cap, 3/8 NC x 1-1/2 inch

6шт.

73

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

74

A47288

COVER

- yoke bearing

2шт.

A47287

KIT

SHIM KIT - yoke bearing, Includes: Ref. 75

1шт.

75

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.003 inch (0.76 mm) (3 in kit)

1шт.

75

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.005 inch (0.127 mm) (2 in kit)

1шт.

75

NSS

NOT SOLD SEPARAT

SHIM - bearing, 0.010 inch (0.254 mm) (2 in kit)

1шт.

76

S5730

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- yoke cover

2шт.

77

A47286

SPACER

- yoke bearing

2шт.

78

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

2шт.

79

D53168

TAPERED BEARING

CONE - bearing

2шт.

80

N60307

O-RING

- pump mounting

1шт.

81

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

82

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 27 x 2 mm)

2шт.

N8303

KIT

PUMP KIT - rotating, Includes: ref. nos. 46, 47, 48, 49, 50, 51, 55, 56, 57, 58

1шт.
