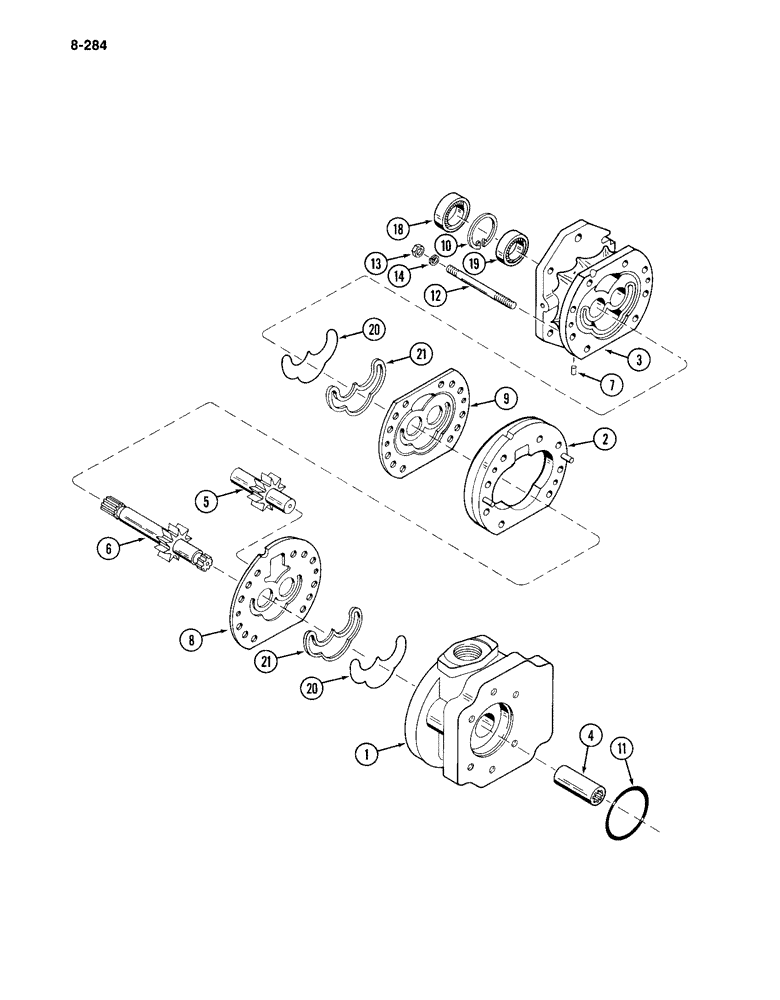

Запчасти Case IH 4994 (8-284) - CHARGE GEAR PUMP (08) - HYDRAULICS

A164771

PUMP

ASSEMBLY - hydraulic charge, gear, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

2

NSS

NOT SOLD SEPARAT

CENTER - section, pump

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

4

A49433

COUPLING

- pump

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

7

N60210

PLUG

- cover

1шт.

8

N60191

PLATE

- wear

1шт.

9

N60187

PLATE

- wear

1шт.

10

D41419

RING

- snap, seal

1шт.

11

N60307

O-RING

- pump

1шт.

12

NSS

NOT SOLD SEPARAT

STUD - pump cover

8шт.

13

129-106

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.

14

192-164

WASHER - lock, 9/16 inch

8шт.

S117493

SEAL KIT

SEAL KIT - pump, Includes: Ref. 18 - 21

1шт.

18

N60212

SEAL

SEAL - pump shaft, outer

1шт.

19

N60213

SEAL

- pump shaft, inner

1шт.

20

N60195

SEAL

- gland

2шт.

21

N60194

RETAINER

- seal

2шт.
