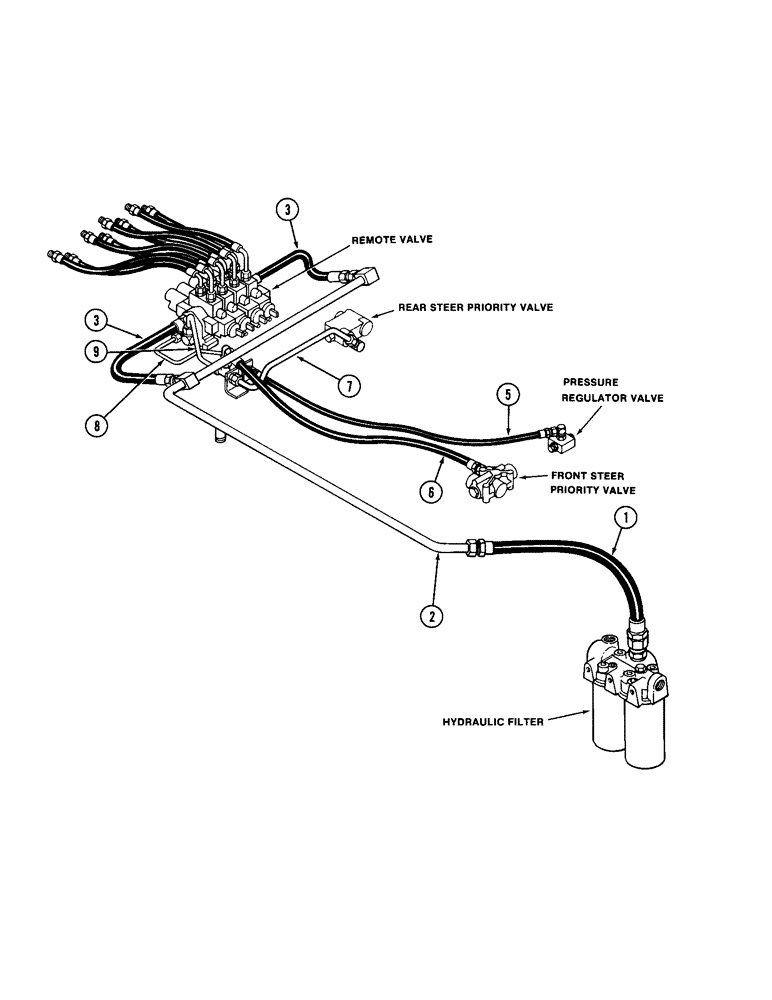

Запчасти Case IH 4994 (1-13) - PICTORIAL INDEX, REMOTE HYDRAULICS, P.I.N. 8865846 AND AFTER (00) - PICTORIAL INDEX

1

Filter to remote valve tube hose, Page 8-281

1шт.

2

Remote valve drain tube to filter, Page 8-301

1шт.

3

Remote valve drain hose, Page 8-301

1шт.

4

Remote valve to coupling hose, Page 8-301

1шт.

5

Remote sensing hose, Page 8-301

1шт.

6

Remote valve to front steer priority valve, Page 8-301

1шт.

7

Remote valve to rear steer priority valve, Page 8-301

1шт.

8

Remote valve sensing tube, Page 8-301

1шт.

9

Remote valve pressure tube, Page 8-301

1шт.
