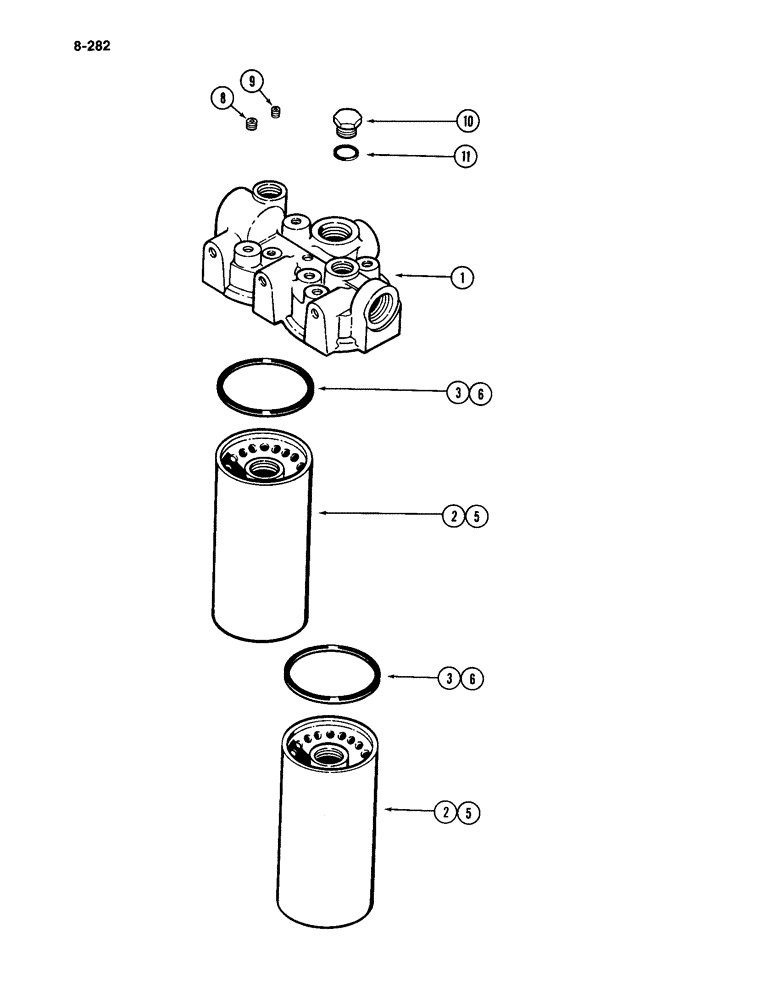

Запчасти Case IH 4994 (8-282) - TRACTOR CIRCUIT HYDRAULIC FILTER (08) - HYDRAULICS

1

A143469

HOUSING

- filter, hydraulic oil

1шт.

A161846

FILTER

ELEMENT KIT - hydraulic, filter, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 10-7/8 inch (276 mm) Reference No. A161844

2шт.

3

A139281

GASKET

- element sealing

2шт.

A176594

HYDRAULIC OIL FILTER

ELEMENT KIT - hydraulic, filter, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 11-13/16 inch (284 mm) (Reference No. A169652)

2шт.

6

A139281

GASKET

- element

2шт.

8

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square socket pipe, 1/4 inch PT

5шт.

9

221-1849

PLUG

- square socket pipe, 1/8 inch PT

1шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - hex, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.
