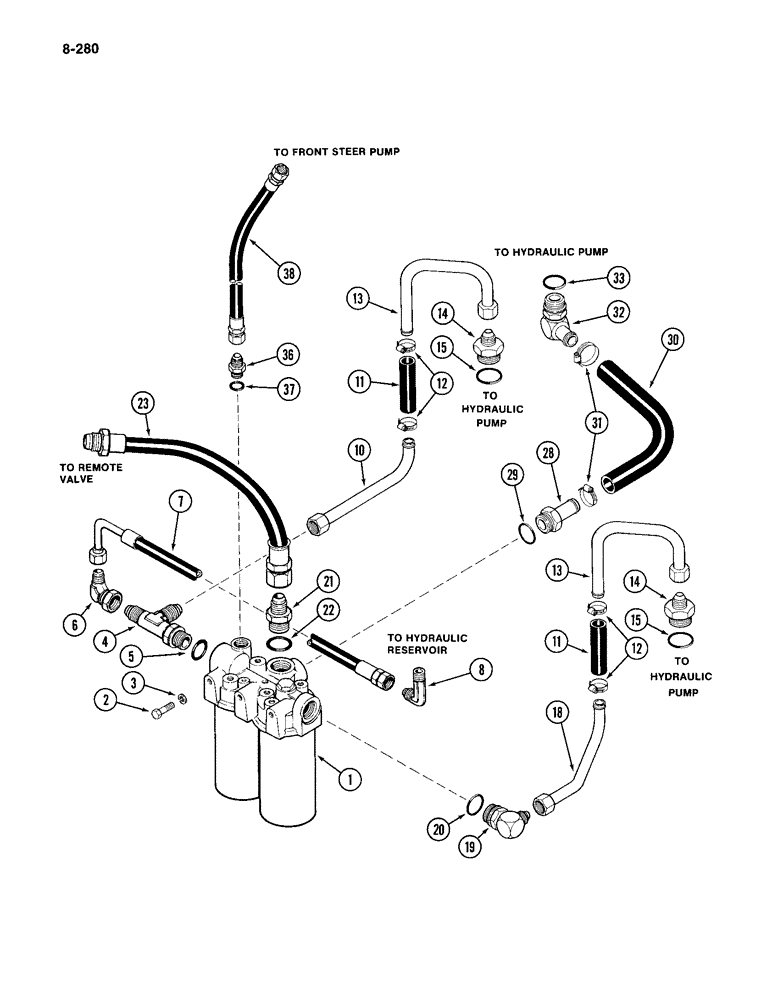

Запчасти Case IH 4994 (8-280) - TRACTOR HYDRAULIC CIRCUIT, HYDRAULIC FILTER AND LINES, P.I.N. 8865846 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-282)

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

218-5590

TEE,37 Degree, 1 1/16"-12, 1 5/8"-12 O-Ring Run, 1 5/16"-12

ASSEMBLY - adjustable, 1 tube x 1 tube 1-5/16-12 thread x 1-1/4 tube 1-5/8-12 inch thread, Includes: Ref. 5

1шт.

5

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/64 x 7/64 inch (38 x 44 x 3 mm)

1шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 1 tube 1-5/16-12 inch thread

1шт.

7

A146854

HOSE

ASSEMBLY -, Serial Range: filter-reservior

1шт.

8

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, 1 tube 1-5/16-12 thread x 1 inch PT

1шт.

10

A165949

TUBE

ASSEMBLY - rear, Serial Range: filter-pump

1шт.

11

L60332

HOSE

- filter to pump tube

2шт.

12

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

13

A167082

TUBE ASSY.

TUBE ASSEMBLY -, Serial Range: pump-filter

2шт.

14

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - pump tube, Includes: Ref. 15

2шт.

15

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 X 1-61/64 inch (44 x 50 x 3 mm)

1шт.

18

A165948

TUBE ASSY.

TUBE ASSEMBLY - front, Serial Range: filter-pump

1шт.

19

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ASSEMBLY - 90 degree adjustable, 1 tube 1-5/16-12 thread x 1-1/4 tube 1-5/8 inch thread, Includes: Ref. 20

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/64 inch (38 x 44 x 3 mm)

1шт.

21

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 1-1/4 tube 1-5/8-12 thread

1шт.

22

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/64 (38 x 44 x 3 mm)

1шт.

23

A148216

HOSE,1.25" ID x 18.75", SAE 100R1

per SAE J516 - Assy, Filter 1.25" ID x 18.75", SAE 100R1

1шт.

28

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 1-1/4 tube 1-5/8-12 thread x 1-1/4 inch ID hose barb end, Incl. Ref. 29

1шт.

29

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/64 inch (38 x 44 x 3 mm)

1шт.

30

A177138

HOSE

- filter to pump (Order S118465 and, Serial Range: cut-length)

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Hydraulic 1.25" ID x 180.00", SAE 100R3

1шт.

31

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

32

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Includes Ref. 33

1шт.

33

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/64 inch (38 x 44 x 3 mm)

1шт.

36

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - adjustable, 3/4 tube 1-1/16 inch thread, Incl. Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

38

L77088

HOSE ASSY.

HOSE ASSEMBLY - filter to steering pump

1шт.
