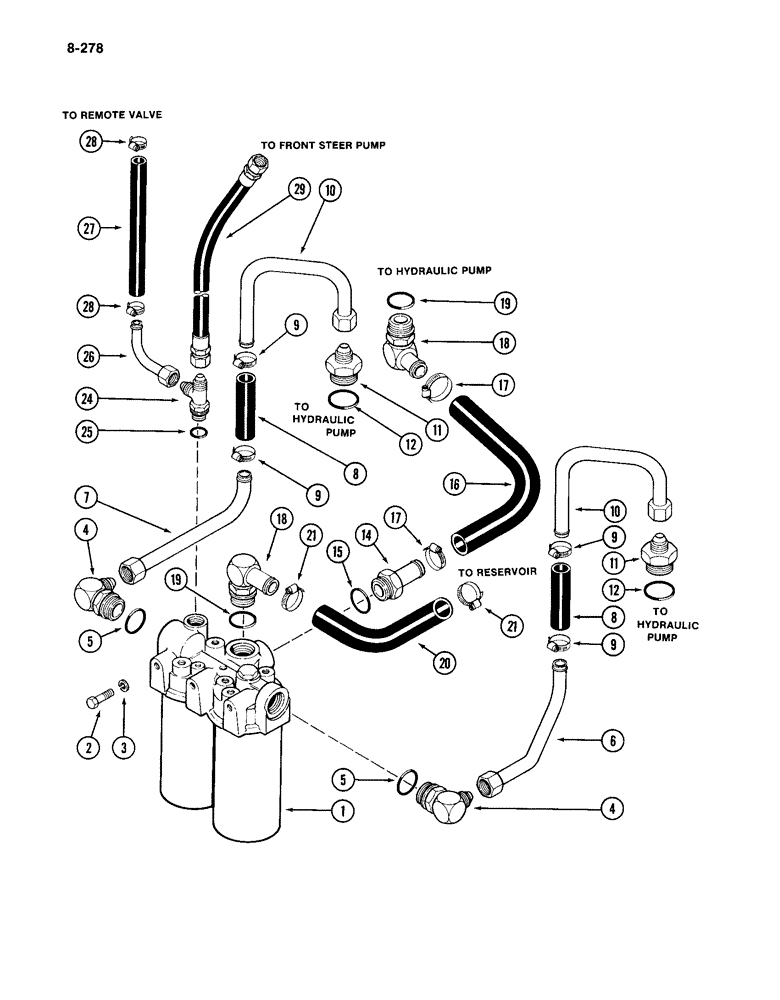

Запчасти Case IH 4994 (8-278) - TRACTOR HYDRAULIC CIRCUIT, PRIOR TO P.I.N. 8865846, HYDRAULIC FILTER AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

FILTER - hydraulic oil (See Figure 8-282)

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ASSEMBLY - 90 degree adjustable 1 tube 1-5/16-12 thread x 1-1/4 tube 1-5/8-12 inch thread, Includes: Ref. 5

2шт.

5

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/64 inch (38 x 44 x 3 mm)

1шт.

6

A165948

TUBE ASSY.

TUBE ASSEMBLY - front, Serial Range: filter-pump

1шт.

7

A165949

TUBE

ASSEMBLY - rear, Serial Range: fitler-pump

1шт.

8

L60332

HOSE

- filter to pump tube

2шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

10

A167082

TUBE ASSY.

TUBE ASSEMBLY -, Serial Range: pump-fitler

2шт.

11

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - pump top parts, Includes: Ref. 12

2шт.

12

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-61/64 x 7/64 inch (44 x 50 x 3 mm)

1шт.

14

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR ASSMBLY - straight, 1-1/4 tube 1-5/8-12 thread x 1-1/4 inch ID hose barb end, Incl. Ref. 15

1шт.

15

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/16 inch (38 x 44 x 3 mm)

1шт.

16

A177138

HOSE

- filter to pump (Replaces A176501)

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Includes Ref. 19

2шт.

19

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-31/64 x 1-23/32 x 7/64 inch (38 x 44 x 3 mm)

1шт.

20

D35463

HOSE

- filter to reservoir tank (Replaces D32772)

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

24

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

26

S236758

TUBE,0.75" OD x 3.06, 3.06" L

ASSEMBLY - filter to remotes

1шт.

27

H307918

HOSE ASSY.

HOSE - remote valve tube

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

29

L77088

HOSE ASSY.

HOSE ASSEMBLY - filter to steering pump

1шт.
