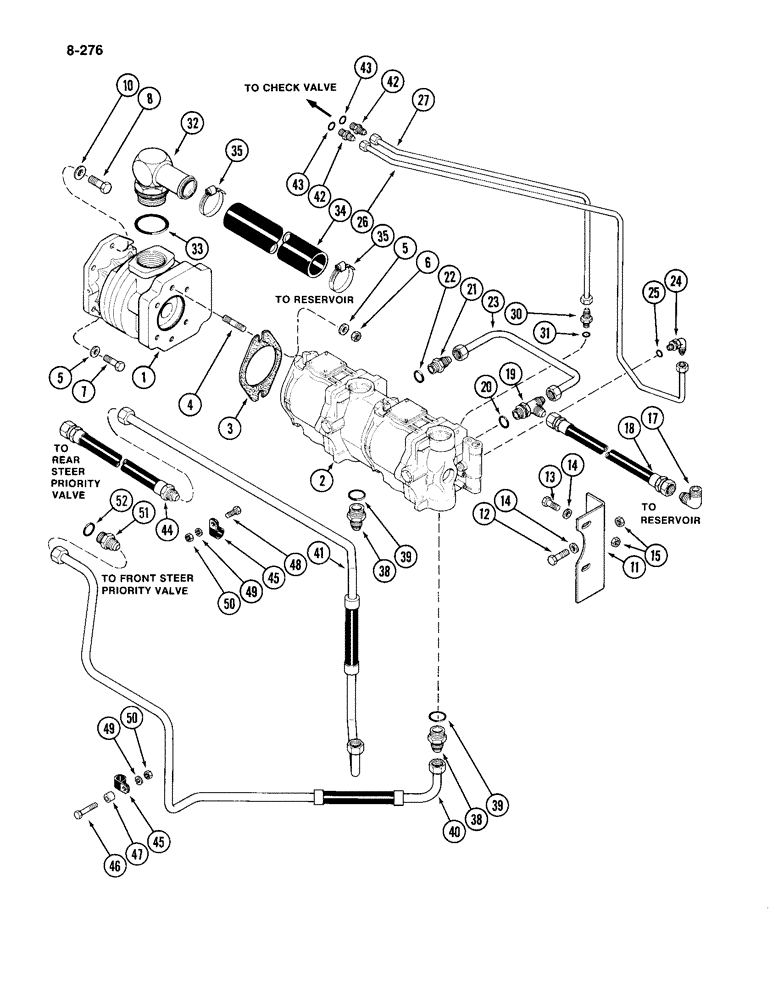

Запчасти Case IH 4994 (8-276) - TRACTOR HYDRAULIC CIRCUIT, HYDRAULIC PUMP AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - charge, gear (See Figure 8-286)

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - piston (See Figure 8-284)

1шт.

3

A141828

GASKET

_ piston pump

1шт.

4

S64966

STUD - pump to pump, 1/2 NC x 2-1/4 inch

2шт.

5

L30674

WASHER

- stud, pump mounting

5шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

8

113-2625

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch

2шт.

10

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch (17 x 33 x 5 mm)

2шт.

11

A167810

BRACKET

- pump mounting

1шт.

12

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

14

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

4шт.

15

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

4шт.

17

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 3/4 tube 1-1/16-12 thread x 3/4 inch PT

1шт.

18

D58706

HOSE ASSY.

HOSE ASSEMBLY - return

1шт.

19

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - adjustable, 5/8 tube 7/8-14 inch thread, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

23

A166788

TUBE

ASSEMBLY - pump drain

1шт.

24

A180598

ELBOW

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Includes: Ref. 25

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

26

A165952

TUBE

ASSEMBLY - front compensator to check valve

1шт.

27

A165916

TUBE ASSY.

TUBE ASSEMBLY - rear compensator to check valve

1шт.

30

218-5332

ELBOW,45 Degree, 1 1/16"-12 O-Ring x 1/2" NPSM Fem

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Includes: Ref. 31

1шт.

See spec. on part number 218-5332

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/4 inch (9 x 13 x 2 mm)

1шт.

32

217-360

FITTING,90 Degree Elbow, 2" Hose Barb x 2-1/2" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree adjustable, 2 tube 2-1/2-12 thread x 2 inch hose ID barb end, Includes: Ref. 33

1шт.

33

218-5013

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

- 2-3/8 x 2-9/16 x 7/64 inch (60 x 62 x 3 mm)

1шт.

34

A167084

HOSE

- pump inlet

1шт.

35

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP - hose, 1-13/64 to 2-3/4 inch

2шт.

38

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 thread x 1 tube 1-5/32 inch thread, Incl. Ref. 39

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

40

A167945

TUBE ASSY.

TUBE ASSEMBLY - pump to front steer priority

1шт.

41

A169081

TUBE

ASSEMBLY - pump to rear steer priority

1шт.

42

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 inch thread, Incl. Ref. 43

2шт.

43

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

44

A169086

HOSE ASSY.,19.05 mm ID x 736.00 mm, SAE 100R9

- Pump to rear steer priority 19.05 mm ID x 736.00 mm, SAE 100R9

1шт.

45

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

46

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

47

A76093

BUSHING

SPACER - tube clamp

1шт.

48

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

51

A181261

VALVE

CHECK VALVE ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 52

1шт.

52

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.
