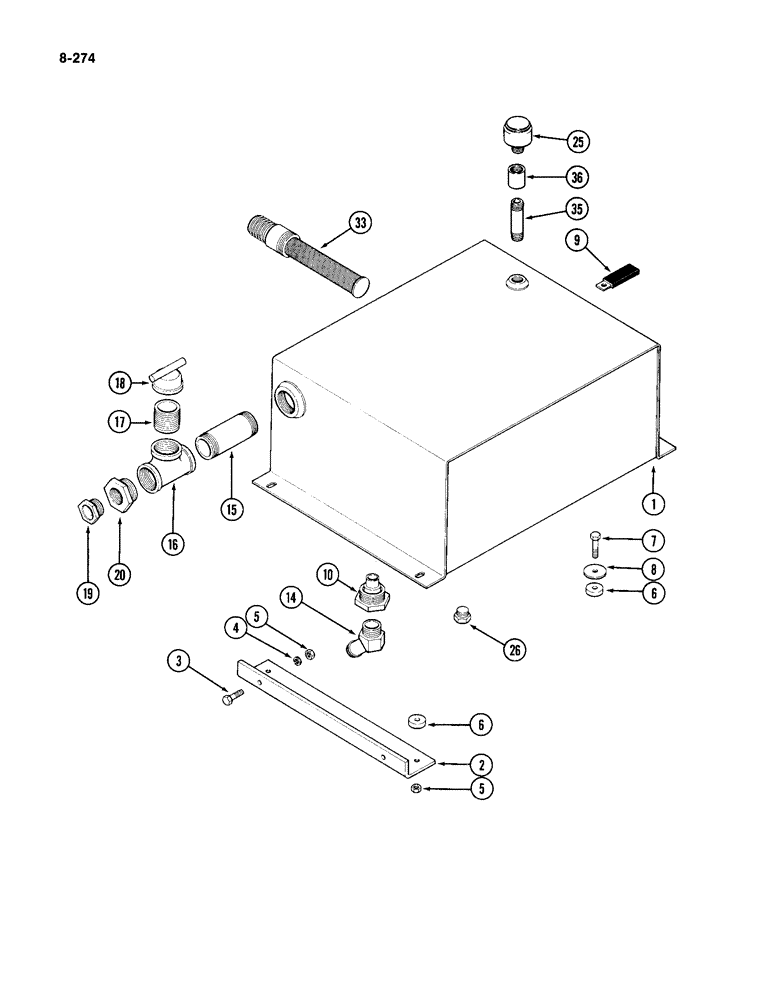

Запчасти Case IH 4994 (8-274) - TRACTOR HYDRAULIC CIRCUIT, OIL RESERVOIR TANK (08) - HYDRAULICS

1

A165873

TANK

- reservoir, hydraulic oil

1шт.

2

A163919

SUPPORT

- tank

2шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

L52327

WASHER

MOUNT - tank

8шт.

7

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

8

195-2174

WASHER,13/32" x 2" x .109"

- flat, 13/32 x 2 x 5/64 inch (10 x 51 x 2 mm)

4шт.

9

A149624

CLIP

- hose

1шт.

10

A181432

VALVE

- inducer, pressure

1шт.

11

A181431

FITTING

- reducer

1шт.

14

217-147

ELBOW - 45 degree, 1-1/4 PT x 1-1/4 inch ID hose barb end

1шт.

15

221-312

NIPPLE - pipe, 2 inch PT

1шт.

16

221-429

TEE - pipe, 2 inch PT

1шт.

17

221-305

SUN VISOR,Nipple, 2" NPT x 2"

NIPPLE - pipe, 2 PT x 2 inch

1шт.

18

S230688

CAP

- fill, tank

1шт.

19

L106452

GAUGE

- sight, oil level

1шт.

20

221-82

ADAPTER - reducer, 2 x 1-1/4 inch PT

1шт.

25

S91864

BREATHER

- oil tank

1шт.

26

221-655

PLUG,Hex Hd, 3/4"-14

- hex pipe, 3/4 inch PT

1шт.

33

A165853

SCREEN

- suction line

1шт.

35

221-1219

FITTING,Nipple, 3/4" NPT x 4"

NIPPLE - pipe, 4 x 3/4 inch PT

1шт.

36

221-1339

COUPLING - pipe, 3/4 inch PT

1шт.
