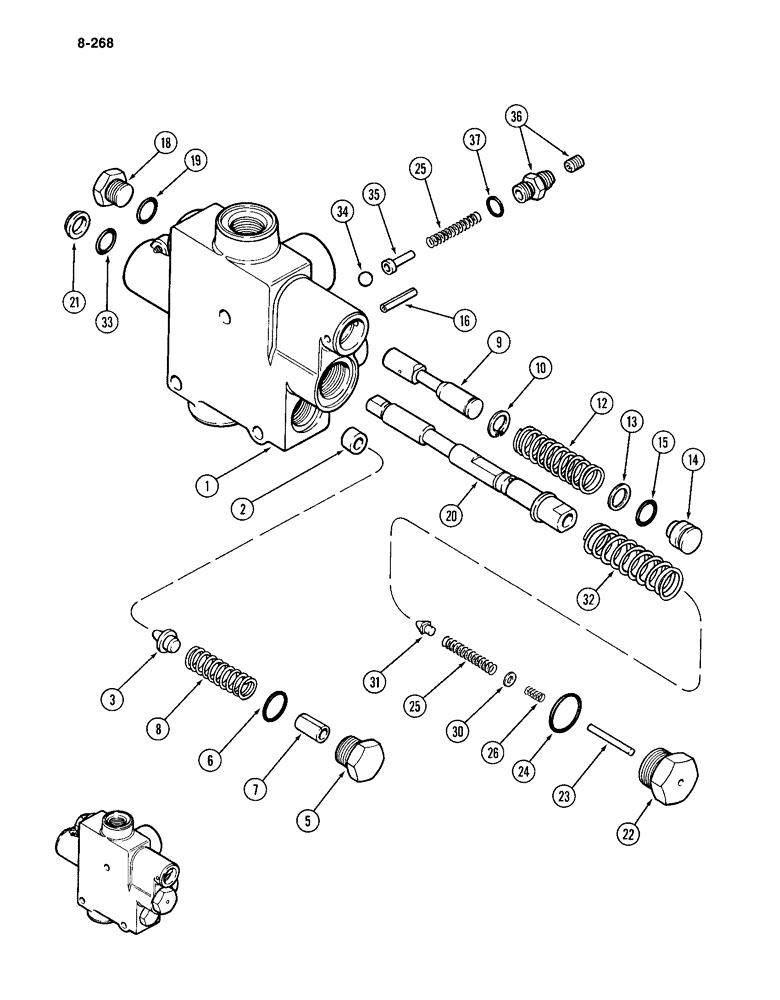

Запчасти Case IH 4994 (8-268) - PTO REGULATOR VALVE (08) - HYDRAULICS

A169224

VALVE

ASSEMBLY - regulator, PTO (Order G107961, Figure 8-270), Includes: Ref. 1 - 37

1шт.

Reference no. A139910 stamped on the body of the valve. For repairs order G107961.

1шт.

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve (Reference No. 139909), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Reference No. 139910)

1шт.

2

A60686

SEAT

- relief valve

1шт.

3

A60687

VALVE POPPET

POPPET - relief valve

1шт.

A139173

PLUG

ASSEMBLY - spring guide, Includes: Ref. 5 and 6

1шт.

5

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - hex, 5/8 tube 7/8-14 inch thread, Incl. Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

7

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

1шт.

8

G109164

SPRING

- relief valve (Replaces A60286)

1шт.

9

A139708

SPOOL

- regulator, pressure

1шт.

10

A60273

SNAP RING,#62, Ext

Ring, Snap, , spool #62, Ext

1шт.

12

G109129

SPRING

- spool (Replaces A60274)

1шт.

13

A149281

SHIM

- regulator, 1/64 inch (0.40 mm)

1шт.

14

A149282

PLUG

- spool end

1шт.

15

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- plug

1шт.

16

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

18

214389

PLUG,3/4" - 16 ORB

Assy, 1/2 tube, Includes Ref. 19 Hex Hd, 3/4"-16 ORB

1шт.

20

A139912

SPOOL

ASSEMBLY - PTO control

1шт.

21

A63660

RING

SEAL - valve spool

1шт.

22

A139689

PLUG

ASSEMBLY - hex, modulator, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - spring guide (Reference No. A139687)

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64 inch (27 x 33 x 3 mm)

1шт.

25

G109019

SPRING

- primary, modulator (Replaces A141647)

1шт.

26

A139738

SPRING

- secondary, modulator

1шт.

30

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

31

A61991

POINT

- modulator

1шт.

32

A139739

SPRING

- spool return

1шт.

33

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool

1шт.

34

211-28

BALL,13/32" Dia

- steel, 13/32 inch (10 mm) diameter

1шт.

35

G109322

PIN

- detent spring

1шт.

36

G109083

HYD CONNECTOR

CONNECTOR ASSEMBLY - PTO detent (Replaces A 169229), Includes: Ref. 37

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
