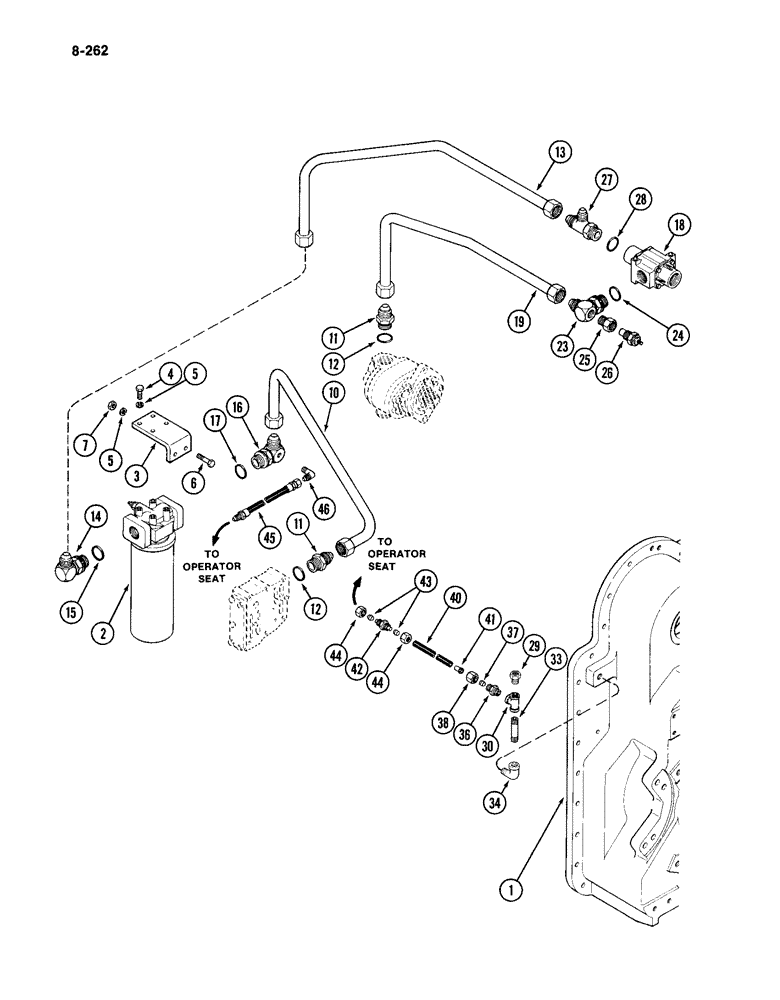

Запчасти Case IH 4994 (8-262) - TRANSMISSION HYDRAULIC CIRCUIT, OIL FILTER AND VENT (08) - HYDRAULICS

1

REF

INSTRUCTION

TRANSMISSION COVER - front

1шт.

2

A167610

FILTER

ASSEMBLY - oil, transmission (See Figure 8-272)

1шт.

3

A167611

BRACKET

- support, filter

1шт.

4

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

A167608

TUBE

ASSEMBLY - filter to transmission pump

1шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 1 tube 1-5/16-12 inch thread, Incl. Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 7/64 inch (33 x 39 x 3 mm)

1шт.

13

A167609

TUBE

ASSEMBLY - bypass, Serial Range: valve-filter

1шт.

14

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, Assy, adjustable, 1 tube 1-5/16-12 inch thread, Incl. Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (33 x 39 x 3 mm)

1шт.

16

A169037

FITTING

ELBOW ASSEMBLY - 90 degree adjustable, 1 tube 1-5/16-12 thread x 1/4 inch PT, Includes: Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (33 x 39 x 3 mm)

1шт.

18

A164010

VALVE

ASSEMBLY - bypass (See Figure 8-273)

1шт.

19

A165277

TUBE ASSY.

TUBE ASSEMBLY - bypass valve to transmission pump

1шт.

23

A177567

FITTING

ELBOW ASSEMBLY - 90 degree adjustable, 1 tube 1-5/16-12 thread x 1/2 inch PT, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (33 x 39 x 3 mm)

1шт.

25

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

ADAPTER - 3/4 x 1/2 inch

1шт.

26

A135001

SWITCH

- temperature

1шт.

27

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

ASSEMBLY - 1 tube 1-5/16-12 thread x 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 7/64 inch (33 x 39 x 3 mm)

1шт.

29

A49161

BREATHER

- transmission

1шт.

30

221-423

TEE,3/8" NPT

- pipe, 3/8 inch PT

1шт.

33

221-165

NIPPLE, LUBE

NIPPLE - pipe, 2-1/2 x 3/8 inch PT

1шт.

34

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, 3/8 x 3/8 inch PT

1шт.

36

222-608

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-24 thread x 3/8 inch PT, Includes: Ref. 37 and 38

1шт.

37

222-654

FERRULE,3/8" Tube, Comp

- connector, 3/8 inch tube

1шт.

38

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - hex, 3/8 tube 9/16-24 inch thread

1шт.

40

A63671

TUBE

- operator seat vent 41 inch Nylon (1 035 mm )

1шт.

41

222-2446

INSERT,1/4" Tube

- tube, 3/8 inch

1шт.

42

222-2651

HYD CONNECTOR,17/32"-24

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 inch thread, Includes: Ref. 43 and 44

1шт.

43

222-2611

SLEEVE

- connector, 3/8 inch tube

2шт.

44

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

2шт.

45

H168625

HYDRAULIC HOSE,6.35 mm ID x 381.00 mm, SAE 100R1

Extension Pressure, Opertor Seat

1шт.

46

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 3/8 tube 9/16-18 thread x 1/4 inch PT

1шт.
