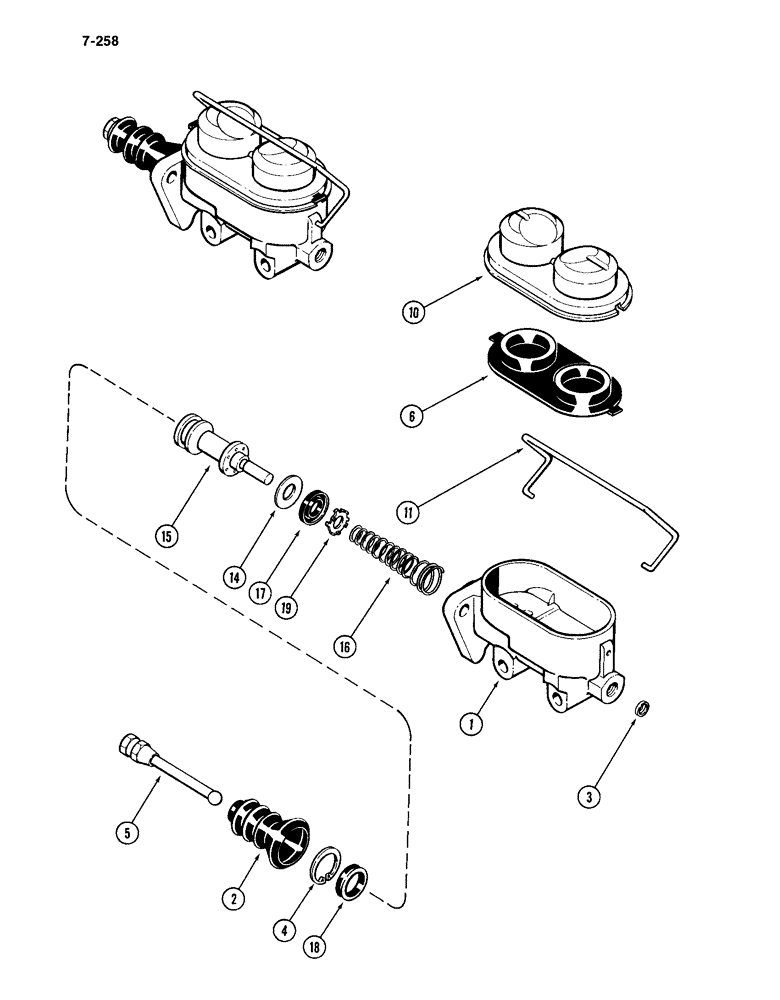

Запчасти Case IH 4994 (7-258) - CYLINDER ASSEMBLY (07) - BRAKES

A169911

VALVE, BRAKE

CYLINDER ASSEMBLY - brake, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A169911

1шт.

2

L32136

BOOT

- push rod

1шт.

3

N6825

SEAT

- cylinder

1шт.

4

A36277

SNAP RING,1.125", Int, #112

1шт.

5

L32137

ROD

- push, cylinder

1шт.

6

A48981

GASKET

- cylinder cover

1шт.

10

A48982

COVER

- cylinder

1шт.

11

N6831

BAIL

- wire, cover

1шт.

A48983

PISTON

KIT - cylinder, Includes: Ref. 14 - 19

1шт.

14

A48988

PROTECTOR - cylinder cup

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Reference No. A48989)

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - piston (Reference No. A48990)

1шт.

17

NSS

NOT SOLD SEPARAT

CUP - piston (Reference No. A48991)

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston (Reference No.A48992)

1шт.

19

NSS

NOT SOLD SEPARAT

RETAINER - piston cup (Reference No. A48993)

1шт.
