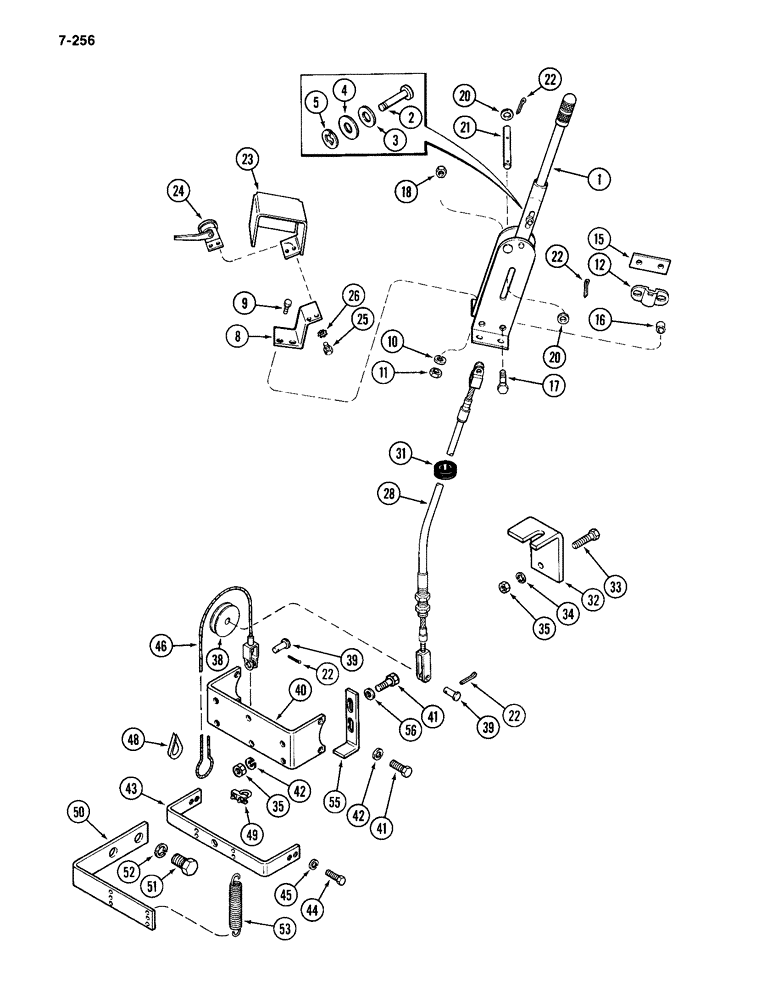

Запчасти Case IH 4994 (7-256) - PARK BRAKE CONTROL (07) - BRAKES

1

A161718

LEVER

ASSEMBLY - hand, park brake, Includes: Ref. 2 - 4

1шт.

2

A42204

PIN

- lever

1шт.

3

A55934

WASHER

- spring

1шт.

4

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

1шт.

5

A52207

RING - snap

1шт.

8

A169261

BRACKET

- brake switch

1шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

A76109

CLAMP

- cable

1шт.

15

A75745

BUSHING

SPACER - hand brake

1шт.

16

A31238

BUSHING

SPACER - cable clamp

2шт.

17

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex center lock, 5/16 inch NC

2шт.

20

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 mm)

2шт.

21

A161784

PIN

- clevis, brake switch

1шт.

22

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

4шт.

23

A139933

COVER

- brake switch

1шт.

24

A33977

SWITCH

ASSEMBLY - brake

1шт.

25

163-9

SCREW,Hex, #10 - 32 x 1/2"

BOLT - hex, No. 10-32 x 1/2 inch

2шт.

26

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

28

A165865

CABLE

ASSEMBLY - park brake

1шт.

31

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- cable

1шт.

32

A163852

SUPPORT

- brake cable

1шт.

33

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

38

A166792

SHEAVE

- brake cable

1шт.

39

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

40

A165879

BRACKET

- loop cable

1шт.

41

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

43

A167124

LEVER

- park brake

1шт.

44

165-144

BOLT,5/16" - 18 x 3/4"

SCREW - hex socket head, 5/16 NC x 3/4 inch

4шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

46

A165877

CABLE

- loop, brake

1шт.

48

A165883

GUIDE

THIMBLE - cable

1шт.

49

S100793

CLAMP

- cable

2шт.

50

A167125

SUPPORT

- return spring

1шт.

51

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

52

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

53

L101777

SPRING

- return, brake

2шт.

55

A176627

BRACKET

- stop

1шт.

56

195-104

WASHER,3/8"

- flat, 7/16 x 1/16 inch (11 x 25 x 2 m)

2шт.
