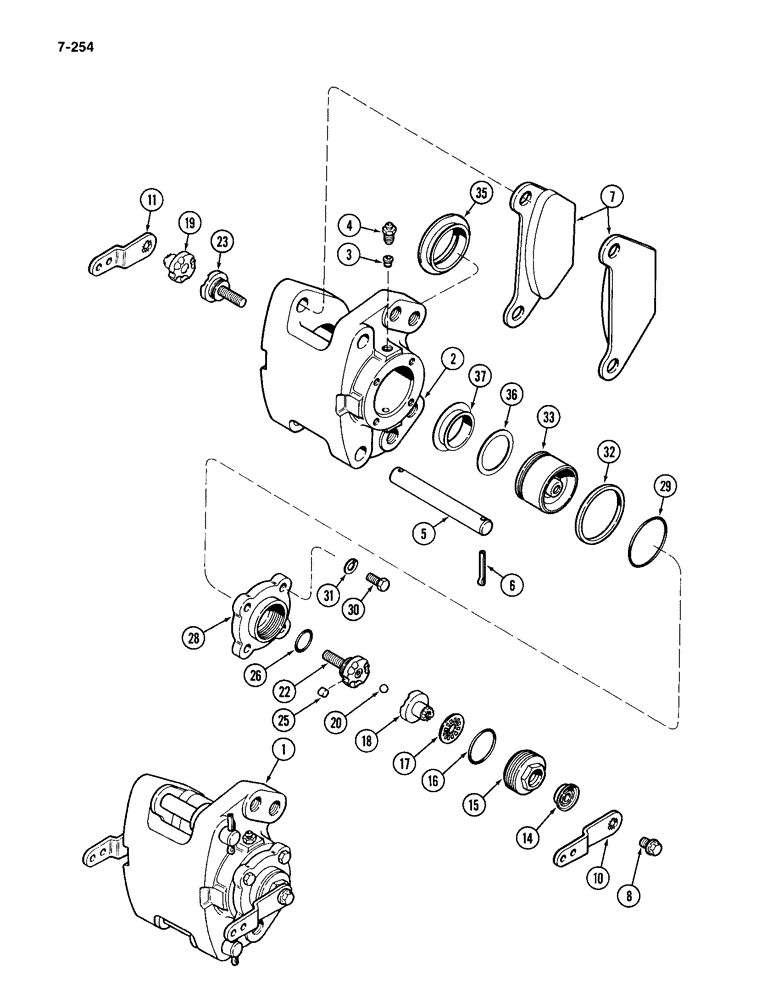

Запчасти Case IH 4994 (7-254) - RIGHT HAND DISC BRAKE CALIPER ASSEMBLY (07) - BRAKES

1

A158666

BRAKE PAD

CALIPER ASSEMBLY - disk brake, right-hand, Includes: Ref. 2 - 37

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - holder

1шт.

3

A46961

INSERT

- seat

4шт.

4

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

5

A46971

PIN

- mounting, brake pad

2шт.

6

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

4шт.

7

A46966

BRAKE LINING

HOLDER ASSEMBLY - brake pad

2шт.

8

A46956

SERRATED SCREW,Hex Serrated Washer

- hex serrated washer head, lever

2шт.

10

A46965

LEVER

- thrust, front

1шт.

11

A46964

LEVER

- thrust, rear

1шт.

14

A46957

SEAL

- adjuster

2шт.

15

A46958

RETAINER

- park brake adjuster

2шт.

16

S98707

O-RING,1.739" ID x 1.879" OD x 0.07"

- retainer

2шт.

17

A46955

BEARING ASSY,15.93mm ID x 31.65mm OD x 3.17mm W

BEARING - thrust

2шт.

18

A46952

SHAFT

- actuator, front

1шт.

19

A46951

SHAFT

- actuator, rear

1шт.

20

211-210

BALL,3/8" Dia

- detent, 3/8 inch (10 mm)

6шт.

22

A46954

SCREW,M3 x 1.76"

- thrust, front

1шт.

23

A46953

SCREW

- thrust, rear

1шт.

25

A46970

PIN

- anti rotation

2шт.

26

N9436

O-RING,0.989" ID x 1.129" OD x 0.07"

- thrust screw

2шт.

28

A46959

HOUSING

CAP - caliper

2шт.

29

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- cap

2шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

32

A46968

SEAL

- piston

2шт.

33

A46967

PISTON

AND ADJUSTER ASSEMBLY - brake

2шт.

35

A46969

BELLOWS

BOOT - brake caliper

2шт.

36

A46960

RUBBER INSULATOR

INSULATOR - brake boot

2шт.

37

A46963

INSULATOR

RETAINER - insulator

2шт.
