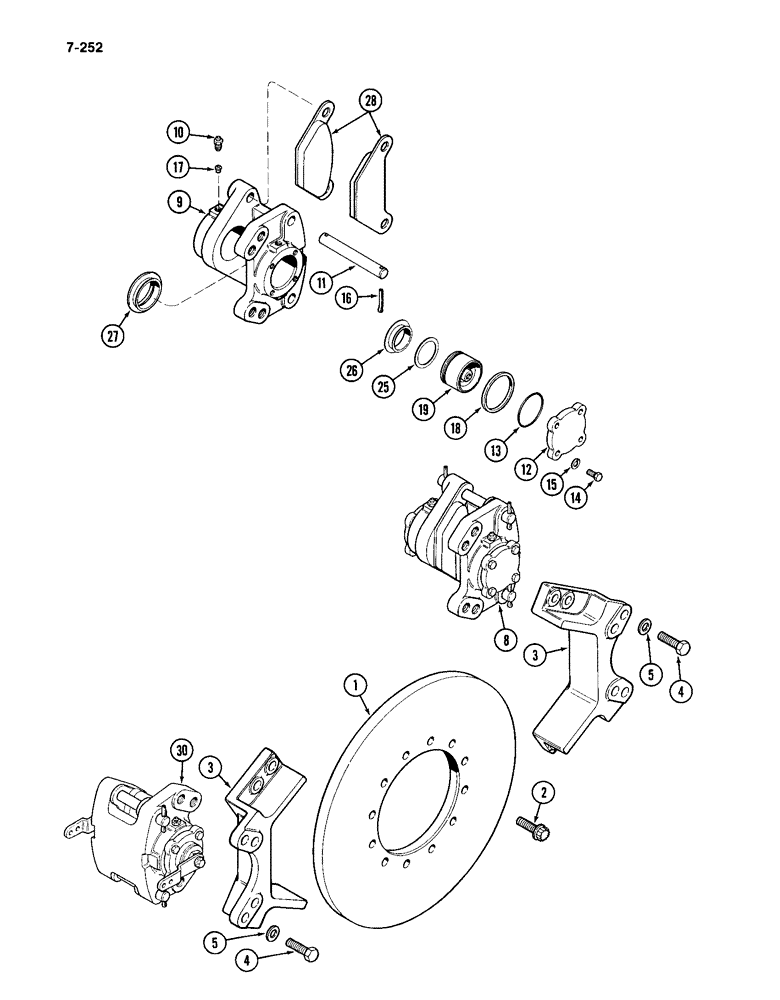

Запчасти Case IH 4994 (7-252) - TRANSMISSION BRAKE (07) - BRAKES

1

A163391

LARGE PLATE

PLATE - disk brake

1шт.

2

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- 12 point flanged head, 5/8 NC x inch

12шт.

3

A163815

ANCHOR

MOUNT - brake caliper

2шт.

4

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

16шт.

5

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

28шт.

8

A163890

CALIPER

ASSEMBLY - disk brake, left-hand, Includes: Ref. 9 - 28

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - holder

1шт.

10

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder, brake

3шт.

11

A46971

PIN

- mounting

2шт.

12

A46972

HOUSING

CAP - end

2шт.

13

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- end cap

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

4шт.

17

A46961

INSERT

- seat

4шт.

18

A46968

SEAL

- piston

2шт.

19

A46973

PISTON

- brake

2шт.

25

A46960

RUBBER INSULATOR

INSULATOR - brake

2шт.

26

A46963

INSULATOR

RETAINER - insulator

2шт.

27

A46969

BELLOWS

BOOT - caliper

2шт.

28

A46966

BRAKE LINING

HOLDER ASSEMBLY - brake pad

2шт.

30

A158666

BRAKE PAD

CALIPER ASSEMBLY - disk brake, right-hand (See Figure 7-254)

1шт.
