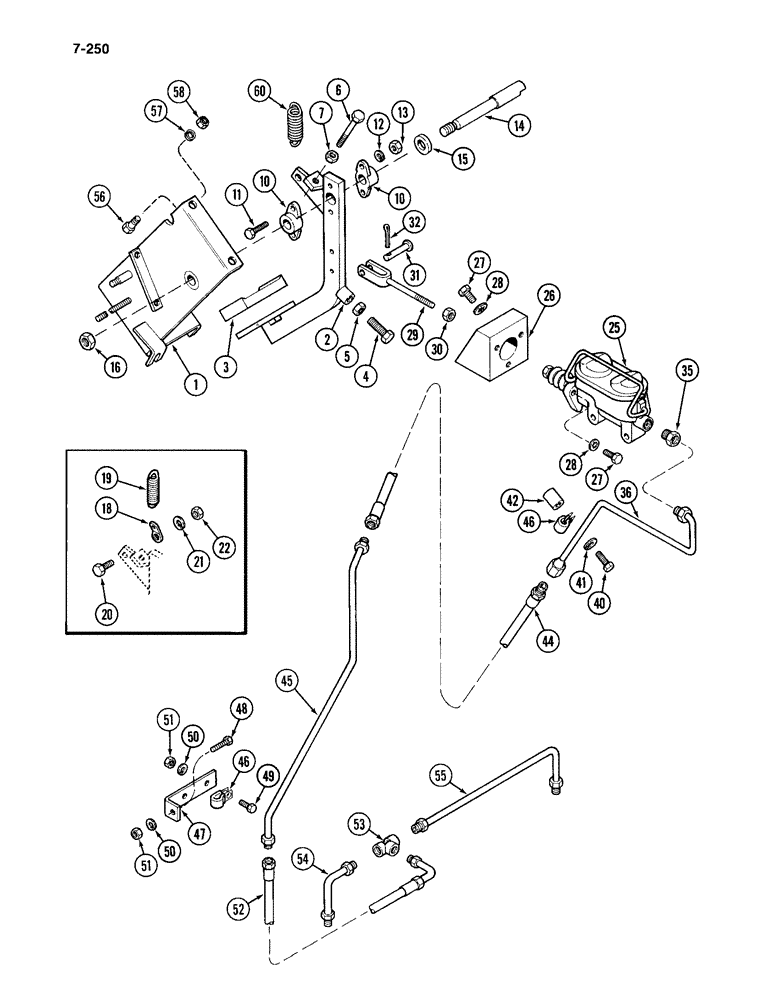

Запчасти Case IH 4994 (7-250) - BRAKE PEDAL AND CYLINDER (07) - BRAKES

1

A164115

BRACKET

- control mounting

1шт.

2

A166485

PEDAL

- brake

1шт.

3

F9197

PAD

- foot pedal

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

87016560

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8 NC x 3-3/4 inch

1шт.

6

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pedal shaft

2шт.

11

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

A75373

SHAFT

- brake pedal

1шт.

15

A138830

BUSHING

SPACER - pedal shaft

1шт.

16

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NC

1шт.

18

NLS

NO LONGER SERVICED

- return spring, Serial Range: -8865744

1шт.

19

A20093

SPRING

- pedal return, Serial Range: -8865744

1шт.

20

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - brake valve, master (See Figure 7-256)

1шт.

26

A169941

BLOCK

- mounting, master cylinder

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

28

193-78

LOCK WASHER,3/8"

WASHER - internal Shakeproof lock, 3/8 inch

6шт.

29

A169902

ROD

- push, brake cylinder

1шт.

30

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

- hex jam, 3/8 inch NC

1шт.

31

141-12

CLEVIS PIN,3/8" x 1 5/16"

PIN - clevis, 3/8 inch

1шт.

32

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

35

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

- reducer, 5/16 tube 1/2-20 thread x 1/4 tube 7/16-24 inch thread

1шт.

36

A176383

TUBE

ASSEMBLY - brake cylinder, upper

1шт.

40

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

42

A140442

BUSHING

SPACER - tube, 1 inch

1шт.

44

A176110

HOSE,6.35 mm ID x 356.00 mm

- Brake cylinder 6.35 mm ID x 356.00 mm

1шт.

45

A176108

TUBE

ASSEMBLY - center brake

1шт.

46

49851

SHIELD

- tube

3шт.

47

A163968

BRACKET

- tube support, center

1шт.

48

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

49

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

51

9635082

NUT,5/16" - 18, Gr 5

2шт.

52

A176109

HOSE

ASSEMBLY - brake, lower

1шт.

53

222-1150

TEE,7/16"-24, Inv Fl

- hydraulic, 1/4 tube 7/16-24 thread

1шт.

54

A164006

TUBE

ASSEMBLY - brake, right-hand

1шт.

55

A164007

TUBE

ASSEMBLY - brake, left-hand

1шт.

56

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

57

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

58

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

60

A160874

SPRING

- return, pedal, Start Serial: 8865744

1шт.
