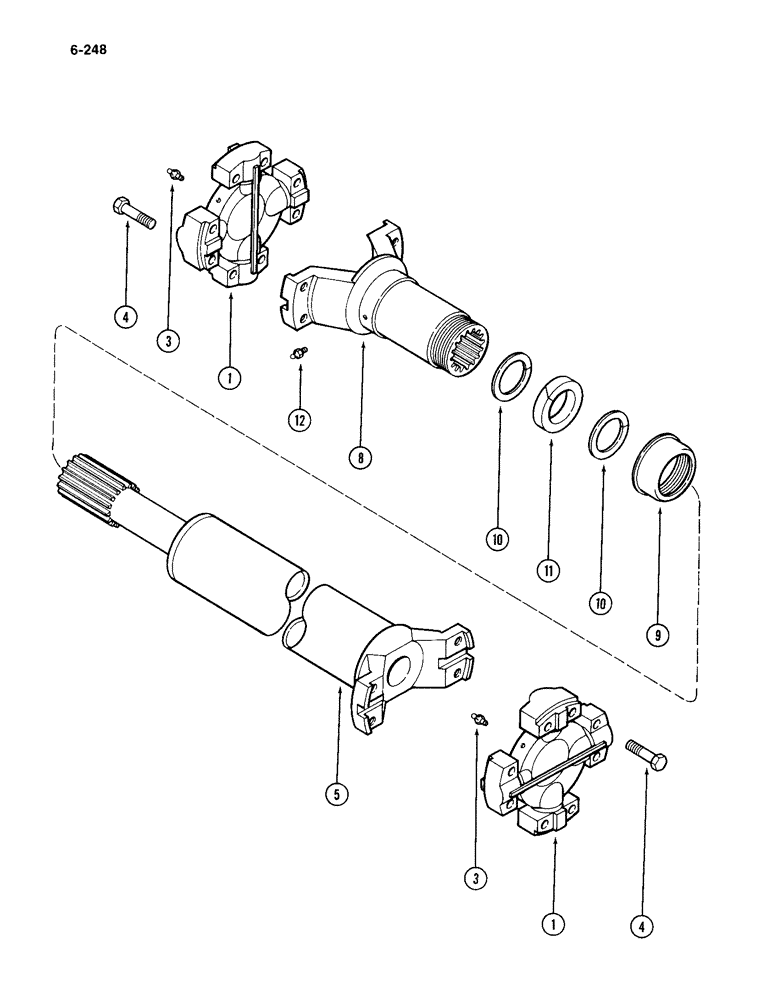

Запчасти Case IH 4994 (6-248) - PTO DRIVE LINE (06) - POWER TRAIN

A157617

DRIVE SHAFT

SHAFT ASSEMBLY - drive, PTO, Includes: Ref. 1 - 12

1шт.

1

A47527

JOINT

BEARING ASSEMBLY - shaft joint (Replaces A48902), Includes: Ref. 3

2шт.

3

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/4 taper thread x 17/32 inch

1шт.

4

A56245

BOLT,Hex, 1/2" x 2 3/8"

- bearing assembly

8шт.

5

A48901

TUBE

- drive shaft, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

9

A58216

BALL BEARING,69.98mm ID x 110mm OD x 20mm W

CAP - seal

1шт.

10

A47531

WASHER

- seal

2шт.

11

S74239

SEAL

- felt

1шт.

12

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 PT x 1-3/4 inch (Replaces 219-1)

1шт.
