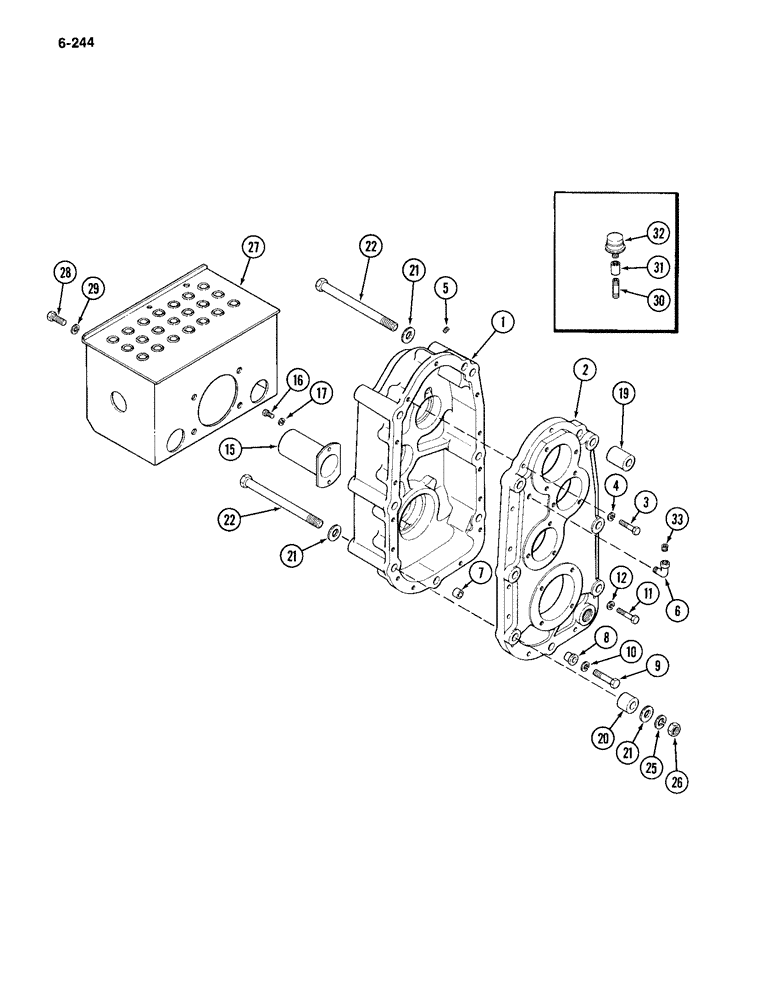

Запчасти Case IH 4994 (6-244) - PTO HOUSING ASSEMBLY AND SHIELD (06) - POWER TRAIN

A168217

HOUSING

ASSEMBLY - PTO complete (Includes parts on Figure 6-246), Includes: Ref. 1 - 17

1шт.

A168215

HOUSING

ASSEMBLY - PTO, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing

1шт.

3

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

- hex, 3/8 NC x 1-3/4 inch

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

221-850

PLUG,Hex Soc, 1/16"-27

- socket head pipe, 1/16 inch PT

1шт.

6

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree, 1/4 inch PT

1шт.

7

A50011

SLEEVE

- dowel, locating

2шт.

8

A32426

BUSHING

SPACER - dowel

2шт.

9

113-4411

BOLT - hex, 1/2 NC x 2-1/4 inch

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

10шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

15

A58238

GUARD

- shaft, PTO

1шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

A165141

SPACER

- mounting, upper

2шт.

20

A138254

BUSHING

SPACER - mounting, lower

2шт.

21

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch (21 x 37 x 3 mm)

6шт.

22

15-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

- hex, 3/4 NC x 9-1/2 inch

4шт.

25

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

131-197

LOCK NUT,3/4"-10, GC

NUT - hex lock, 3/4 inch NC

2шт.

27

A177624

PROTECTOR

SHEILD - PTO shaft

1шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

221-136

PIPE

NIPPLE - 1/4 PT x 1-3/4 inch (Order Ref 33)

1шт.

31

221-1336

COUPLING,Pipe, 1/4" NPT

- 1/4 inch PT (Order Ref 33)

1шт.

32

A27173

BREATHER

- PTO housing (Order Ref 33), Includes: Ref. 33

1шт.

33

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.
