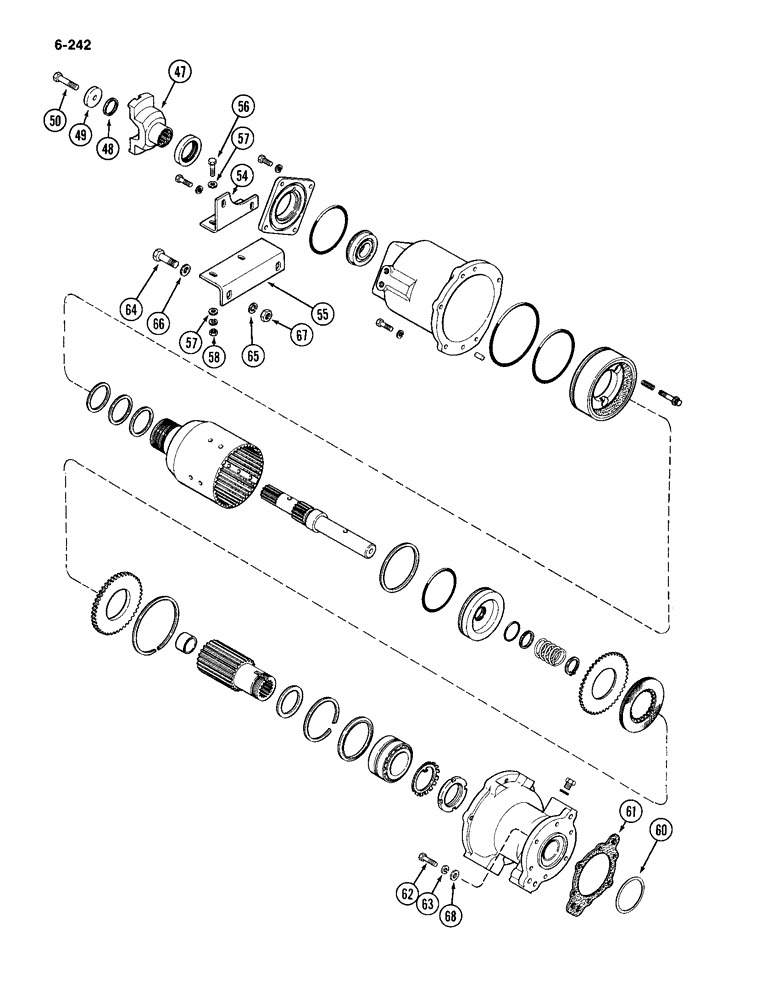

Запчасти Case IH 4994 (6-242) - PTO CLUTCH AND BRAKE (CONTINUED) (06) - POWER TRAIN

A157577

PTO

CLUTCH ASSEMBLY - PTO (Continued from Figure 6-240), Includes: Ref. 47 - 58 and 1 - 46 on Figure 6-242

1шт.

47

A163825

YOKE

- output

1шт.

48

A75205

SEALING WASHER

- yoke

1шт.

49

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- output yoke

1шт.

50

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

54

A157765

BRACKET

- support, upper rear

1шт.

55

A157766

PLATE ASSY.

PLATE - support, bracket

1шт.

56

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

57

95-6

WASHER,3/8"

- flat, 7/16 x 5/64 inch (11 x 25 x 2 mm)

2шт.

58

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

60

A157575

SHIM

- bearing, 0.002 inch (0.050 mm)

1шт.

60

A168761

SHIM

- bearing, 0.010 inch (0.25 mm)

1шт.

60

A168762

SHIM

- bearing, 0.013 inch (0.33 mm)

1шт.

60

A168763

SHIM

- bearing. 0.017 inch (0.42 mm)

1шт.

60

A168764

SHIM

- bearing, 0.022 inch (0.55 mm)

1шт.

61

A168970

GASKET

- front housing

1шт.

62

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

63

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

64

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

65

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

66

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 mm)

2шт.

67

129-107

NUT,5/8"-11, G5

2шт.

68

95-6

WASHER,3/8"

- flat, 7/16 x 5/64 inch (17 x 33 x 3 mm)

2шт.
