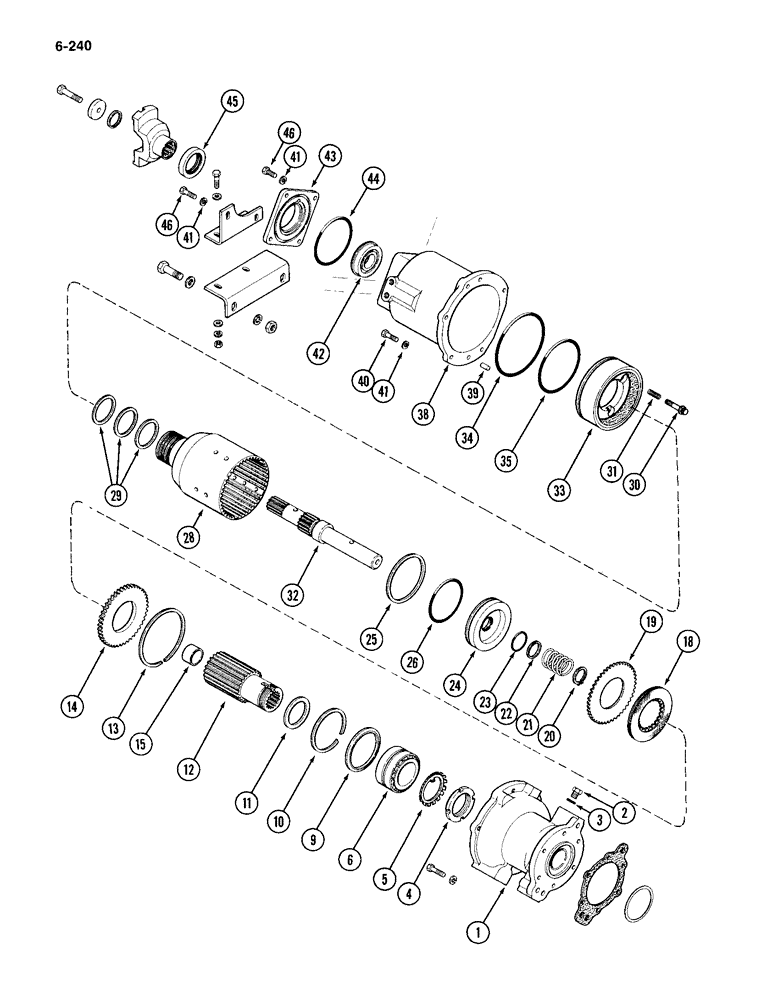

Запчасти Case IH 4994 (6-240) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

A157577

PTO

CLUTCH ASSEMBLY - PTO, Includes: Ref. 1 - 46 and 47 - 58 on Figure 6-242

1шт.

1

A157576

HOUSING

- clutch, front

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Assy, 1/4 tube, Incl Ref 3 Hex Soc, 7/16"-20 ORB

3шт.

3

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

4

131-1064

BEARING LOCK NUT

- hex lock, 18 NS

1шт.

5

192-364

LOCK WASHER

WASHER - lock, TW 126

1шт.

6

A152343

BEARING, ROLLER, CYL,65mm ID x 105mm OD x 54mm W

BEARING ASSEMBLY - taper

1шт.

9

A157573

SPACER

- retainer, bearing

1шт.

10

A50132

RING

- snap, bearing

1шт.

11

A158194

SPACER

- backup, bearing

1шт.

12

A157571

DRIVE SHAFT

SHAFT - input

1шт.

13

A50639

RING

- snap, backup plate

1шт.

14

A50643

PLATE

- backup

1шт.

15

A138866

BUSHING

- output shaft

1шт.

18

A67130

PLATE

- clutch, friction

14шт.

19

A67156

PLATE

- clutch, steel

14шт.

20

T37909

SNAP RING,#150, Ext

Ring, Snap, , return spring #150, Ext

1шт.

21

A63260

SPRING

- piston, return

1шт.

22

A63258

SEAL

- piston internal

1шт.

23

A155964

O-RING,1.812" ID x 0.073" Thk

O-RING - piston, internal

1шт.

24

A155962

PISTON

- clutch

1шт.

25

A50265

SEAL - piston, external

1шт.

26

A155963

SEAL

O-RING - piston, external

1шт.

28

A144127

CARRIER

- piston clutch

1шт.

29

A58384

RING

- seal, carrier

3шт.

30

166-1005

12 PT SCREW,Lock, Flg, 3/8" - 16 x 2", Gr 8

SCREW - flanged 12 point head, 3/8 NC x 2 inch

3шт.

31

A155605

SPRING

- return, compression

3шт.

32

A157572

SHAFT

- output

1шт.

33

A148391

PISTON

ASSEMBLY - PTO brake

1шт.

34

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- brake piston, outer

1шт.

35

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- brake piston, inner, BM4 VECTOR,BM5 VECTOR,BM6 VECTOR, Part of 824746, Use with HYDROPNEUMATIC ADJUSTMENT

1шт.

38

A144126

HOUSING

- PTO clutch

1шт.

39

A8134

PIN

- locating

2шт.

40

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

40

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

42

G13606

BALL BEARING

BEARING - ball

1шт.

43

A152916

BEARING CAP

CAP - clutch housing

1шт.

44

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- housing cap

1шт.

45

A76014

OIL SEAL

- oil, output yoke

1шт.

46

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

46

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.
