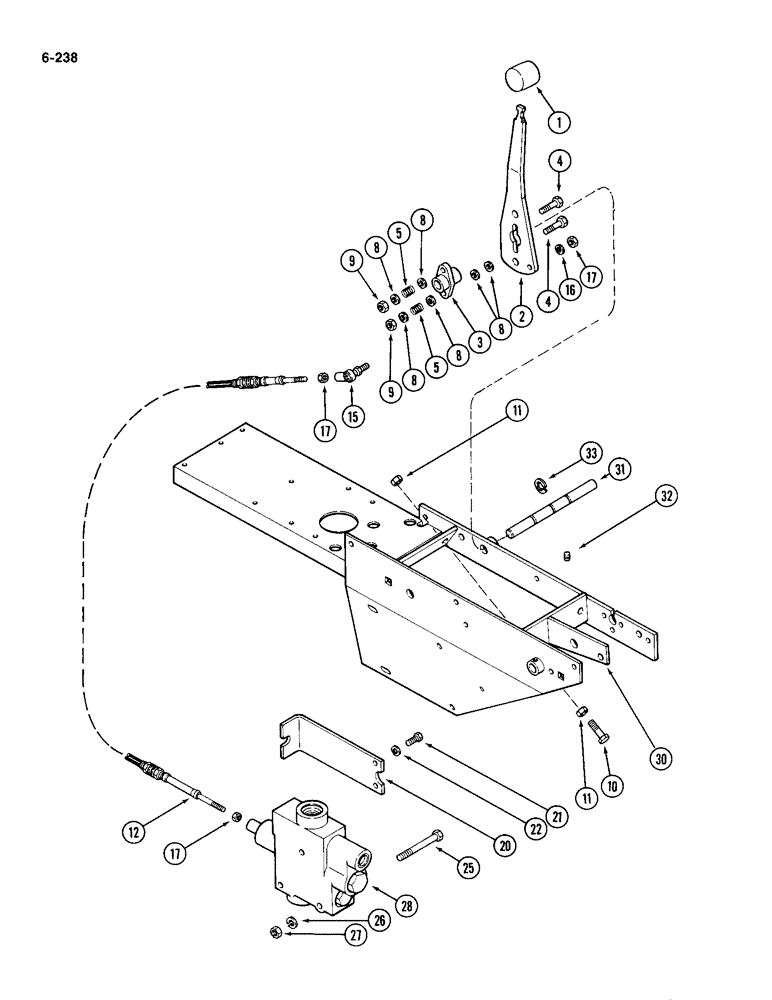

Запчасти Case IH 4994 (6-238) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A177437

KNOB

- control lever (Yellow) (Replaces A167959)

1шт.

2

A169077

LEVER

- PTO control

1шт.

3

A162299

BEARING,15.95mm ID

- lever

1шт.

4

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

5

A169282

VALVE SPRING

SPRING - return, detent and lever

2шт.

8

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 1/16 inch (6 x 13 x 2 mm)

6шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A59434

CABLE

ASSEMBLY - control

1шт.

15

A75447

BALL JOINT

JOINT ASSEMBLY - ball, cable

1шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

17

129-37

NUT,#10-32

3шт.

20

A161005

BRACKET

- mounting, cable

1шт.

21

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

25

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - PTO control and regulator (See Figure 8-268, 8-270)

1шт.

30

REF

INSTRUCTION

CONSOLE - control (See Figure 9-358)

1шт.

31

A162325

SHAFT

- control lever

1шт.

32

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket headless, 1/4 NC x 1/4 inch

1шт.

33

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.
