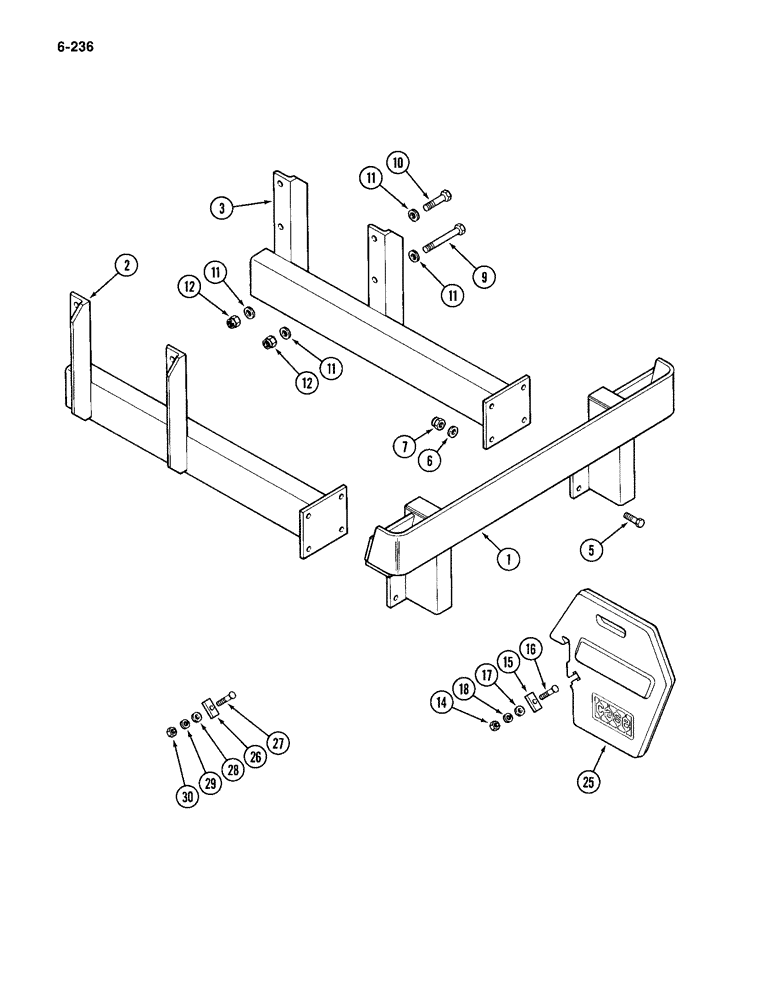

Запчасти Case IH 4994 (6-236) - FRONT END WEIGHTS (06) - POWER TRAIN

A169352

WEIGHT ATTACHMENT - front end, Includes: Ref. 1 - 18

1шт.

1

A169194

FRAME

- front, weight

1шт.

2

A169192

FRAME ASSY

FRAME - weight, right-hand

1шт.

3

A169193

FRAME ASSY

FRAME - weight, left-hand

1шт.

5

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

6

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 mm)

16шт.

7

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

16шт.

9

28-1292

BOLT - hex, 3/4 NF x 5-3/4 inch

8шт.

10

28-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- hex, 3/4 NF x 3-1/4 inch

8шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

32шт.

12

131-186

LOCK NUT,3/4"-16, GB

NUT - hex lock, 3/4 inch NF

16шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

9шт.

15

A145919

CLAMP

- front weight

9шт.

16

A169139

SQUARE BOLT

- weight clamp

9шт.

17

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 mm)

9шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

25

A169111

WEIGHT

- front end, 100 lbs (45 kg) (Maximum of 30) (Machinery Item)

1шт.

A177102

KIT

ATTACHMENT - hardware (Machinery Item), Includes: Ref. 26 - 30

1шт.

26

A145919

CLAMP

- front weight

1шт.

27

A169139

SQUARE BOLT

- weight clamp

1шт.

28

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 mm)

1шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
