Запчасти Case IH 4994 (6-232) - DUAL WHEELS (06) - POWER TRAIN

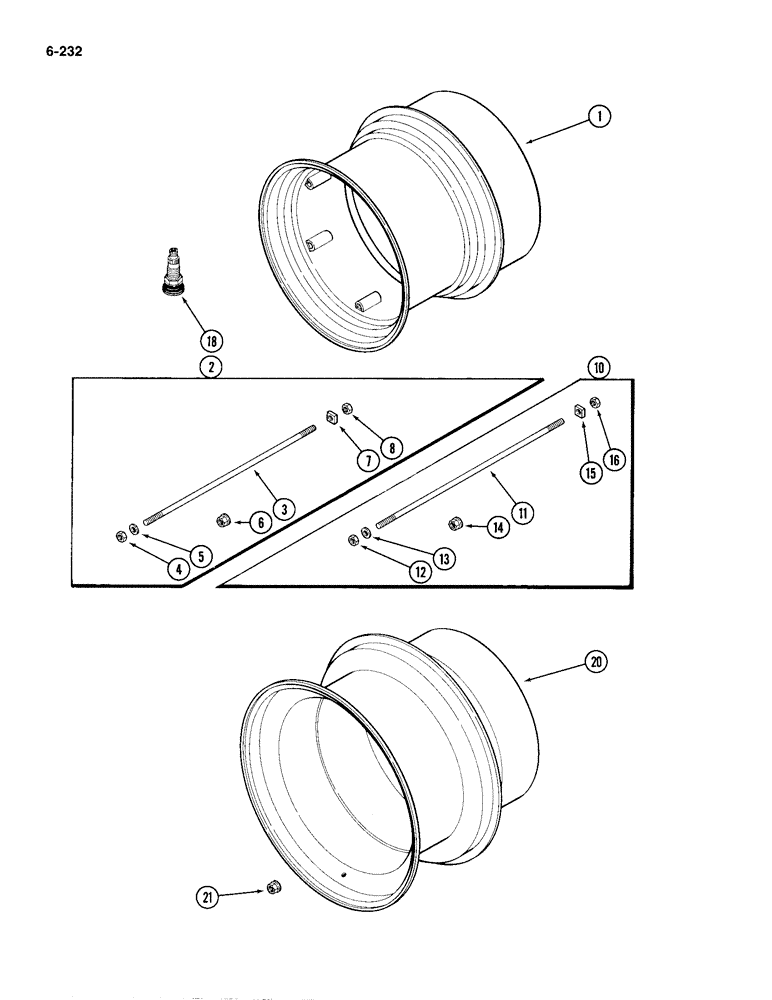

Схема запчастей Case IH 4994 - (6-232) - DUAL WHEELS (06) - POWER TRAIN
3
20
5
18
1
7
11
14
4
21
6
13
8
16
10
2
15
12

№

Артикул

Название

Примечание

Количество

A180304

WHEEL ATTACHMENT - outer dual, for 24.5 x 32 inch (622 x 813 mm) R1 tire (Machinery Item) (Order Ref 2 or 10 with attachment), Includes: Ref. 1

1шт.

A180308

WHEEL ATTACHMENT - outer dual, for 24.5 x 32 inch (622 x 813 mm) R2 tire (Machinery Item) (Order Ref 2 or 10 with attachment), Includes: Ref. 1

1шт.

A180303

WHEEL ATTACHMENT - outer dual, for 24.5 x 32 inch (622 x 813 mm) tire (Machinery Item) (Order Ref 2 or with attachment), Includes: Ref. 1

1шт.

A180306

WHEEL ATTACHMENT - outer dual, for 24.5 x 32 inch (622 x 813 mm) radial tire (Machinery Item) (Order Ref 2 or 10 with attachment), Includes: Ref. 1

1шт.

1

A180077

WHEEL

- outer dual

4шт.

2

A176673

HARDWARE KIT - dual wheel mounting (Used to mount 24.5 x 32 rim to 24.5 x 32 tire) (Machinery Item), Includes: Ref. 3 - 8

1шт.

3

A165667

ROD

- dual wheel

24шт.

4

129-108

NUT,3/4"-10, G5

24шт.

5

D31328

WASHER

- flat, hardened

24шт.

6

A176672

NUT

-, Serial Range: wheel-axle

48шт.

7

129-200

NUT,Sq, 3/4"-10

- square, 3/4 inch NC

24шт.

8

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

24шт.

10

A176674

HARDWARE KIT - dual wheel mounting (Used to mount 24.5 x 32 rim to 30.5 x 32 tire) (Machinery Item), Includes: Ref. 11 - 16

1шт.

11

A167860

ROD

- dual wheel

24шт.

12

129-108

NUT,3/4"-10, G5

24шт.

13

D31328

WASHER

- flat, hardened

24шт.

14

A176672

NUT

-, Serial Range: wheel-axle

48шт.

15

129-200

NUT,Sq, 3/4"-10

- square, 3/4 inch NC

24шт.

16

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

24шт.

18

A20058

VALVE STEM

VALVE STEM - Tubeless tire

4шт.

A176655

WHEEL ATTACHMENT - outer dual, for 20.8 x 38 inch (528 x 965 mm) tire (Machinery Item), Includes: Ref. 20 and 21

1шт.

A176656

WHEEL ATTACHMENT - outer dual, for 20.8 x 38 inch (528 x 965 mm) R1 tire (Machinery Item), Includes: Ref. 20 and 21

1шт.

A176658

WHEEL ATTACHMENT - outer dual, for 20.8 x 38 inch (528 x 965 mm) R2 tire (Machinery Item), Includes: Ref. 20 and 21

1шт.

A176660

WHEEL ATTACHMENT - outer dual, for 20.8 to 38 inch (528 x 965 mm) radial tire (Machinery Item), Includes: Ref. 20 and 21

1шт.

20

A176616

WHEEL

- outer dual

4шт.

21

A176672

NUT

- wheel mounting

48шт.

Выбрано товаров: 26
