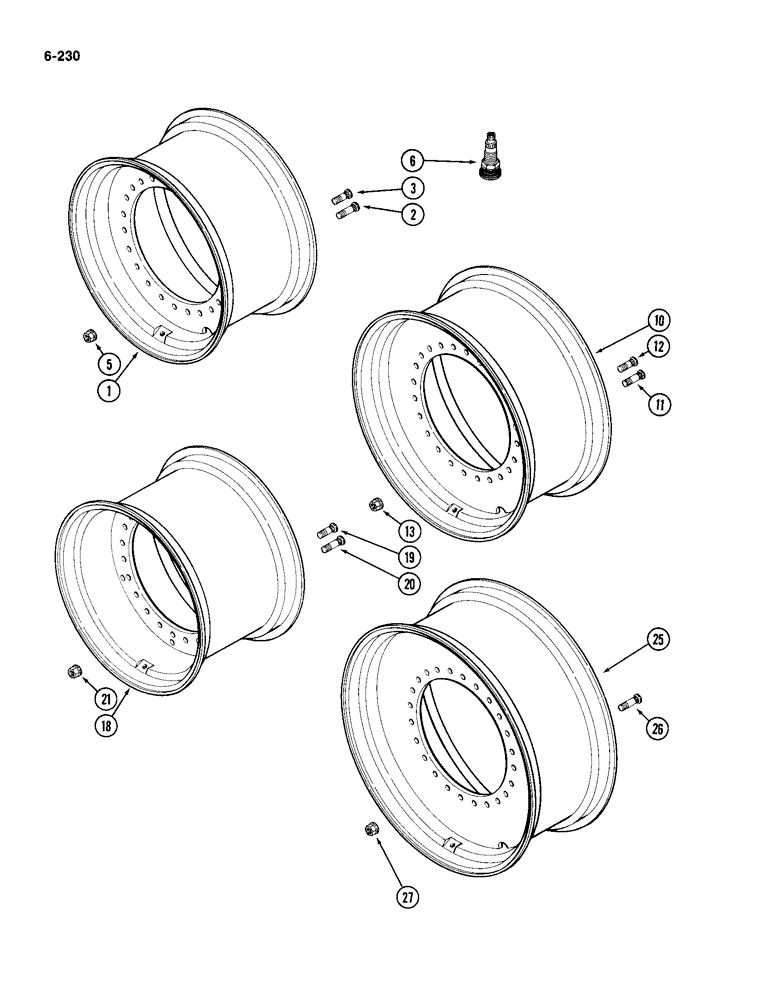

Запчасти Case IH 4994 (6-230) - SINGLE WHEELS (06) - POWER TRAIN

1

A176613

WHEEL

- for 23.1 x 34 inch (587 x 864 mm) tire

4шт.

2

A179105

WHEEL BOLT

BOLT - mounting

24шт.

Ref #2 - (3 1/2" Long)

1шт.

3

A179106

STUD

BOLT - mounting

24шт.

Ref #3 - (3" Long)

1шт.

5

A176672

NUT

- wheel mounting

48шт.

6

A20058

VALVE STEM

VALVE STEM - Tubeless tire

4шт.

10

A176615

WHEEL

- for 20.8 x 38 inch (528 x 965 mm) tire

4шт.

11

A179105

WHEEL BOLT

BOLT - mounting

24шт.

12

A179106

STUD

BOLT - mounting

24шт.

13

A176672

NUT

- wheel mounting

48шт.

18

A180076

WHEEL

- for 24.5 x 32 inch tire (622 x 813 mm)

4шт.

18

A180078

WHEEL

- for 30.5 x 32 inch tire (889 x 812.8 mm)

4шт.

19

A179106

STUD

BOLT - mounting

24шт.

20

A179105

WHEEL BOLT

BOLT - mounting

24шт.

21

A176672

NUT

- wheel

48шт.

25

A176617

WHEEL

- for 20.8 x 42 inch tire (528 x 067 mm)

4шт.

26

A179105

WHEEL BOLT

STUD - mounting

24шт.

26

A179106

STUD

- mounting

24шт.

27

A176672

NUT

- wheel mounting

48шт.
