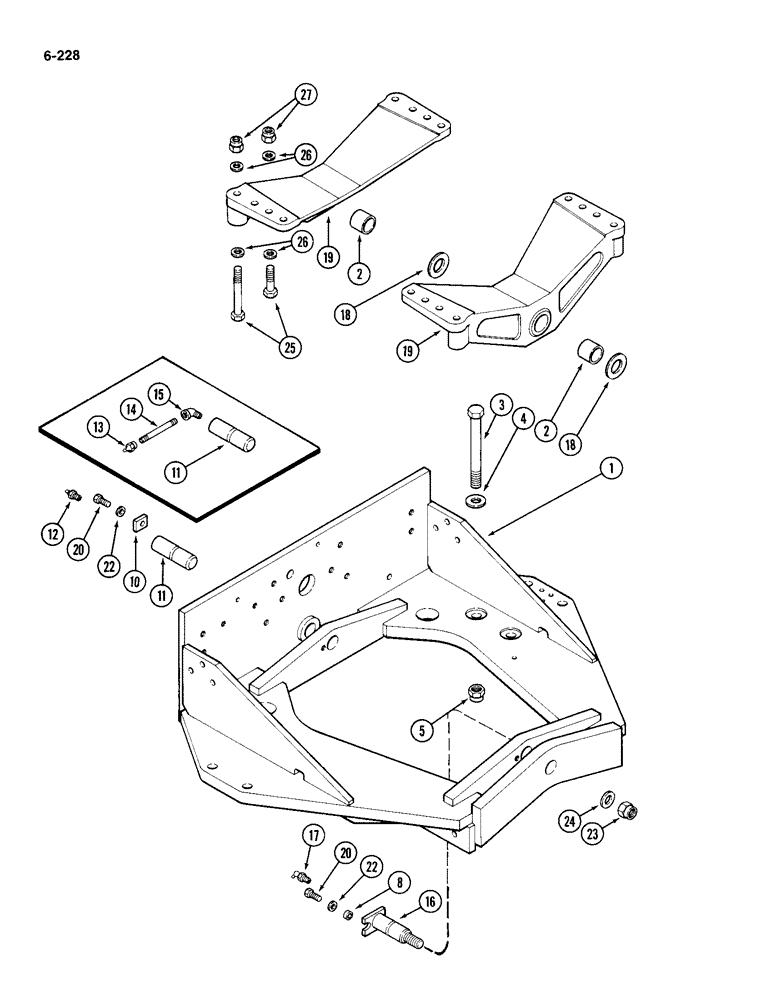

Запчасти Case IH 4994 (6-228) - REAR AXLE PIVOT TRUNNION (06) - POWER TRAIN

1

A166802

TRUNNION

- rear axle pivot

1шт.

2

A142146

BUSHING

- pivot

2шт.

3

28-18176

BOLT,Hex, 1-1/8" - 12 x 11", Gr 8

- hex, 1-1/8 NF x 11 inch

8шт.

4

A152201

WASHER

- trunnion bolt

8шт.

5

131-189

LOCK NUT,1 1/8"-12, GB

NUT - hex lock, 1-1/8 inch NF

8шт.

8

A148908

SPACER

- trunnion pin

1шт.

10

A161598

RETAINER

- trunnion pin

1шт.

11

A166799

PIN

- rear pivot

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8 inch PT straight (Without PTO)

1шт.

13

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - 1/8 inch female PT straight (with PTO)

1шт.

14

221-117

FITTING

NIPPLE - fitting, 1/8 inch PT x 6 inch (with PTO)

1шт.

15

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree, 1/8 inch male x 1/8 inch female 1/2 PT (with PTO)

1шт.

16

A166801

PIN

- front pivot

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

A142147

WASHER

- thrust, front pivot

2шт.

19

A165817

SUPPORT

- trunnion anchor

2шт.

20

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Nylok)

2шт.

22

L30674

WASHER

- pivot bolt

2шт.

23

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

24

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- front pivot pin

1шт.

25

28-14112

BOLT,Hex, 7/8" - 14 x 7", Gr 8

- hex, 7/8 NF x 7 inch, Grade 8

4шт.

25

28-1456

BOLT - hex, 7/8 NF x 3-1/2 inch, Grade 8

12шт.

26

A57033

WASHER

- support bolt

32шт.

27

131-187

LOCK NUT,7/8"-14, GB

NUT - hex lock, 7/8 inch NF

16шт.
