(6-226) - REAR STEERING AXLE, DIFFERENTIAL (CONTINUED)

Запчасти Case IH 4994 (6-226) - REAR STEERING AXLE, DIFFERENTIAL (CONTINUED) (06) - POWER TRAIN

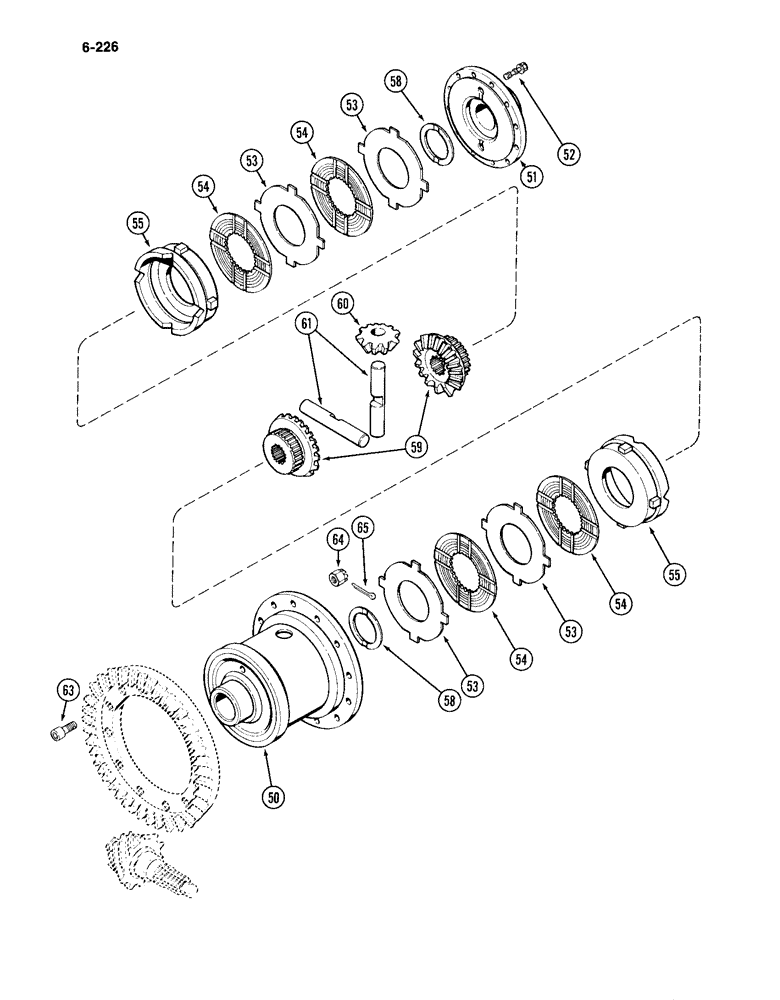

Схема запчастей Case IH 4994 - (6-226) - REAR STEERING AXLE, DIFFERENTIAL (CONTINUED) (06) - POWER TRAIN
54
54
58
53
65
54
60
63
53
52
58
53
53
50
54
51
55
59
64
55
61
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A179085

AXLE

ASSEMBLY - rear steering (Continued from Figure 6-224), Includes: Ref. 50 - 65, carrier assembly, and 1 - 47 on Figure 6-224, Start Serial: 8865501

1шт.

A168863

AXLE

ASSEMBLY - rear steering (Order A179085), Includes: Ref. 50 - 65, carrier assembly, and 1 - 47 on Figure 6-224, Serial Range: -8865501

1шт.

A48790

DIFFERENTIAL

DISC AND GEAR ASSEMBLY - differential, Includes: Ref. 50 - 61

1шт.

50

A168782

HOUSING

- gear and disc

1шт.

51

A168783

COVER

- housing

1шт.

52

A168784

BOLT

- expansion, cover

12шт.

A168778

DIFFERENTIAL

DISC KIT - limited slip, Includes: Ref. 53 - 55

1шт.

53

A52043

LARGE PLATE

PLATE - driven (3.9 mm)

1шт.

53

A52044

LARGE PLATE

PLATE - driven (4.0 mm)

1шт.

53

A52045

LARGE PLATE

PLATE - driven (4.1 mm)

1шт.

54

A52046

FIN

PLATE - drive

4шт.

55

A52047

OIL SEAL

RING - thrust

2шт.

A168777

GEAR

KIT - differential slip, Includes: Ref. 58 - 61

1шт.

58

A52039

WASHER

- thrust

2шт.

59

A52040

GEAR WHEEL

GEAR - side

2шт.

60

A52041

WHEEL

GEAR - pinnion

4шт.

61

A52042

GEAR

SHAFT - pinnion gear

2шт.

NSS

NOT SOLD SEPARAT

RIVET - gear and disc housing (Order Ref 63, 64 and 65) (Reference No. A48468)

12шт.

63

A179151

BOLT

- hex socket, M16 x 1.5 mm (Grade 10.9)

12шт.

64

A179149

NUT

- castle, M16 (Grade 8.8)

12шт.

65

A179148

PIN - cotter, 4 x 32 mm

12шт.

A179758

DIFFERENTIAL ASSY

CARRIER ASSEMBLY - differential, complete (Includes Parts on Figures 6-224 and 6-226)

1шт.
