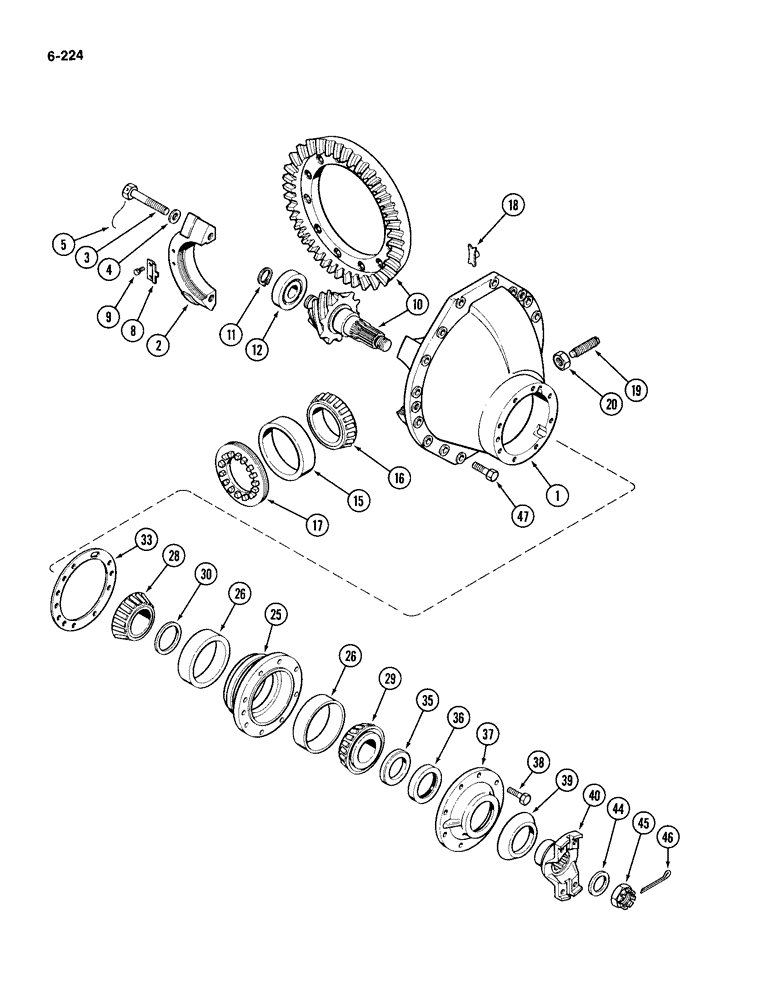

Запчасти Case IH 4994 (6-224) - REAR STEERING AXLE, DIFFERENTIAL (06) - POWER TRAIN

A179085

AXLE

ASSEMBLY - rear steering, Includes: Ref. 1 - 47, 50 - 65, and carrier assembly on Figure 6-226, Start Serial: 8865501

1шт.

A168863

AXLE

ASSEMBLY - rear steering (Order A179085), Includes: Ref. 1 - 47, 50 - 65, and carrier assembly on Figure 6-226, Serial Range: -8865501

1шт.

1

A52229

CARRIER

ASSEMBLY - differential, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

3

A48947

BOLT

- hex, M18 x 115 mm

4шт.

4

A48928

WASHER

- bearing bolt, 3 mm

4шт.

5

391-624

WIRE - lock, No. 16 x 16 inch (Order 391-636 and, Serial Range: cut-length)

1шт.

8

A48726

PLATE, LOCKING

PLATE - lock

2шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

10

A48789

GEAR-SET

GEAR SET - differential pinnion

1шт.

11

A48760

SNAP RING,M40, Ext

RING - snap

1шт.

12

A48759

ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - roller

1шт.

15

A48722

BEARING CUP,152.4 mm OD x 39.7 mm

CUP - bearing

2шт.

16

A48720

ROLLER BEARING,92.1 mm ID x 36.3 mm

CONE - bearing

2шт.

17

A48758

NUT

- adjusting

2шт.

18

A48728

BLOCK

- thrust

1шт.

19

A48727

ADJUSTER,M22 x 1.5 x 80 mm

SCREW - adjusting

1шт.

20

A52313

NUT

- hex, M22 x 1.5 mm

1шт.

25

A48776

BEARING

BUSHING ASSEMBLY - bearing cup, Includes: Ref. 26

1шт.

26

A52226

BEARING CUP,136.5 mm OD x 36.5 mm

CUP - bearing

2шт.

28

A52228

BEARING, ROLLER,71.4 mm ID x 46 mm

CONE - bearing

1шт.

29

A48775

ROLLER BEARING,66.7 mm ID x 46 mm

CONE - bearing

1шт.

30

A48762

SPACER

RING - spacer, 14.4 mm

1шт.

30

A48763

SPACER

RING - spacer, 14.3 mm

1шт.

30

A48764

SPACER

RING - spacer, 14.2 mm

1шт.

30

A48765

SPACER

RING - spacer, 14.1 mm

1шт.

30

A48766

SPACER

RING - spacer, 14 mm

1шт.

30

A48767

SPACER

RING - spacer, 13.8 mm

1шт.

30

A48769

SPACER

RING - spacer, 13.6 mm

1шт.

30

A48771

SPACER

RING - spacer, 13.4 mm

1шт.

30

A48772

SPACER

RING - spacer, 13.3 mm

1шт.

30

A48773

SPACER

RING - spacer, 13.2 mm

1шт.

30

A48774

SPACER

RING - spacer, 13.1 mm

1шт.

33

A48777

SPACER

WASHER - spacer, 1 mm

1шт.

33

A48778

SPACER

WASHER - spacer, 0.5 mm

1шт.

33

A48779

SPACER

WASHER - spacer, 0.3 mm

1шт.

33

A48780

SPACER

WASHER - spacer, 0.1 mm

1шт.

33

A48781

SPACER

WASHER - spacer, 0.15 mm

1шт.

33

A48782

SHIM

WASHER - spacer, 0.2 mm

1шт.

35

A48784

WASHER

- bearing

1шт.

36

A48750

SEAL

- shaft, differential

1шт.

37

A48783

CAP

- seal

1шт.

38

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

39

A48788

SHIELD

SHEILD - dust

1шт.

40

A52225

YOKE

- drive

1шт.

44

A48785

SHIM

WASHER - drive flange

1шт.

45

A48786

NUT

- castle, pinnion

1шт.

46

632-737

COTTER PIN,M6.3 x 71

PIN - cotter, M6 x 3 x 71 mm

1шт.

47

A48830

BOLT

- hex, M16 x 55 mm

2шт.

47

826-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.
