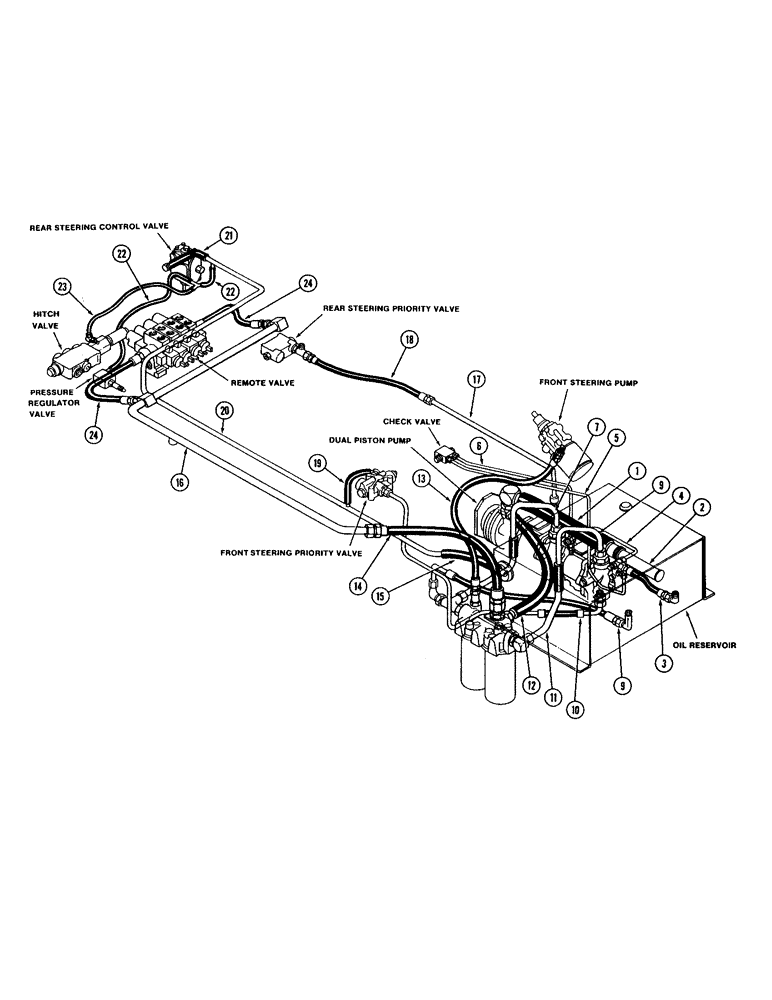

Запчасти Case IH 4994 (1-07) - PICTORIAL INDEX, TRACTOR HYDRAULICS, P.I.N. 8865846 AND AFTER (00) - PICTORIAL INDEX

1

Hydraulic pump inlet hose, Page 8-277

1шт.

2

Suction line screen, Page 8-275

1шт.

3

Hydraulic return hose, Page 8-277

1шт.

4

Hydraulic pump drain tube, Page 8-277

1шт.

5

Front compensator to check valve tube, Page 8-277

1шт.

6

Rear compensator to check valve tube, Page 8-277

1шт.

7

Pump to filter rear tube, Page 8-281

1шт.

8

Pump to filter front tube, Page 8-281

1шт.

9

Filter to reservoir return hose, Page 8-281

1шт.

10

Pump to front steering priority valve tube, Page 8-281

1шт.

11

Pump to filter front tube, Page 8-281

1шт.

12

Filter to hydraulic pump hose, Page 8-281

1шт.

13

Filter to front steering pump, Page 8-281

1шт.

14

Filter to remote valve hose, Page 8-281

1шт.

15

Rear steering drain front hose, Page 5-139

1шт.

16

Remote drain tube to reservoir, Page 8-301

1шт.

17

Pump to rear priority valve tube, Page 5-139

1шт.

18

Pump to rear priority valve hose, Page 5-139

1шт.

19

Remote tube to front priority valve hose, Page 5-139

1шт.

20

Rear steering drain tube, Page 5-139

1шт.

21

Rear steering drain rear hose, Page 5-139

1шт.

22

Hitch and rear steer drain hose, Page 8-333

1шт.

23

Hitch drain hose, Page 8-333

1шт.

24

Remote valve drain hose, Page 8-301

1шт.
