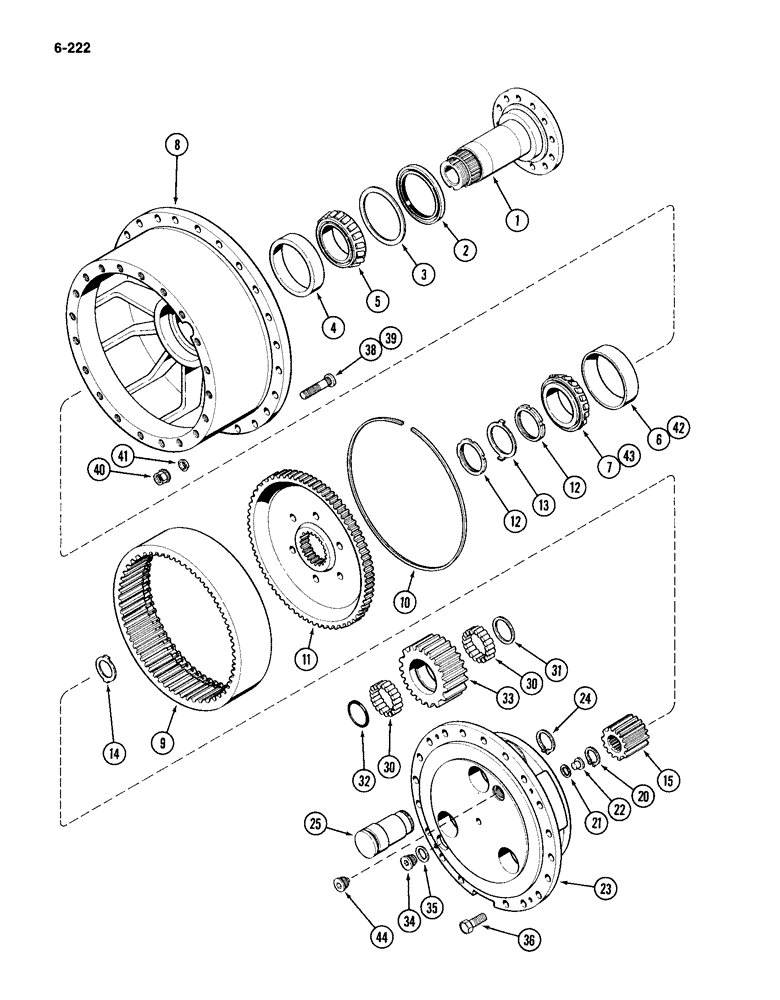

Запчасти Case IH 4994 (6-222) - REAR STEERING AXLE, PLANETARIES (06) - POWER TRAIN

A179085

AXLE

ASSEMBLY - rear steering, Includes: Ref. 1 - 44, Start Serial: 8865501

1шт.

A168863

AXLE

ASSEMBLY - rear steering (Order A179085), Includes: Ref. 1 - 44, Serial Range: -8865501

1шт.

1

REF

INSTRUCTION

CARRIER - hub (See Figure 6-220)

2шт.

2

A48853

SEAL

- shaft

2шт.

3

A48852

SHIM

- washer, seal

2шт.

4

A48845

BEARING CUP,157.2 mm OD x 36.5 mm

CUP - bearing

2шт.

5

A48835

ROLLER BEARING,101.6 mm ID x 36.1 mm

CONE - bearing

2шт.

6

A48848

BEARING CUP,160 mm OD x 41 mm

CUP - bearing (Used with A168863 axle)

2шт.

7

A48846

ROLLER BEARING,100 mm ID x 40 mm

CONE - bearing (Used with A168863 axle)

2шт.

8

A52247

HUB

- planetary (Used with A179085 axle)

1шт.

8

A48793

HUB

- planetary (Used with A168863 axle)

2шт.

9

A48869

SHAFT

GEAR - ring

2шт.

10

A48870

RING, SNAP

RING - retaining

2шт.

11

A48882

GEAR

- carrier

2шт.

12

A48926

NUT

- castle, gear and hub retaining

4шт.

13

A48860

LARGE PLATE

PLATE - lock

2шт.

14

A48861

THRUST WASHER

- lock, thrust

2шт.

15

A48867

GEAR

- sun

2шт.

20

A48862

OIL SEAL

RING - snap

2шт.

21

A48878

SPACER

- washer, 1 mm

1шт.

21

A48879

SPACER

- washer, 0.5 mm

1шт.

21

A48880

SPACER

- washer, 0.3 mm

1шт.

21

A48881

SPACER

- washer, 0.2 mm

1шт.

22

A48877

PLUG

- detent

2шт.

23

A48871

CARRIER

- planetary

2шт.

24

A48875

RING, SNAP

RING - snap

6шт.

25

A48872

PIN

- planetary

6шт.

30

A48873

ROLLER

- gear, planetary

180шт.

31

A48874

WASHER, THRUST

WASHER - thrust

6шт.

32

A48876

O-RING,67.2 mm ID x 5.7 mm OD

- seal

6шт.

33

A48868

GEAR, PLANETARY

GEAR - planetary

6шт.

34

A48885

PLUG

- screw

2шт.

35

A48884

O-RING,30 mm ID x 36 mm OD

RING - seal

2шт.

36

A48865

BOLT

- hex, M22 x 60 mm

38шт.

38

A179105

WHEEL BOLT

BOLT - wheel mounting, M22 x 76 mm Special

24шт.

39

A179106

STUD

BOLT - wheel mounting, M22 x 98 mm Special

24шт.

40

A176672

NUT

- wheel mounting, M22 x 1.5 mm Special

48шт.

41

A52248

GUIDE RING

RING - centering

24шт.

A52286

BEARING ASSY

BEARING ASSEMBLY - hub (Used with A179085 axle), Includes: Ref. 42 - 44

2шт.

42

NSS

NOT SOLD SEPARAT

CUP - bearing (Reference No. A52250)

1шт.

43

NSS

NOT SOLD SEPARAT

CONE - bearing (Reference No. A52249)

1шт.

44

A48885

PLUG

2шт.
