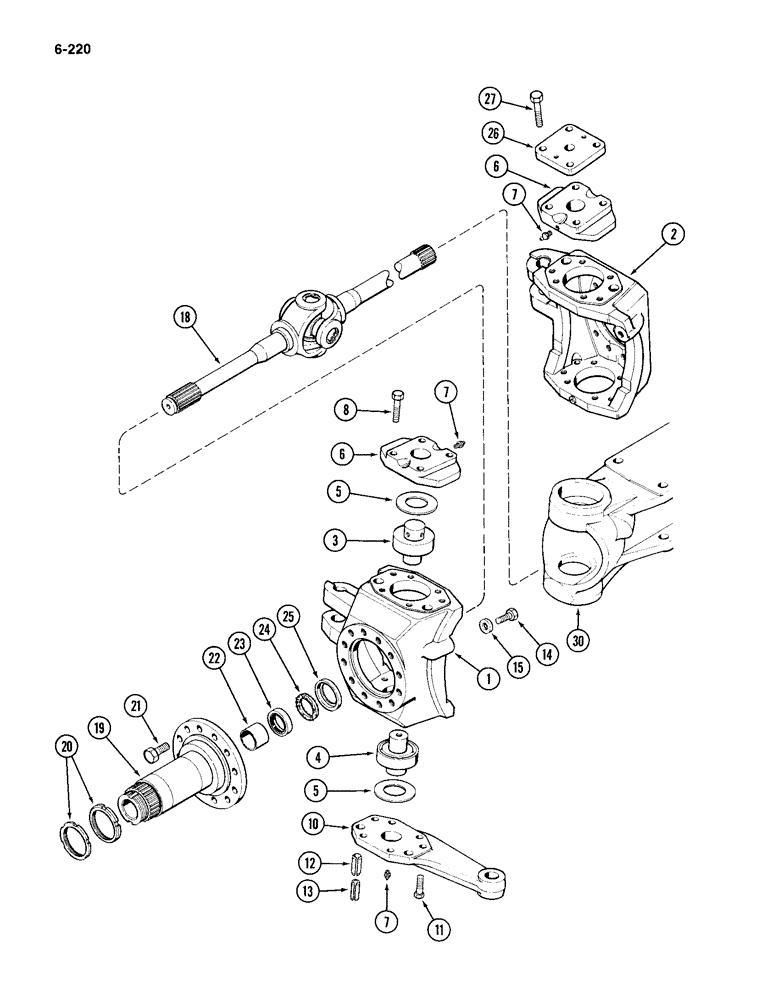

Запчасти Case IH 4994 (6-220) - REAR STEERING AXLE, STEERING KNUCKLE AND SHAFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A179085
AXLE
ASSEMBLY - rear steering, Includes: Ref. 1 - 30, Start Serial: 8865501
1шт.
A168863
AXLE
ASSEMBLY - rear steering (Order A179085), Includes: Ref. 1 - 30, Serial Range: -8865501
1шт.
1
A48802
HOUSING
KNUCKLE - steering, right-hand
1шт.
2
A48794
HOUSING
KNUCKLE - steering, left-hand
1шт.
3
A48806
- king, upper
2шт.
4
A48810
PIN
- king, lower
2шт.
5
A48836
SHIM,3mm Thk
King pin 3mm Thk
1шт.
5
A48837
SHIM,3.1mm Thk
King pin 3.1mm Thk
1шт.
5
A48838
SHIM,3.2mm Thk
King pin 3.2mm Thk
1шт.
5
A48839
SHIM,3.5mm Thk
King pin 3.5mm Thk
1шт.
5
A48840
SHIM,2.7mm Thk
King pin 2.7mm Thk
1шт.
5
A44841
WHEEL
SHIM - king pin, 2.8 mm
1шт.
5
A48842
SHIM,2.9mm Thk
King pin 2.9mm Thk
1шт.
5
A48843
SHIM,3.3mm Thk
King pin 3.3mm Thk
1шт.
5
A48844
SHIM,3.4mm Thk
King pin 3.4mm Thk
1шт.
6
A48849
CAP
- king pin
2шт.
7
A48866
FITTING
- grease
4шт.
8
A48851
BOLT
- hex, M18 x 65 mm, right-hand
4шт.
8
A48854
BOLT
- hex, M18 x 80 mm, left-hand
4шт.
10
A48987
ARM
- steering, right-hand (Shown)
1шт.
10
A48986
ARM
- steering, left-hand
1шт.
11
A48984
BOLT
- hex socket head, M18 x 50 mm
8шт.
11
A48985
BOLT
- hex socket head, M16 x 70 mm
4шт.
12
A52243
PIN
- roll
4шт.
13
A52244
PIN
- roll
4шт.
14
A48815
SCREW
BOLT - stop, axle
4шт.
15
A48818
WASHER
- spacer, 10 mm
1шт.
15
A48819
WASHER
- spacer, 9 mm
1шт.
15
A48820
WASHER
- spacer, 8 mm
1шт.
15
A48821
WASHER
- spacer, 6 mm
1шт.
15
A48822
WASHER
- spacer, 6.5 mm
1шт.
15
A48823
WASHER
- spacer, 7 mm
1шт.
15
A48824
WASHER
- spacer, 7.5 mm
1шт.
15
A48825
WASHER
- spacer, 8.5 mm
1шт.
15
A48826
WASHER
- spacer, 9.5 mm
1шт.
15
A48827
WASHER
- spacer, 10.5 mm
1шт.
15
A48825
WASHER
- spacer, 11 mm
1шт.
18
A48801
UNIVERSAL JOINT
SHAFT ASSEMBLY - universal joint
2шт.
19
A48792
HUB
ASSEMBLY - carrier (Used with A168863 axle), Includes: Ref. 20
2шт.
19
A52245
CARRIER
HUB ASSEMBLY - carrier (Used with A179085 axle, Includes: Ref. 20
2шт.
20
A48926
NUT
- slotted, hub
2шт.
21
826-20050
BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd
- hex, M20 x 50 mm
20шт.
21
A48833
BOLT
- hex, M20 x 45 mm
4шт.
22
A48800
SLEEVE
- carrier hub
2шт.
23
A48834
SEAL
- shaft
2шт.
24
A48817
SEAL
- felt, shaft
2шт.
25
A48808
OIL SEAL
RING - angle, shaft
2шт.
26
A52242
COVER
- king pin cap
1шт.
27
A48854
BOLT
- hex, M18 x 80 mm
4шт.
30
REF
INSTRUCTION
HOUSING - axle and differential, rear (See Figure 6-219)
1шт.
Выбрано товаров: 50
