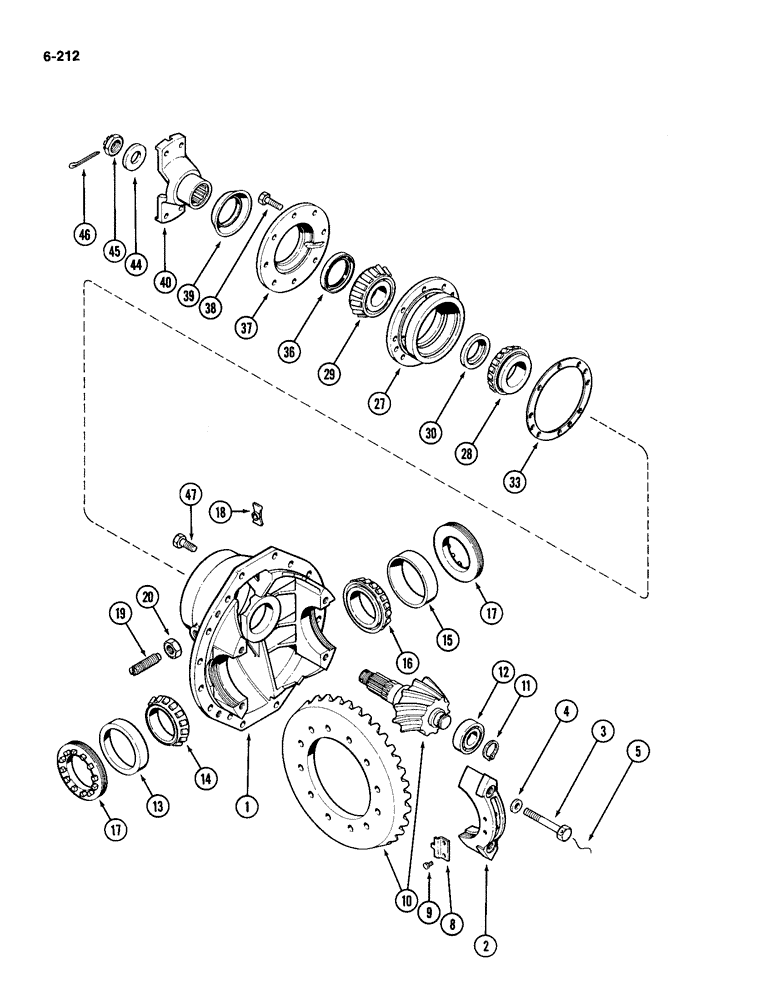

Запчасти Case IH 4994 (6-212) - FRONT STEERING AXLE, PRIOR TO P.I.N. 8865501, DIFFERENTIAL (06) - POWER TRAIN

A158649

AXLE

ASSEMBLY - front steering (Order A179084), Includes: Ref. 1 - 47

1шт.

1

A48465

CARRIER

ASSEMBLY - differential, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

3

A48927

BOLT

- bearing cap

4шт.

4

A48948

WASHER

- cap bolt

4шт.

5

391-624

WIRE - lock, No. 16 x 16 inch (406 mm) (Order 391-636 and, Serial Range: cut-length)

2шт.

5

391-636

ELECTRICAL WIRE

WIRE - bulk, 50 inch (1270 mm)

1шт.

8

A48726

PLATE, LOCKING

PLATE - lock

2шт.

9

A52315

BOLT - hex, M8 x 12 mm

4шт.

10

A48755

GEAR-SET

GEAR SET - differential pinnion

1шт.

11

A48730

RING, SNAP

RING - snap

1шт.

12

A48729

ROLLER ASSY.

BEARING - roller

1шт.

13

A48721

BEARING CUP,125.4 mm OD x 25.4 mm

CUP - bearing

1шт.

14

A48469

ROLLER BEARING,83.3 mm ID x 25.4 mm

CONE - bearing

1шт.

15

A48724

BEARING, CUP

CUP - bearing

1шт.

16

A48723

BEARING

CONE - bearing

1шт.

17

A48725

NUT

- adjusting

2шт.

18

A48728

BLOCK

- thrust

1шт.

19

A48727

ADJUSTER,M22 x 1.5 x 80 mm

SCREW - adjusting

1шт.

20

A52313

NUT

- hex, M22 x 1.5 mm

1шт.

27

A48743

BEARING ASSY

BUSHING ASSEMBLY - bearing cup

1шт.

28

A48731

BEARING ASSY

CONE - bearing

1шт.

29

A48742

ROLLER BEARING,50.8 mm ID x 32.8 mm

CONE - bearing

1шт.

30

A48732

SPACER, RING

RING - spacer, 15.8 mm

1шт.

30

A48733

SPACER, RING

RING - spacer, 15.7 mm

1шт.

30

A48734

SPACER, RING

RING - spacer, 15.6 mm

1шт.

30

A48735

SPACER, RING

RING - spacer, 15.5 mm

1шт.

30

A48736

SPACER, RING

RING - spacer, 15.4 mm

1шт.

30

A48737

SPACER

RING - spacer, 15.3 mm

1шт.

30

A48738

SPACER, RING

RING - spacer, 15.2 mm

1шт.

30

A48739

SPACER, RING

RING - spacer, 15.1 mm

1шт.

30

A48740

SPACER, RING

RING - spacer, 15 mm

1шт.

30

A48741

SPACER, RING

RING - spacer, 14.9 mm

1шт.

33

A48744

SPACER

WASHER - spacer, 1 mm

1шт.

33

A48745

SPACER

WASHER - spacer, 0.5 mm

1шт.

33

A48746

SPACER

WASHER - spacer, 0.3 mm

1шт.

33

A48747

SPACER

WASHER - spacer, 0.2 mm

1шт.

33

A48748

SPACER

WASHER - spacer, 0.1 mm

1шт.

36

A48750

SEAL

- shaft, differential

1шт.

37

A48749

CAP

- seal

1шт.

38

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, M12 x 45 mm

8шт.

39

A48754

SHIELD

SHEILD - dust

1шт.

40

A48753

FLANGE

- drive

1шт.

44

A48751

SHIM

WASHER - drive flange

1шт.

45

A48752

NUT

- castle, pinnion

1шт.

46

632-735

COTTER PIN,M6.3 x 56

PIN - cotter, 6.3 x 56 mm

1шт.

47

A52314

BOLT

- hex, M14 x 40 mm

16шт.
