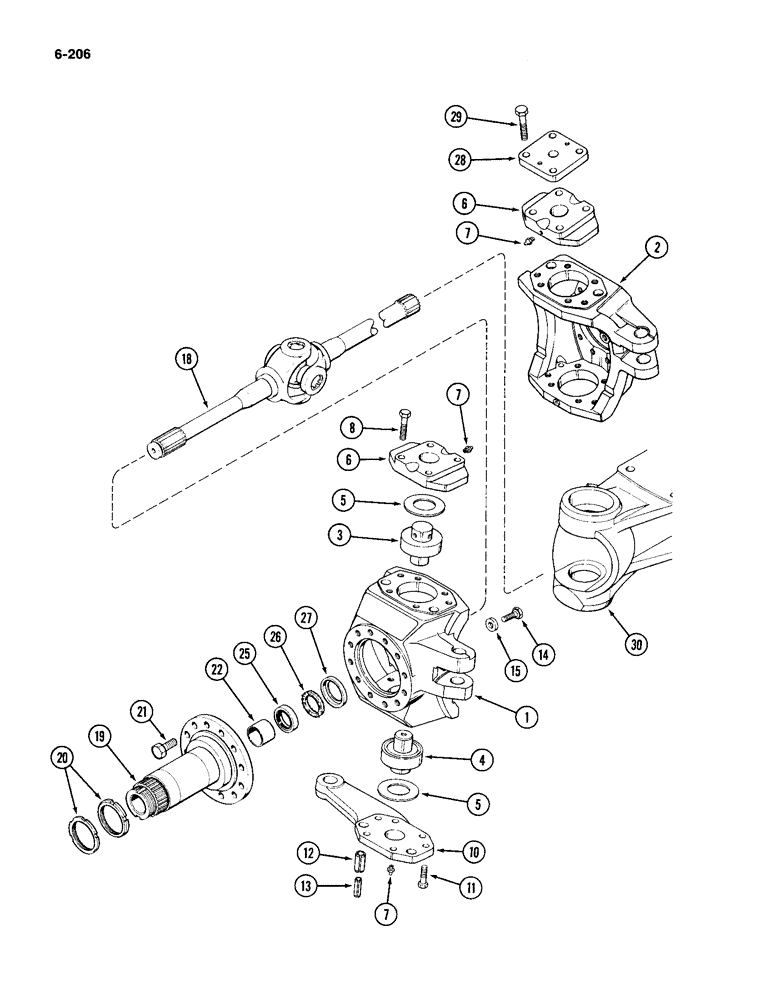

Запчасти Case IH 4994 (6-206) - FRONT STEERING AXLE, PRIOR TO P.I.N. 8865501, STEERING KNUCKLE AND SHAFT (06) - POWER TRAIN

A158649

AXLE

ASSEMBLY - front (Order A179084), Includes: Ref. 1 - 30

1шт.

1

A48794

HOUSING

KNUCKLE - steering, right-hand

1шт.

2

A48802

HOUSING

KNUCKLE - steering, left-hand

1шт.

3

A48806

- king, upper

2шт.

4

A48810

PIN

- king, lower

2шт.

5

A48836

SHIM,3mm Thk

King pin 3mm Thk

1шт.

5

A48837

SHIM,3.1mm Thk

King pin 3.1mm Thk

1шт.

5

A48838

SHIM,3.2mm Thk

King pin 3.2mm Thk

1шт.

5

A48839

SHIM,3.5mm Thk

King pin 3.5mm Thk

1шт.

5

A48840

SHIM,2.7mm Thk

King pin 2.7mm Thk

1шт.

5

A48841

SHIM,2.8mm Thk

King pin 2.8mm Thk

1шт.

5

A48842

SHIM,2.9mm Thk

King pin 2.9mm Thk

1шт.

5

A44843

SHIM - king pin, 3.3 mm

1шт.

5

A48844

SHIM,3.4mm Thk

King pin 3.4mm Thk

1шт.

6

A48849

CAP

- king pin

2шт.

7

A48866

FITTING

- grease

4шт.

8

A48851

BOLT

- hex, M18 x 65 mm

4шт.

10

A48987

ARM

- steering, right-hand (shown)

1шт.

10

A48986

ARM

- steering, left-hand

1шт.

11

A48984

BOLT

- hex, M18 x 70 mm

8шт.

11

48985

WASHER

BOLT - hex, M18 x 70 mm

4шт.

12

A48864

PIN, ROLL

PIN - roll

4шт.

13

A48863

PIN, ROLL

PIN - roll

4шт.

14

A48815

SCREW

BOLT - stop, axle

4шт.

15

A48818

WASHER

- spacer, 10 mm

1шт.

15

A48819

WASHER

- spacer, 9 mm

1шт.

15

A48820

WASHER

- spacer, 8 mm

1шт.

15

A48821

WASHER

- spacer, 6 mm

1шт.

15

A48822

WASHER

- spacer, 6.5 mm

1шт.

15

A48823

WASHER

- spacer, 7 mm

1шт.

15

A48824

WASHER

- spacer, 7.5 mm

1шт.

15

A48825

WASHER

- spacer, 8.5 mm

1шт.

15

A48826

WASHER

- spacer, 9.5 mm

1шт.

15

A48827

WASHER

- spacer, 10.5 mm

1шт.

15

A48828

WASHER

- spacer, 11 mm

1шт.

18

A48801

UNIVERSAL JOINT

SHAFT ASSEMBLY - universal joint

2шт.

19

A48792

HUB

ASSSEMBLY - carrier, Includes: Ref. 20

2шт.

20

A48926

NUT

- slotted, hub

2шт.

21

826-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex, M20 x 50 mm

20шт.

21

A48833

BOLT

- hex, M20 x 45 mm

4шт.

22

A48800

SLEEVE

- carrier hub

2шт.

25

A48834

SEAL

- shaft

2шт.

26

A48817

SEAL

- felt, shaft

2шт.

27

A48808

OIL SEAL

RING - angle, shaft

2шт.

28

A48807

COVER

- king pin cap (Left hand only)

1шт.

29

A48854

BOLT

- hex, M18 x 80 mm

4шт.

30

REF

INSTRUCTION

HOUSING - axle and differential front (See Figure 6-204)

1шт.
