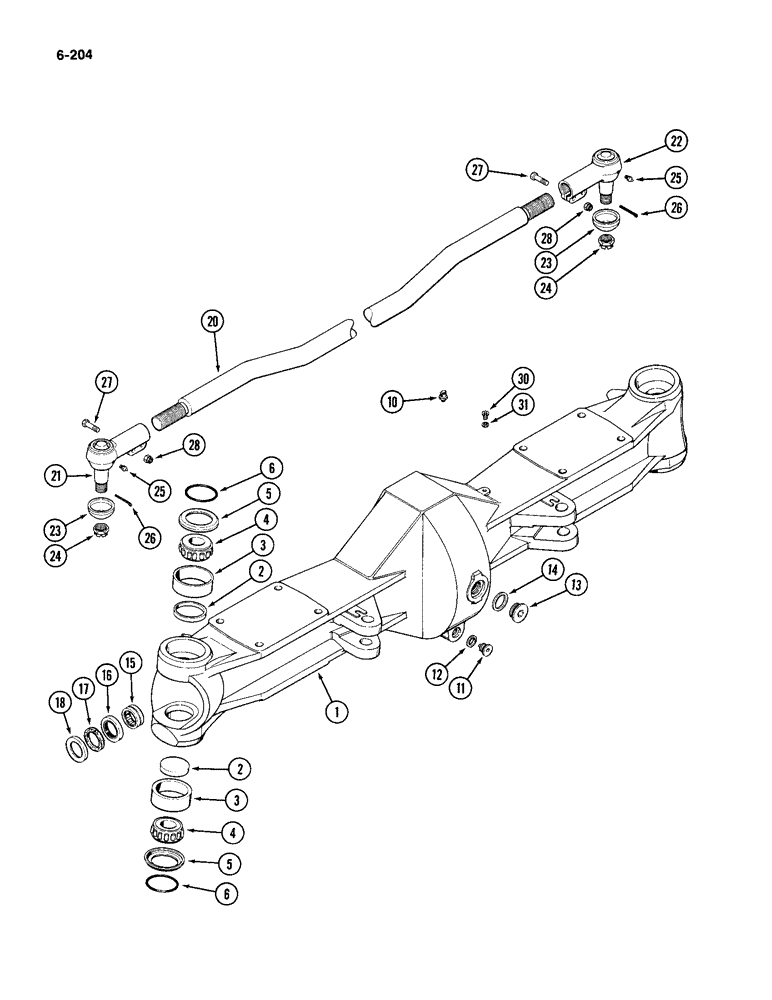

Запчасти Case IH 4994 (6-204) - FRONT STEERING AXLE, AXLE HOUSING AND TIE ROD (06) - POWER TRAIN

A179084

AXLE

ASSEMBLY - front steering, Includes: Ref. 1 - 31, Start Serial: 8865501

1шт.

A158649

AXLE

ASSEMBLY - front steering (Order A179084), Includes: Ref. 1 - 31, Serial Range: -8865501

1шт.

1

A48795

AXLE HOUSING

HOUSING - axle, front

1шт.

2

A48847

CAP

- end, seal

4шт.

3

A48816

BEARING CUP,114.3 mm OD x 34.9 mm

CUP - bearing

4шт.

4

A48813

ROLLER BEARING,49.2 mm ID x 44.5 mm

CONE - bearing

4шт.

5

A48831

CAP

- sealing

4шт.

6

A48832

O-RING,80 mm ID

RING - seal

4шт.

10

A48855

VALVE

BREATHER - axle housing (Used with A158649 axle)

1шт.

11

A48804

PLUG

- drain, M42 x 1.5 mm

1шт.

12

A48812

SEALING RING,M24 x 29 x 1.5

RING - seal

1шт.

13

A48791

PLUG

- fill, M42 x 1.5 mm

1шт.

14

A48799

SEALING RING

RING - seal

1шт.

15

A48850

NEEDLE BEARING,50 mm ID x 65 mm OD x 22 mm

BEARING - needle

2шт.

16

A48834

SEAL

- axle shaft

2шт.

17

A48817

SEAL

RING - felt

2шт.

18

A48808

OIL SEAL

RING - angle seal

2шт.

20

A48805

TIE-ROD

TIE ROD ASSEMBLY - axle, Includes: Ref. 21 - 28

1шт.

21

A168740

END

ASSEMBLY - tie rod, right-hand

1шт.

22

A168741

END

ASSEMBLY - tie rod , left-hand

1шт.

23

A52240

SEAL

- cap

1шт.

24

A52235

NUT

- hex castle, M30

1шт.

25

A52236

LUBE NIPPLE,M8 x 1

FITTING - grease, M8

1шт.

26

632-236

PIN - cottter, M6.2 x 63 mm

1шт.

27

A52239

BOLT

- hex, M12 x 55 mm

2шт.

28

A52233

LOCK NUT

NUT - hex lock, M12

2шт.

30

A52230

PLUG

ASSEMBLY - housing (Used with A179084 axle), Includes: Ref. 31

1шт.

31

A52231

SEALING RING

RING - seal

1шт.
