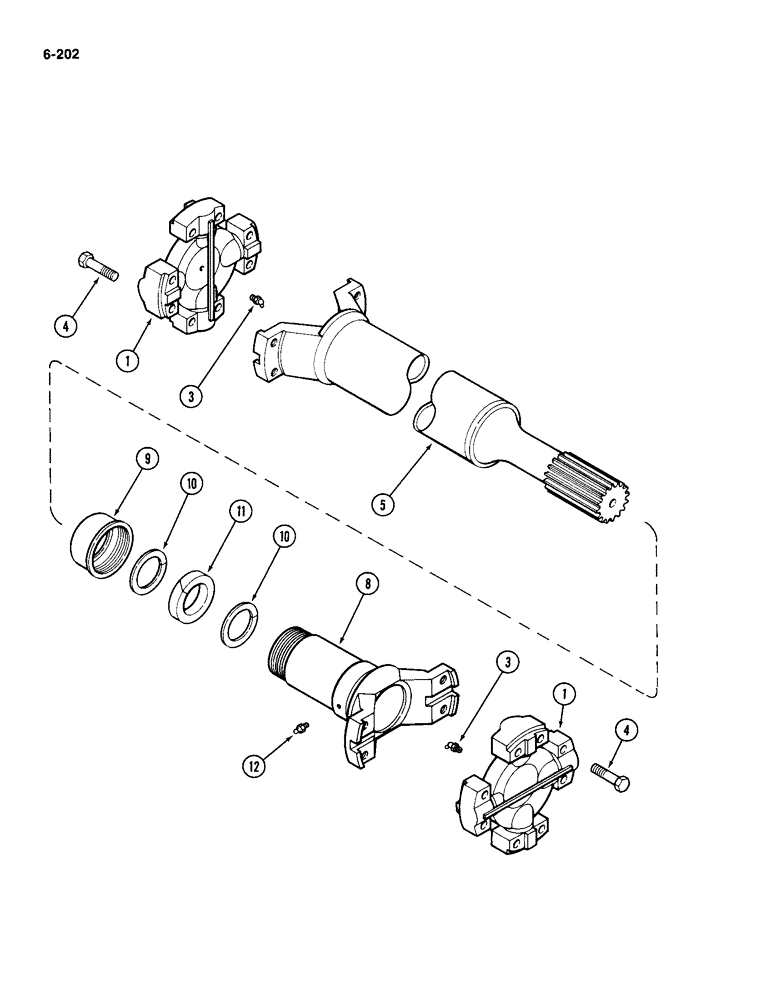

Запчасти Case IH 4994 (6-202) - REAR AXLE DRIVE LINE (06) - POWER TRAIN

A179164

SHAFT

ASSEMBLY - drive, rear axle to transmission (Replaces A168862), Includes: Ref. 1 - 12

1шт.

1

A52051

COUPLING

BEARING ASSEMBLY - shaft joint, Includes: Ref. 3 and 4

2шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 inch x 45 degree

8шт.

4

A56245

BOLT,Hex, 1/2" x 2 3/8"

- bearing assembly

16шт.

5

A52190

TUBE ASSY.

TUBE - drive shaft

1шт.

A52049

PIVOT

YOKE ASSEMBLY - slip, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

YOKE - slip (Reference No. A45566)

1шт.

9

L31204

CAP

- seal

1шт.

10

A45630

WASHER

- seal

2шт.

11

A45629

FELT SEAL

- felt

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
