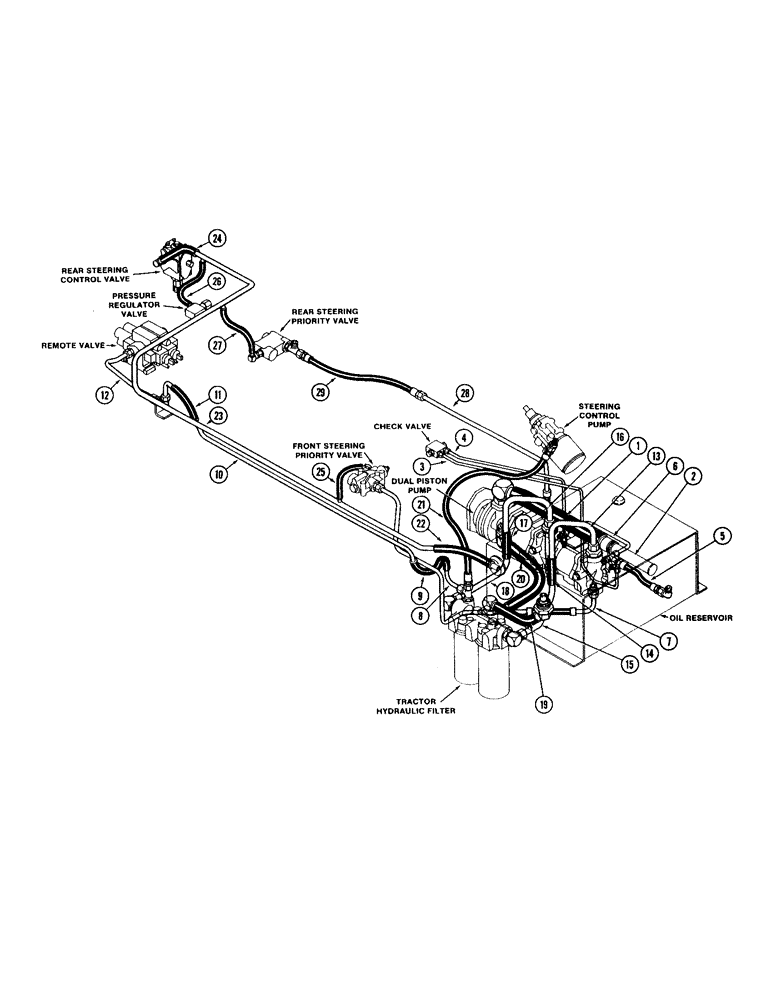

Запчасти Case IH 4994 (1-05) - PICTORIAL INDEX, TRACTOR HYDRAULICS, PRIOR TO P.I.N. 8865846 (00) - PICTORIAL INDEX

1

Hydraulic pump inlet hose, Page 8-277

1шт.

2

Suction line screen, Page 8-275

1шт.

3

Front compensator to check valve tube, Page 8-277

1шт.

4

Rear compensator to check valve tube, Page 8-277

1шт.

5

Hydraulic return hose, Page 8-277

1шт.

6

hydraulic pump drain tube, Page 8-277

1шт.

7

Pump to front steering priority tube, Page 8-277

1шт.

8

Filter to remote tube, Page 8-279

1шт.

9

Filter to remote hose, Page 8-279

1шт.

10

Remote drain tube, Page 8-299

1шт.

11

Remote drain hose, Page 8-299

1шт.

12

Remote drain hose, Page 8-299

1шт.

13

Pump to filter front tube, Page 8-279

1шт.

14

Pump to filter front hose, Page 8-279

1шт.

15

Pump to filter front tube, Page 8-279

1шт.

16

Pump to filter rear tube, Page 8-279

1шт.

17

Pump to filter rear hose, Page 8-279

1шт.

18

Pump to filter rear tube, Page 8-279

1шт.

19

Filter to oil reservoir hose, Page 8-279

1шт.

20

Filter to hydraulic pump hose, Page 8-279

1шт.

21

Filter to steering pump, Page 8-279

1шт.

22

Rear steering drain front hose, Page 5-139

1шт.

23

Rear steering drain tube, Page 5-139

1шт.

24

Rear steering drain rear hose, Page 5-139

1шт.

25

Rear tube to front priority valve hose, Page 5-139

1шт.

26

Drain tube to regulator valve hose, Page 5-139

1шт.

27

Drain tube to rear priority valve hose, Page 5-139

1шт.

28

Pump to rear priority valve tube, Page 5-139

1шт.

29

Pump to rear priority valve hose, Page 5-139

1шт.
