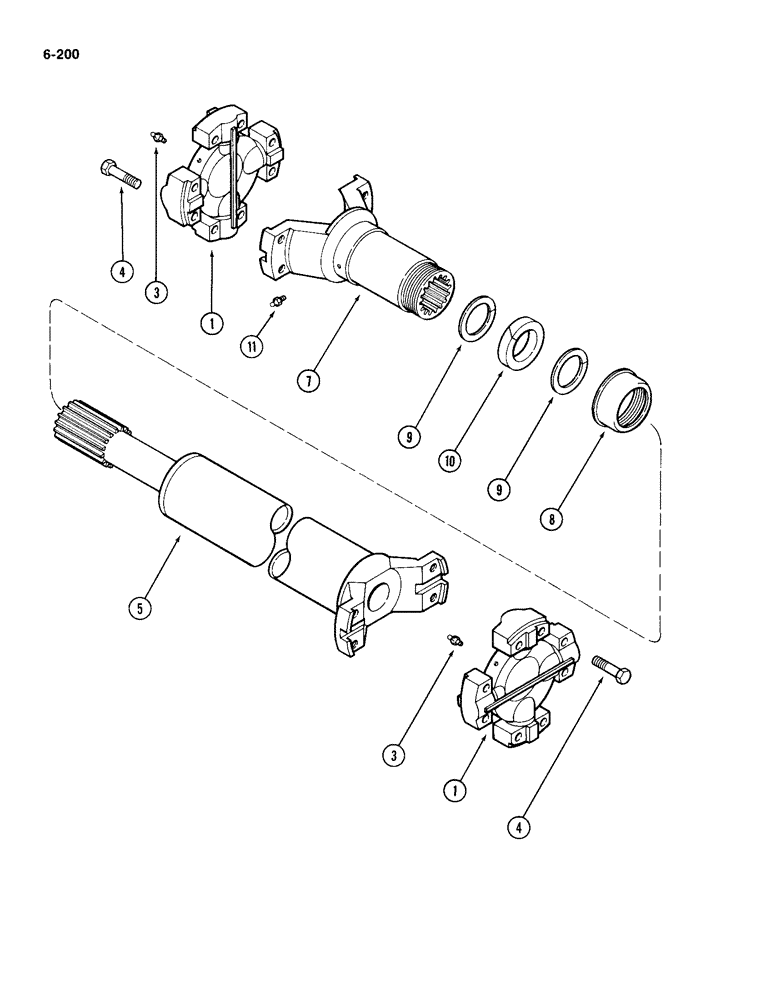

Запчасти Case IH 4994 (6-200) - FRONT AXLE DRIVE LINE (06) - POWER TRAIN

A163828

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle to transmission, Includes: Ref. 1 - 11

1шт.

1

A48906

UNIVERSAL JOINT

BEARING ASSEMBLY - shaft joint, Includes: Ref. 3

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

A56245

BOLT,Hex, 1/2" x 2 3/8"

- hex, bearing assembly

16шт.

5

A48908

TUBE

- drive shaft

1шт.

A45609

YOKE

ASSEMBLY - slip, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

YOKE - slip (Reference No. A45566)

1шт.

8

L31204

CAP

- seal

1шт.

9

A45630

WASHER

- seal

2шт.

10

A45629

FELT SEAL

- felt

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT

1шт.
