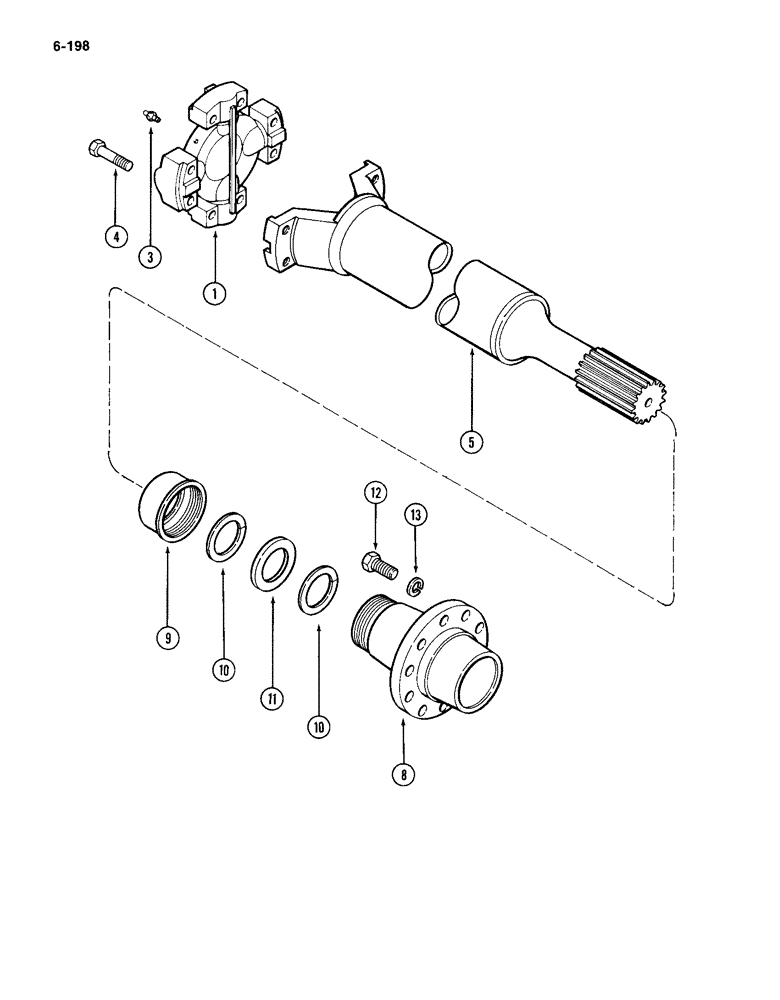

Запчасти Case IH 4994 (6-198) - ENGINE DRIVE LINE (06) - POWER TRAIN

A158191

DRIVE SHAFT

SHAFT ASSEMBLY - drive, engine to transmission, Includes: Ref. 1 - 11

1шт.

1

A48906

UNIVERSAL JOINT

BEARING ASSEMBLY - shaft joint, Includes: Ref. 3

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

A56245

BOLT,Hex, 1/2" x 2 3/8"

- bearing assembly

8шт.

5

A48905

TUBE

- drive shaft

1шт.

A48904

SLEEVE

ASSEMBLY - drive shaft, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - shaft

1шт.

9

L31204

CAP

- seal

1шт.

10

A45630

WASHER

- seal

2шт.

11

A48903

SEAL

- drive shaft

1шт.

12

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

10шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.
