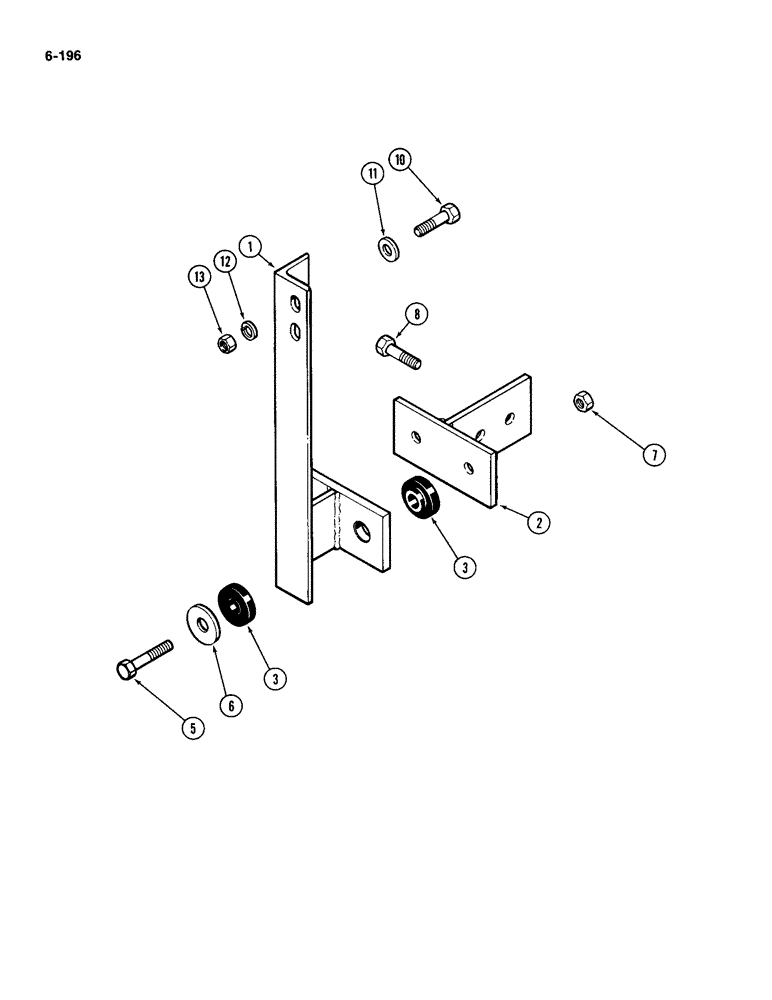

Запчасти Case IH 4994 (6-196) - TRANSMISSION ANTI-TORQUE ASSEMBLY (06) - POWER TRAIN

1

A181062

ANGLE

- antitorque

1шт.

2

A180705

SUPPORT

- antitorque

1шт.

3

R49482

RUBBER MOUNTING

MOUNT - rubber

4шт.

5

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

6

195-2266

WASHER,11/16" x 2 1/2" x 180"

- flat, 11/16 x 2-1/2 x 13/64 inch (17 x 64 x 5 mm)

2шт.

7

129-107

NUT,5/8"-11, G5

2шт.

8

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

10

13-1038

BOLT,Hex, 5/8" - 11 x 2-3/8", Gr 5

- hex, 5/8 NC x 2-3/8 inch

2шт.

11

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 13/64 inch (17 x 33 x 5 mm)

2шт.

12

195-25

WASHER,3/8"

- lock, 5/8 inch

2шт.

13

129-107

NUT,5/8"-11, G5

2шт.
