(6-194) - TRANSMISSION SUPPORTS

Запчасти Case IH 4994 (6-194) - TRANSMISSION SUPPORTS (06) - POWER TRAIN

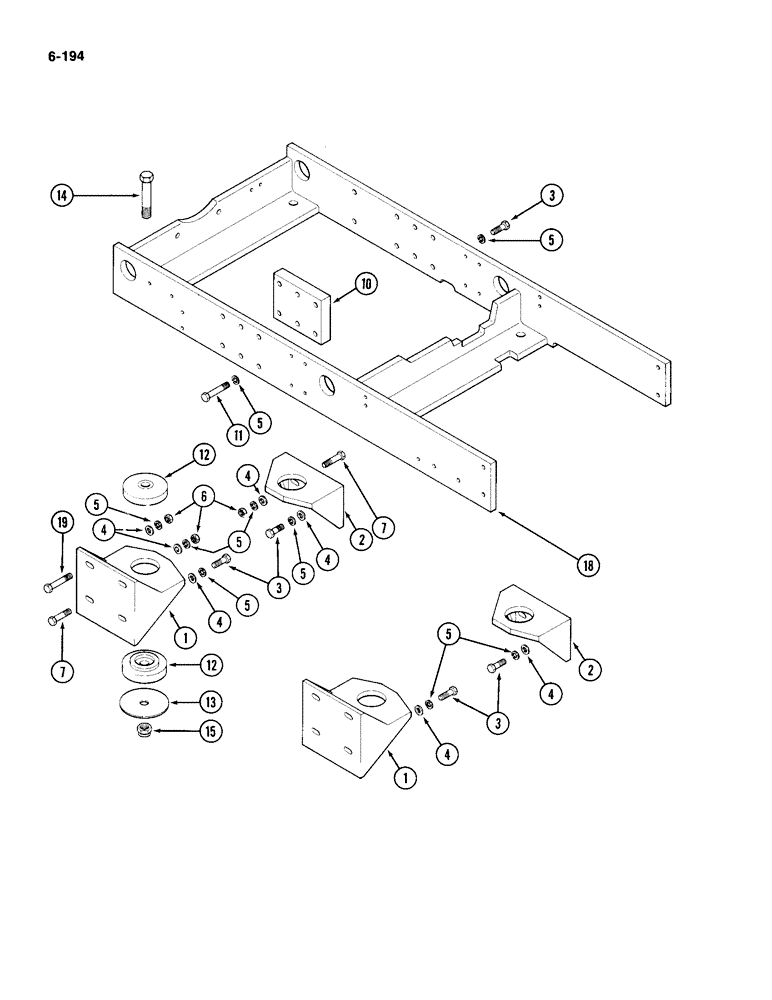

Схема запчастей Case IH 4994 - (6-194) - TRANSMISSION SUPPORTS (06) - POWER TRAIN
5
6
5
14
2
13
4
12
5
4
5
4
5
12
18
7
10
5
7
2
3
4
3
19
3
4
15
1
5
4
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A163267

SUPPORT

- transmission, right-hand

2шт.

2

A163266

SUPPORT

- transmission, left-hand

2шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

15шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened

12шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

6

129-107

NUT,5/8"-11, G5

12шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

10

A163265

BLOCK

SPACER - transmission frame

1шт.

11

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

6шт.

12

A163888

COVER

MOUNTING - rubber

8шт.

13

A163887

WASHER

- mounting

4шт.

14

26-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

- hex, 1 NC x 5 inch

4шт.

15

131-82

NUT,1"-8

NUT - hex lock, 1 inch NC

4шт.

18

A165792

FRAME

- transmission

1шт.

19

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.
