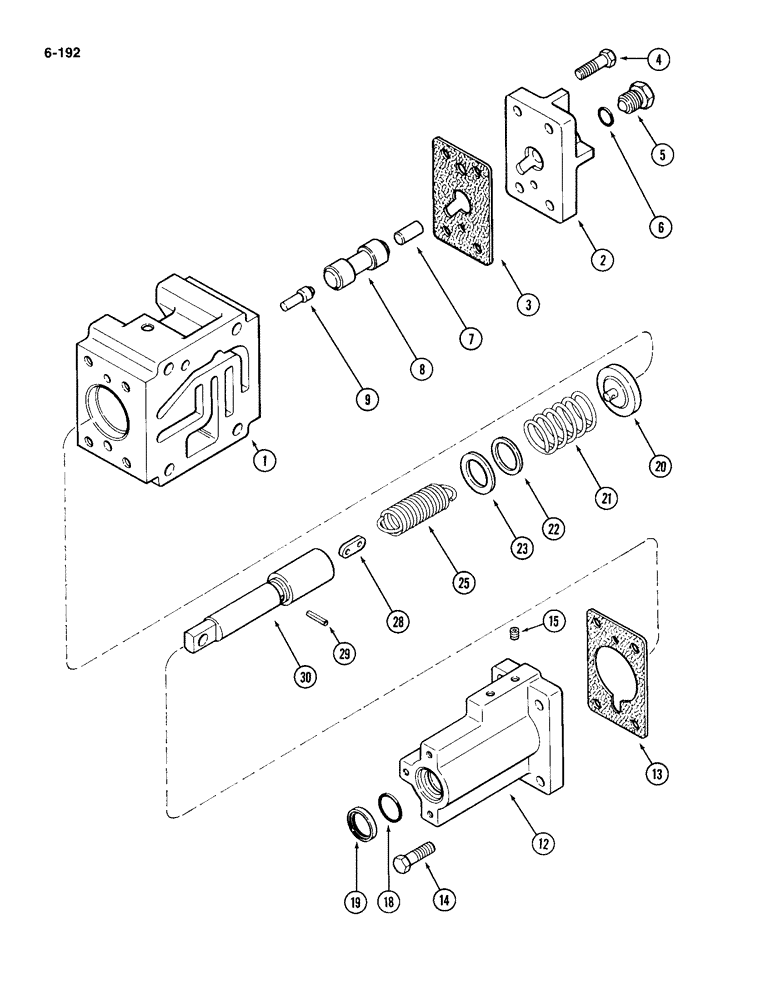

Запчасти Case IH 4994 (6-192) - CLUTCH CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

A49358

VALVE

ASSEMBLY - clutch control, Includes: Ref. 1 - 30

1шт.

1

A49366

BODY

- valve

1шт.

2

A49364

COVER

- valve body

1шт.

3

A49359

GASKET

- cover

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

A46997

PLUG

ASSEMBY - hex, 9/16 inch special, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

7

A49368

SPOOL

- reducing

1шт.

8

A49371

SPOOL

- modulator valve

1шт.

9

A49362

PIN

- modulator spool

1шт.

12

A49365

COVER

- control stem

1шт.

13

A49360

GASKET

- stem cover

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

221-1849

PLUG

- square socket head, 1/8 inch PT

2шт.

18

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- stem

1шт.

19

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- oil, stem

1шт.

20

A49369

SEAT

- spring

1шт.

21

A49372

SPRING

- return

1шт.

22

195-49

WASHER

- shim

1шт.

23

A49363

SPACER

- valve

1шт.

25

A49370

SPOOL

SPRING - extension

1шт.

28

A49361

LINK

- extension spring

1шт.

29

138-72

LOCK PIN,5/32" x 11/16", Slotted

Pin, 5/32" x 11/16", Slotted

1шт.

30

A49367

STEM

- control

1шт.
