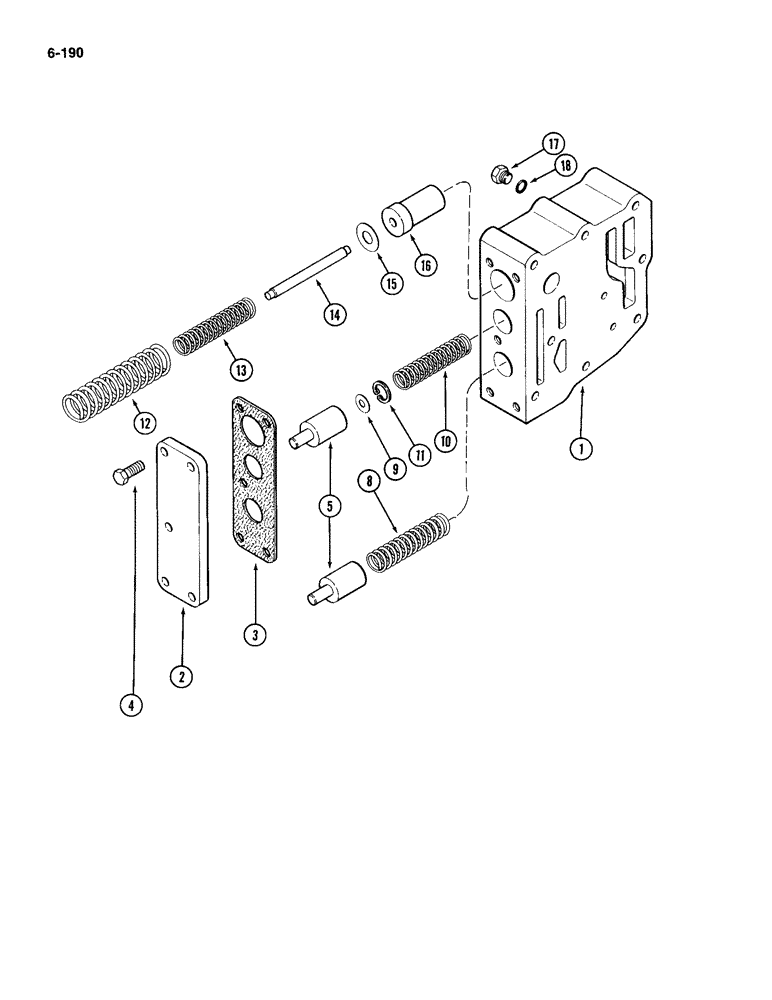

Запчасти Case IH 4994 (6-190) - REGULATOR VALVE ASSEMBLY (06) - POWER TRAIN

A49342

VALVE

ASSEMBLY - regulator, Includes: Ref. 1 - 18

1шт.

1

A49343

BODY

- valve

1шт.

2

A49352

COVER

- valve body

1шт.

3

A49346

GASKET

- cover

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

5

A49348

VALVE

- lube, regulator

2шт.

8

A49351

SPRING

- compression, lower lube valve

1шт.

9

A47870

SHIM

- thrust race

1шт.

10

A49350

SPRING

- compression, upper lube valve

1шт.

11

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

12

A49349

SPRING

- outer compression, pressure valve

1шт.

13

A49350

SPRING

- inner compression, pressure valve

1шт.

14

A49345

ROD

- pressure valve

1шт.

15

A49347

SHIM

- pressure valve

1шт.

16

A49344

VALVE

- pressure regulating

1шт.

17

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, Incl. Ref. 18 Hex Hd, 7/16"-20 ORB

2шт.

18

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.
