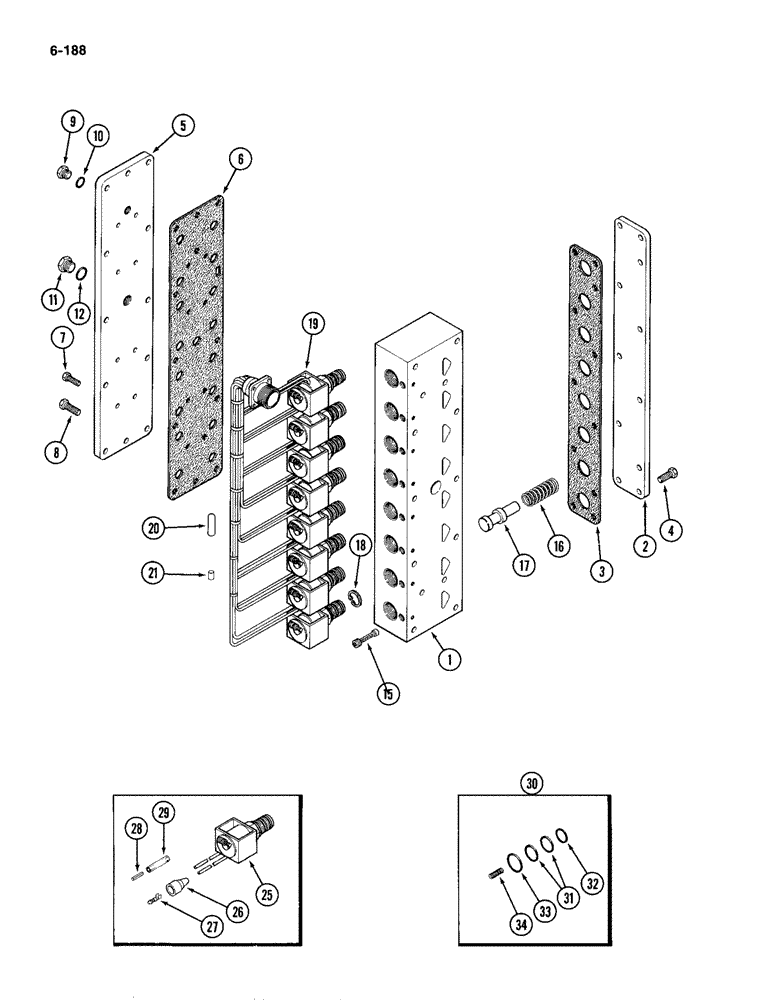

Запчасти Case IH 4994 (6-188) - RANGE SELECTOR VALVE ASSEMBLY (06) - POWER TRAIN

A49328

VALVE

ASSEMBLY - range selector, Includes: Ref. 1 - 34

1шт.

1

A49329

BODY

ASSEMBLY - selector valve

1шт.

2

A49333

COVER

- side, valve body

1шт.

3

A49332

GASKET

- side cover

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

11шт.

5

A49331

COVER

- top, body

1шт.

6

A49330

GASKET

- top cover

1шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

9

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, Incl. Ref. 10 Hex Hd, 7/16"-20 ORB

1шт.

10

D38602

O-RING,50 mm ID

- plug

1шт.

11

76349

PLUG,9/16" - 18 ORB

Assy, 3/8 tube, Incl. Ref. 12 - 18 Hex Hd, 9/16"-18 ORB

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

15

A49336

SCREEN

- filter

8шт.

16

A49383

SPRING

- compression

8шт.

17

A49337

VALVE

- range selector

8шт.

18

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

8шт.

19

A49641

RECEPTACLE AND SOLENOID ASSEMBLY - valve, Includes: Ref. 20 - 34

1шт.

20

A49642

CONNECT - wire, solenoid

1шт.

21

A49643

TERMINAL - connector

1шт.

A49335

SOLENOID

SERVICE KIT - solenoid, Includes: Ref. 25

8шт.

25

NSS

NOT SOLD SEPARAT

SOLENOID - valve (Reference No. A49334)

1шт.

26

A46984

CONNECTOR, ELEC

CONNECTOR - solenoid

1шт.

27

A46983

TIP

- connector

1шт.

28

NSS

NOT SOLD SEPARAT

CONNECTOR - wire

2шт.

29

NSS

NOT SOLD SEPARAT

TUBING - shrink, wire

2шт.

30

A49462

KIT

O-RING KIT - solenoid

8шт.

31

NSS

NOT SOLD SEPARAT

O-RING - solenoid

2шт.

32

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - core

1шт.
