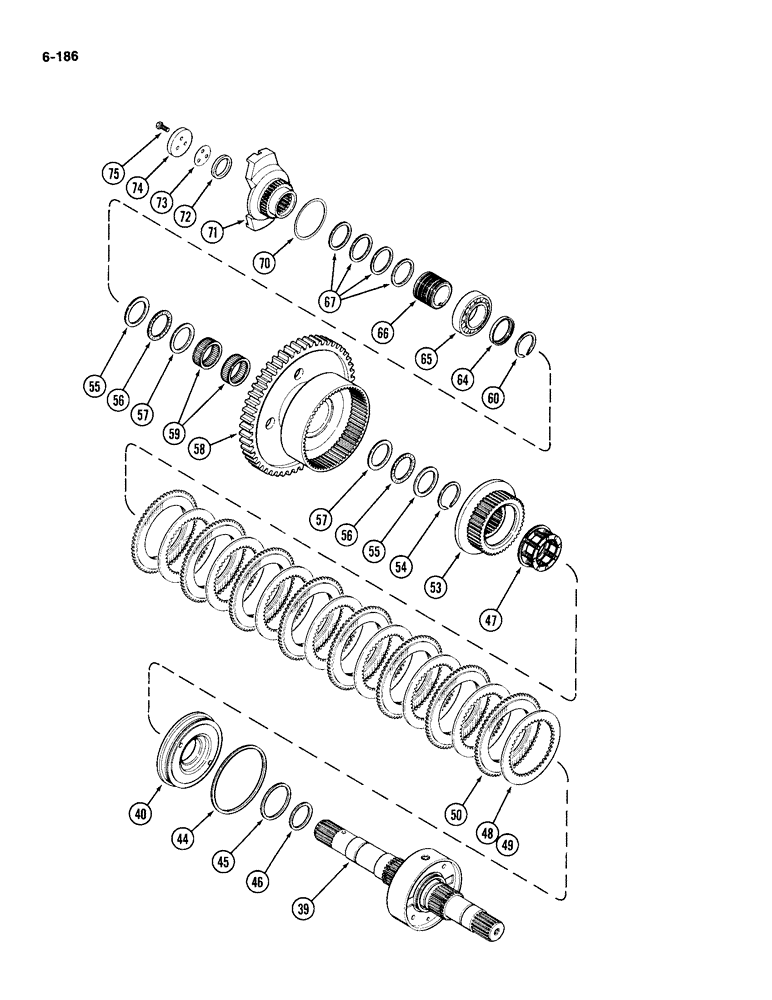

Запчасти Case IH 4994 (6-186) - 8 INCH (203 MM) CLUTCH ASSEMBLY (CONTINUED) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A179322
TRANSMISSION
ASSEMBLY - complete, Includes: Ref. 39 - 75 and 1 - 38 on Figure 6-184
1шт.
A49595
CLUTCH
ASSEMBLY - 8 inch (203 mm) (Continued from Figure 6-184), Includes: Ref. 39 - 67 and 7 - 38 on Figure 6-184
1шт.
39
REF
INSTRUCTION
SHAFT ASSEMBLY - upper, clutch (See Figure 6-184)
1шт.
40
A49597
PISTON
- clutch
1шт.
44
A49166
SEALING RING
RING - piston, sealing
1шт.
45
A49169
OIL SEAL
O-RING - piston
1шт.
46
A46994
OIL SEAL
O-RING - piston
1шт.
47
A49598
RETAINER
ASSEMBLY - spring
1шт.
48
A49249
LARGE PLATE
PLATE - clutch, flat steel
1шт.
A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.
1шт.
49
A49463
LARGE PLATE
PLATE - clutch, coned steel
1шт.
A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.
1шт.
50
A49248
LARGE PLATE
PLATE - clutch, friction
8шт.
53
A49247
HUB
- clutch
1шт.
54
A46974
RING, SNAP
RING - snap, external
1шт.
55
A49205
WASHER
- thrust, steel
2шт.
56
A49182
NEEDLE BEARING
BEARING - thrust, needle
2шт.
57
A49206
WASHER
- thrust, steel
2шт.
58
A49246
DRIVE
GEAR - ring, drive
1шт.
59
A49180
ROLLER BEARING,2.5" ID x 2.87" OD
BEARING - roller
2шт.
60
F14810
RING, SNAP
RING - snap, external
1шт.
64
A49261
SPACER
- bearing
1шт.
65
A49243
ASSEMBLY - taper roller
1шт.
66
A49596
CARRIER
- piston ring
1шт.
67
A49384
OIL SEAL
RING - sealing, carrier
4шт.
70
A49280
SHIM
- bearing, 0.010 inch (0.254 mm)
1шт.
70
A49281
SHIM
- bearing, 0.013 inch (0.33 mm)
1шт.
70
A49282
SHIM
- bearing, 0.020 inch (0.508 mm)
1шт.
70
A49283
SHIM
- bearing, 0.016 inch (0.406 mm)
1шт.
71
A49606
YOKE
- output
1шт.
72
A49175
SEALING RING
RING - seal, yoke
1шт.
73
A49284
SHIM
- washer, 0.003 inch (0.076 mm)
1шт.
73
A49285
SHIM
- washer, 0.010 inch (0.254 mm)
1шт.
744
A49286
WASHER
- retainer
1шт.
Выбрано товаров: 35
