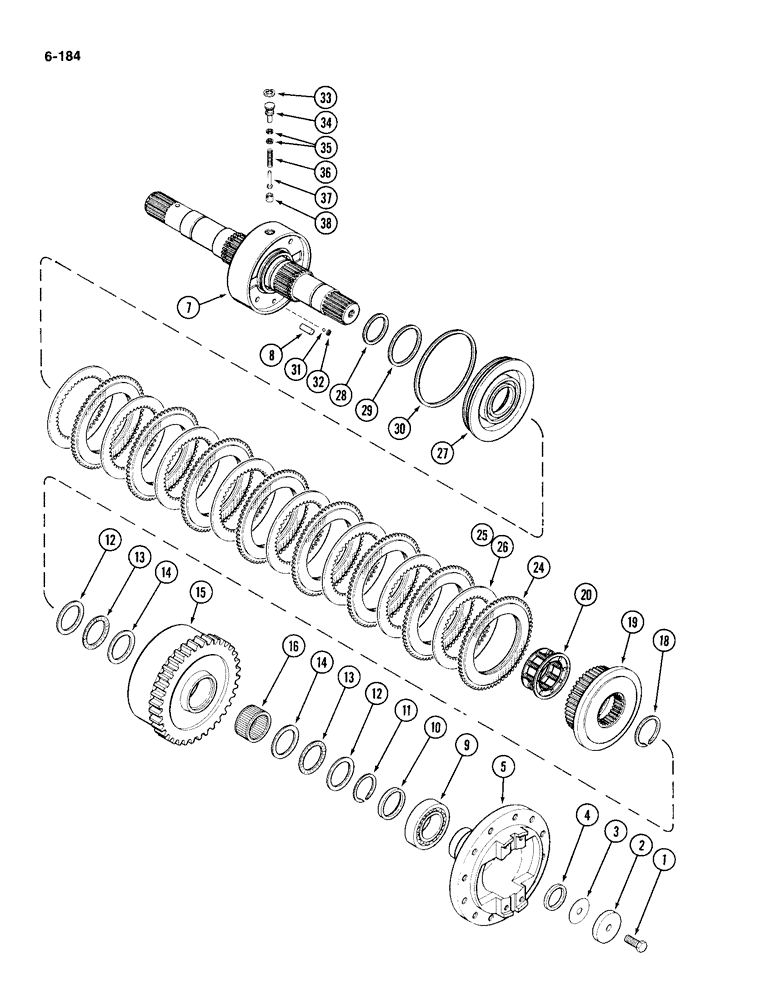

Запчасти Case IH 4994 (6-184) - 8 INCH (203 MM) CLUTCH ASSEMBLY (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 38 and 39 - 75 on Figure 6-186

1шт.

1

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- hex, 5/8 NF x 1-1/2 inch

1шт.

2

A49287

WASHER

- retainer

1шт.

3

A49277

SHIM

- washer, 0.003 inch (0.076 mm)

1шт.

3

A49278

SHIM

- washer, 0.010 inch (0.254 mm)

1шт.

4

A49175

SEALING RING

RING - sealing

1шт.

5

A49276

FLANGE

- brake, front

1шт.

A49595

CLUTCH

ASSEMBLY - 8 inch (203 mm), Includes: Ref. 7 - 38 and 39 - 67 on Figure 6-186

1шт.

7

A49599

SHAFT ASSY.

SHAFT ASSEMBLY - clutch

1шт.

8

A49236

DOWEL

PIN - dowel

4шт.

9

A49243

ASSEMBLY - taper roller

1шт.

10

A49261

SPACER

- bearing

1шт.

11

F14810

RING, SNAP

RING - snap, external

1шт.

12

A49205

WASHER

- thrust, steel

2шт.

13

A49182

NEEDLE BEARING

BEARING - thrust, needle

2шт.

14

A49206

WASHER

- thrust, steel

2шт.

15

A49245

GEAR

- ring, drive

1шт.

16

A49181

ROLLER CAGE BEARING,2.5" ID x 2.87" OD

BEARING - roller

1шт.

18

A46974

RING, SNAP

RING - snap, external

1шт.

19

A49247

HUB

- clutch

1шт.

20

A49598

RETAINER

ASSEMBLY - spring

1шт.

24

A49248

LARGE PLATE

PLATE - clutch, friction

8шт.

25

A49249

LARGE PLATE

PLATE - clutch, flat steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

26

A49463

LARGE PLATE

PLATE - clutch, coned steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

27

A49597

PISTON

- clutch

1шт.

REF 27 - CLUTCH PISTON A49597. THERE WAS AN OLDER PISTON WITH VENDOR CODE X227349 WHICH IS CASE PART NUMBER A49250. A49250 MEASURES 8.84" AND USES PISTON RING 1995403C1 THAT MEASURES 8.9". JRB 5/13/97

1шт.

PER TWIN DISC CONTACT KEITH.

1шт.

28

A46994

OIL SEAL

O-RING - piston

1шт.

REF 28 - OLDER STYLE PISTON O-RING IS PART NUMBER 90-3300T1 (VDR # MA379CH). JRB 5/13/97 PER TWIN DISC. CONTACT KEITH.

1шт.

29

A49169

OIL SEAL

O-RING - piston

1шт.

REF 29 - OLDER STYLE PISTON O-RING IS PART NUMBER 90-3301T1 (VDR # MA379CJ). JRB 5/13/97 PER TWIN DISC. CONTACT KEITH.

1шт.

30

A49166

SEALING RING

RING - piston

1шт.

31

211-259

BALL,5/16" Dia

- steel, 5/16 inch (8 mm) diameter chrome

1шт.

32

A49624

RING, SNAP

RING - snap

1шт.

A49385

VALVE

KIT - dump, Includes: Ref. 33 - 38

1шт.

33

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, 0.875", Int, #87

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Reference No. A49195)

1шт.

35

NSS

NOT SOLD SEPARAT

SHIM - sleeve, 0.079 inch (0.020 mm) (Reference no. A49202)

1шт.

35

NSS

NOT SOLD SEPARAT

SHIM - sleeve, 0.039 inch (0.010 mm) (Reference No. A49203)

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - compression (Reference No. A49193)

1шт.

37

NSS

NOT SOLD SEPARAT

STEM - valve (Reference No. A49194)

1шт.

38

NSS

NOT SOLD SEPARAT

VALVE - feedback (Reference No. A49204)

1шт.
