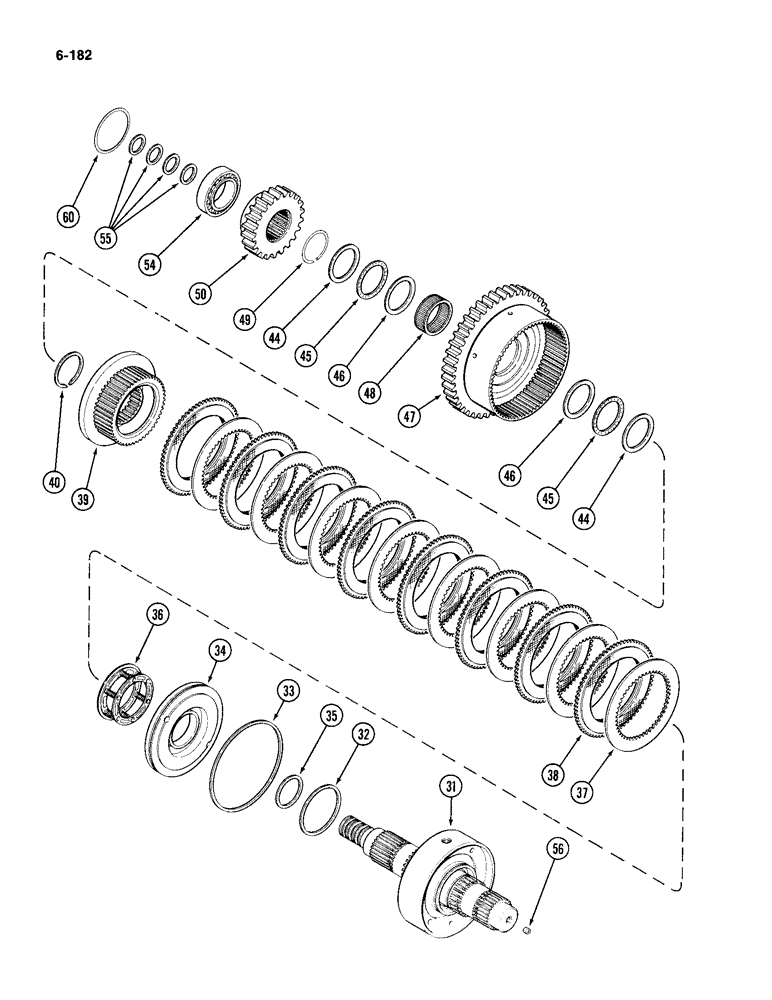

Запчасти Case IH 4994 (6-182) - 9 INCH (229 MM) CLUTCH ASSEMBLY (CONTINUED) (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 31 - 66 and 1 - 30 on Figure 6-180

1шт.

A49590

CLUTCH

ASSEMBLY - 9 inch (229 mm) (Continued from Figure 6-180), Includes: Ref. 31 - 56 and 1 - 30 on Figure 6-180

1шт.

31

REF

INSTRUCTION

SHAFT ASSEMBLY - clutch, final (See Figure 6-180)

1шт.

32

A49168

OIL SEAL

RING - piston

1шт.

33

A49167

SEALING RING

RING - sealing, piston

1шт.

34

A49380

PISTON

- clutch

1шт.

35

A46995

OIL SEAL

RING - piston

1шт.

365

A49228

RETAINER

ASSEMBLY - spring

1шт.

37

A49226

LARGE PLATE

PLATE - clutch, flat steel

8шт.

38

A49225

LARGE PLATE

PLATE - clutch, friction

8шт.

39

A49591

HUB

- clutch

1шт.

40

A46976

SNAP RING

RING - snap, external

1шт.

44

A49240

WASHER

- thrust, steel

2шт.

45

A49214

NEEDLE BEARING

BEARING - thrust, needle

2шт.

46

A49241

WASHER

- thrust, steel

2шт.

47

A49219

GEAR

- ring, clutch drive

1шт.

48

A49216

ROLLER CAGE BEARING,3" ID x 3.07" OD

BEARING - roller

1шт.

49

A49165

SNAP RING

RING - snap, external

1шт.

50

A49223

GEAR

- driver (23 teeth)

1шт.

54

A49217

BEARING

ASSEMBLY - thrust, taper

1шт.

55

A46996

SEALING RING

RING - sealing

4шт.

56

A49170

PLUG

- 1/4 inch pipe, orifice

1шт.

60

A49280

SHIM

- bearing, 0.010 inch (0.254 mm)

1шт.

60

A49281

SHIM

- bearing, 0.013 inch (0.33 mm)

1шт.

60

A49282

SHIM

- bearing, 0.020 inch (0.508 mm)

1шт.

66

A49283

SHIM

- bearing, 0.016 inch (0.406 mm)

1шт.
