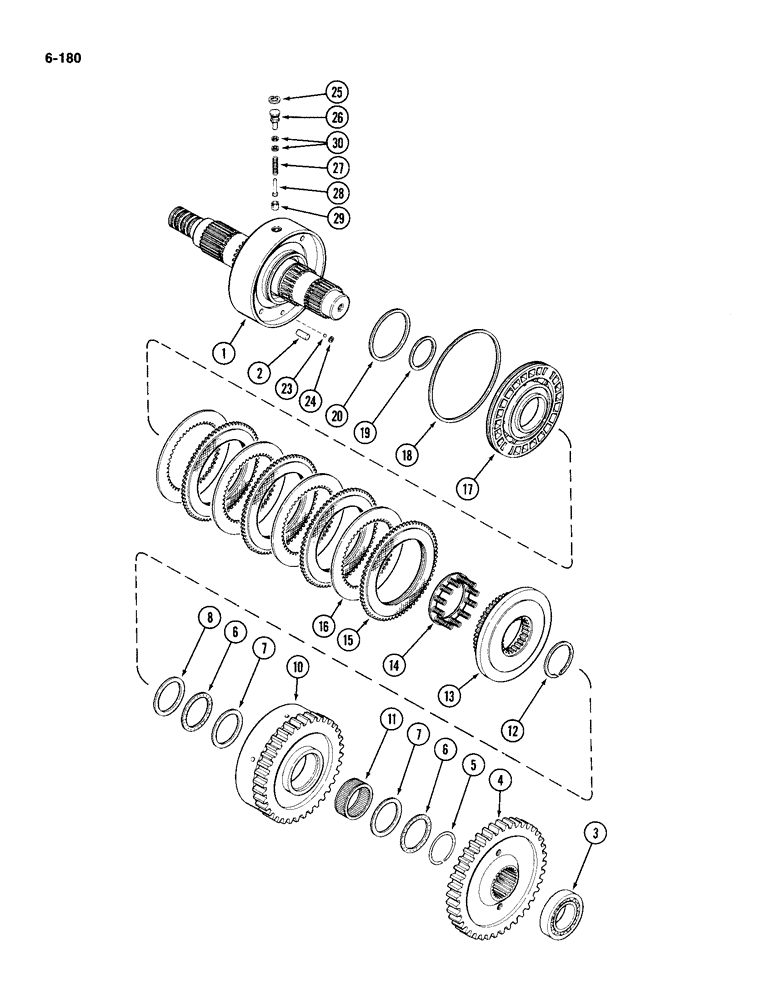

Запчасти Case IH 4994 (6-180) - 9 INCH (229 MM) CLUTCH ASSEMBLY (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 30 and 61 - 66 on Figure 6-182

1шт.

A49590

CLUTCH

ASSEMBLY - 9 inch (229 mm), Includes: Ref. 1 - 30 and 31 - 56 on Figure 6-182

1шт.

1

A49594

SHAFT ASSY.

SHAFT ASSEMBLY - clutch, final

1шт.

2

A49236

DOWEL

PIN - dowel

4шт.

3

A49215

TAPERED BEARING,2.55" ID x 4.33" OD x 1.1"

BEARING ASSEMBLY - roller

1шт.

4

NLS

NO LONGER SERVICED

- driver (43 teeth)

1шт.

5

A49165

SNAP RING

RING - snap, external

1шт.

6

A49214

NEEDLE BEARING

BEARING - thrust, needle

2шт.

7

A49241

WASHER

- thrust, steel

2шт.

8

A49240

WASHER

- thrust, steel

1шт.

10

A49218

GEAR

- ring, drive

1шт.

11

A49216

ROLLER CAGE BEARING,3" ID x 3.07" OD

BEARING - roller

1шт.

12

A46976

SNAP RING

RING - snap, external

1шт.

13

A49592

BEARING

HUB - clutch

1шт.

14

A49593

RETAINER

ASSEMBLY - spring

1шт.

15

A49225

LARGE PLATE

PLATE - clutch, friction

4шт.

16

A49226

LARGE PLATE

PLATE - clutch, flat steel

4шт.

17

A49380

PISTON

- clutch

1шт.

18

A49167

SEALING RING

RING - sealing, piston

1шт.

19

A46995

OIL SEAL

RING - piston

1шт.

20

A49168

OIL SEAL

RING - piston

1шт.

23

211-259

BALL,5/16" Dia

- steel, 5/16 inch (8 mm) diameter chrome

1шт.

24

A49624

RING, SNAP

RING - snap

1шт.

A49385

VALVE

KIT - dump, Includes: Ref. 25 - 30

1шт.

25

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, 0.875", Int, #87

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Reference No. A49195)

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - compression (Reference No. A49193)

1шт.

28

NSS

NOT SOLD SEPARAT

STEM - valve (Reference No. A49194)

1шт.

29

NSS

NOT SOLD SEPARAT

VALVE - feedback (Reference No. A49204)

1шт.

30

NSS

NOT SOLD SEPARAT

SHIM - valve, 0.079 inch (0.020 mm) (Reference No. A49202)

1шт.

30

NSS

NOT SOLD SEPARAT

SHIM - valve, 0.039 inch (0.010 mm) (Reference No. A49203)

1шт.
