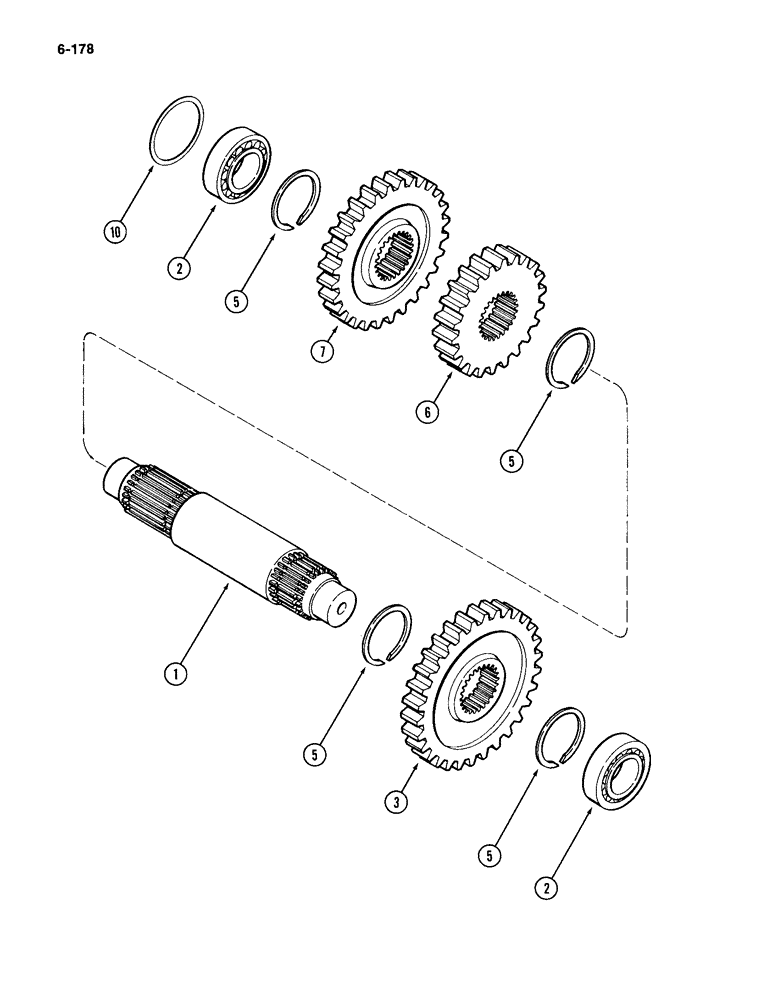

Запчасти Case IH 4994 (6-178) - COMPOUND DRIVEN SHAFT (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 10

1шт.

1

A49265

SHAFT

- compound driven

1шт.

2

A49179

TAPERED BEARING,2.16" ID x 3.74" OD x 1.14"

BEARING ASSEMBLY - roller

2шт.

3

A49262

GEAR

- front (33 teeth)

1шт.

5

A46974

RING, SNAP

RING - snap, external

4шт.

6

A49263

GEAR

- low driver (24 teeth)

1шт.

7

A49264

GEAR

- driven (30 teeth)

1шт.

10

A49296

SHIM

- bearing, 0.010 inch (0.254 mm)

1шт.

10

A49297

SHIM

- bearing, 0.013 inch (0.33 mm)

1шт.

10

A49298

SHIM

- bearing, 0.020 inch (0.508 mm)

1шт.

10

A49299

SHIM

- bearing, 0.016 inch (0.406 mm)

1шт.
