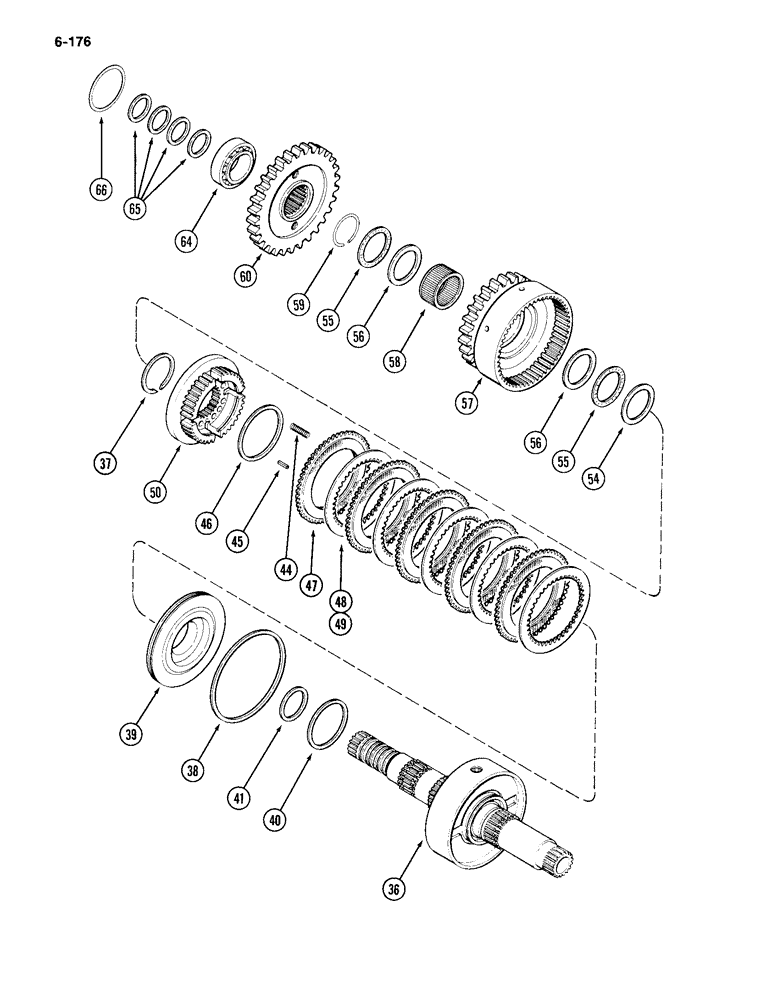

Запчасти Case IH 4994 (6-176) - LOWER 7 INCH (178 MM) CLUTCH ASSEMBLY (CONTINUED) (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 36 - 66 and 1 - 35 on Figure 6-174

1шт.

A49207

CLUTCH PACK

CLUTCH ASSEMBLY - lower 7 inch (178 mm) (Continued from Figure 6-174), Includes: Ref. 36 - 65 and 7 - 35 on Figure 6-174

1шт.

36

REF

INSTRUCTION

SHAFT - lower 7 inch (178 mm), clutch (See Figure 6-175)

1шт.

37

A46974

RING, SNAP

RING - snap - external

1шт.

38

A49166

SEALING RING

RING - sealing, piston

1шт.

39

A49187

PISTON

- clutch

1шт.

40

A49169

OIL SEAL

RING - piston

1шт.

41

A46994

OIL SEAL

RING - piston

1шт.

44

A49192

SPRING

- piston return

12шт.

45

138-114

LOCK PIN,7/32" x 1", Slotted

Pin, 7/32" x 1", Slotted

12шт.

46

A46993

OIL SEAL

RING - piston

1шт.

47

A49188

LARGE PLATE

PLATE - clutch, friction

5шт.

48

A49191

LARGE PLATE

PLATE - clutch, flat steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

49

A49189

LARGE PLATE

PLATE - clutch, coned steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

50

A49186

HUB

- clutch

1шт.

54

A49205

WASHER

- thrust, steel

1шт.

55

A49182

NEEDLE BEARING

BEARING - needle

2шт.

56

A49206

WASHER

- thrust, steel

2шт.

57

A49184

GEAR

- drive ring

1шт.

58

A49181

ROLLER CAGE BEARING,2.5" ID x 2.87" OD

BEARING - roller

1шт.

59

A49171

OIL SEAL

RING - snap, external

1шт.

60

A49209

GEAR

- driven

1шт.

64

A49179

TAPERED BEARING,2.16" ID x 3.74" OD x 1.14"

BEARING ASSEMBLY - roller

1шт.

65

A46996

SEALING RING

RING - sealing

4шт.

66

A49296

SHIM

- bearing, 0.010 inch (0.254 mm)

1шт.

66

A49297

SHIM

- bearing, 0.013 inch (0.33 mm)

1шт.

66

A49298

SHIM

- bearing, 0.020 inch (0.508 mm)

1шт.

66

A49299

SHIM

- bearing, 0.016 inch (0.406 mm)

1шт.
