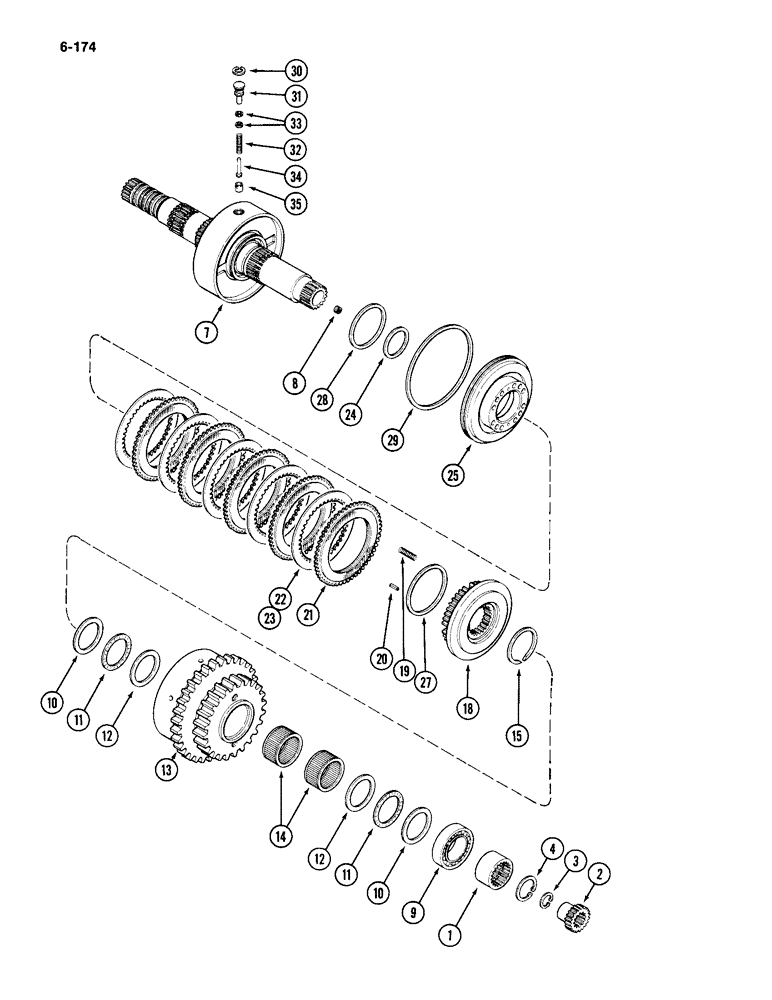

Запчасти Case IH 4994 (6-174) - LOWER 7 INCH (178 MM) CLUTCH ASSEMBLY (06) - POWER TRAIN

A179322

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 35 and 36 - 66 on Figure 6-176

1шт.

1

A49289

- pump

1шт.

2

A49324

ADAPTER

- pump drive

1шт.

3

D41419

RING

- snap, internal

1шт.

4

A36277

SNAP RING,1.125", Int, #112

1шт.

A49207

CLUTCH PACK

CLUTCH ASSEMBLY - lower 7 inch (178 mm), Includes: Ref. 7 - 35 and 36 - 65 on Figure 6-176

1шт.

7

A49210

SHAFT

- lower clutch

1шт.

8

A49170

PLUG

- pipe, orifice

2шт.

9

A49179

TAPERED BEARING,2.16" ID x 3.74" OD x 1.14"

BEARING - roller

1шт.

10

A49205

WASHER

- thrust, steel

2шт.

11

A49182

NEEDLE BEARING

BEARING - needle

2шт.

12

A49206

WASHER

- thrust, steel

2шт.

13

A49208

GEAR, RING

GEAR - drive ring

1шт.

14

A49181

ROLLER CAGE BEARING,2.5" ID x 2.87" OD

BEARING - roller

2шт.

15

A46974

RING, SNAP

RING - snap, external

1шт.

18

A49186

HUB

- clutch

1шт.

19

A49192

SPRING

- piston return

12шт.

20

138-114

LOCK PIN,7/32" x 1", Slotted

Pin, 7/32" x 1", Slotted

12шт.

21

A49188

LARGE PLATE

PLATE - clutch, friction

5шт.

22

A49189

LARGE PLATE

PLATE - clutch, coned steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

23

A49191

LARGE PLATE

PLATE - clutch, flat steel

1шт.

A total of five steel plates used in combination of coned and flat plates is to be used for required clearance.

1шт.

24

A46994

OIL SEAL

RING - piston

1шт.

25

A49187

PISTON

- clutch

1шт.

27

A46993

OIL SEAL

RING - piston

1шт.

28

A49169

OIL SEAL

RING - piston

1шт.

29

A49166

SEALING RING

RING - sealing, piston

1шт.

A49385

VALVE

KIT - dump, clutch, Includes: Ref. 30 - 35

2шт.

30

NSS

NOT SOLD SEPARAT

RING - snap (Reference No. D28157)

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Reference No. A49195)

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - valve (Reference No. A49193)

1шт.

33

NSS

NOT SOLD SEPARAT

SHIM - sleeve, 0.079 inch (0.020 mm) (Reference No. A49202)

1шт.

33

NSS

NOT SOLD SEPARAT

SHIM - sleeve, 0.039 inch (0.010 mm) (Reference No. A49203)

1шт.

34

NSS

NOT SOLD SEPARAT

STEM - valve (Reference No. A49194)

1шт.

35

NSS

NOT SOLD SEPARAT

VALVE - feedback (Reference No. A49294)

1шт.
